Power Windows do not Operate at All: Wiring Diagram

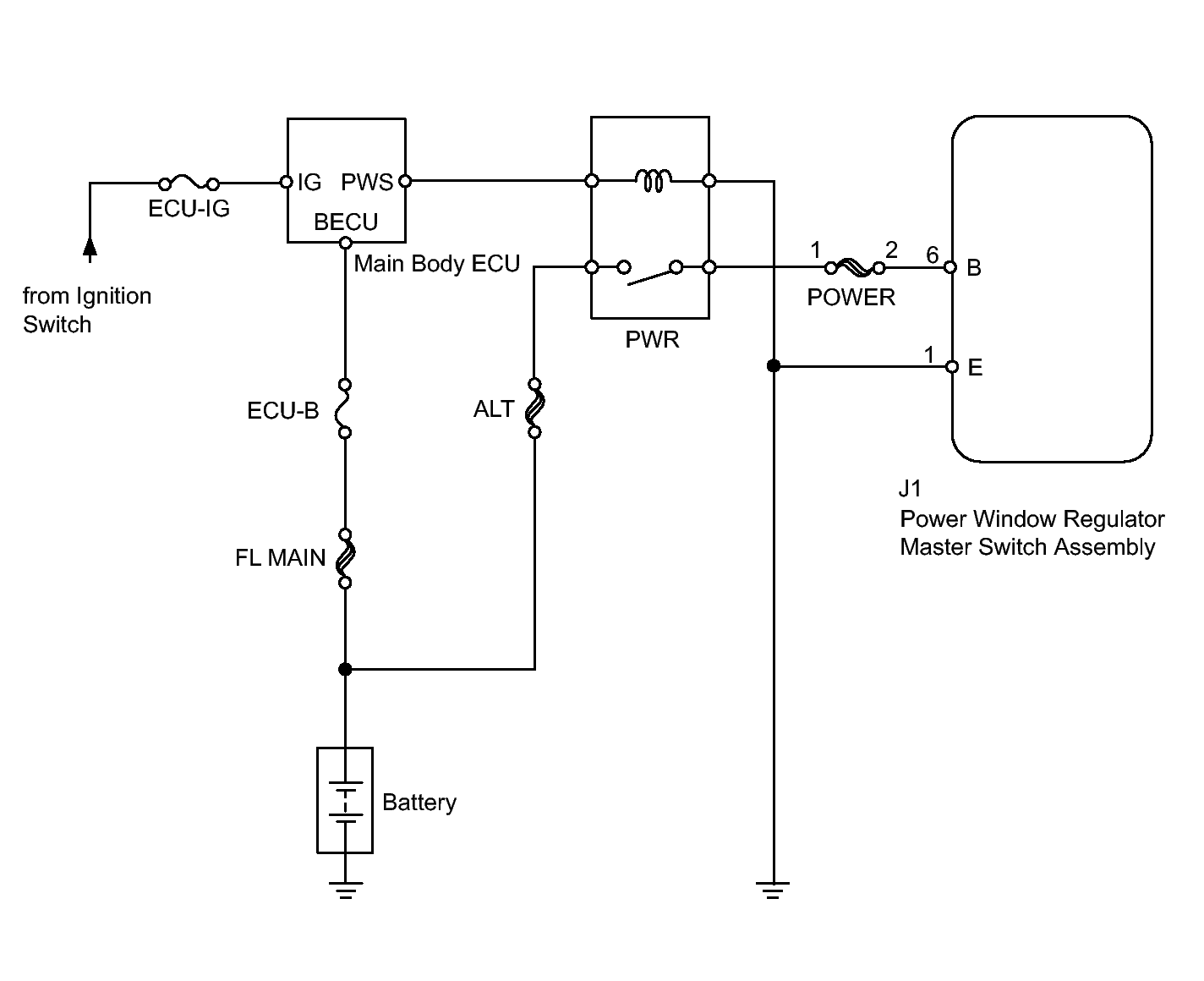

Fig 1: Power Window Regulator Master Switch- Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
