Engine Immobilizer System (w/o Smart Key System)
›
Notes
Engine Immobilizer System (w/o Smart Key System): Notes

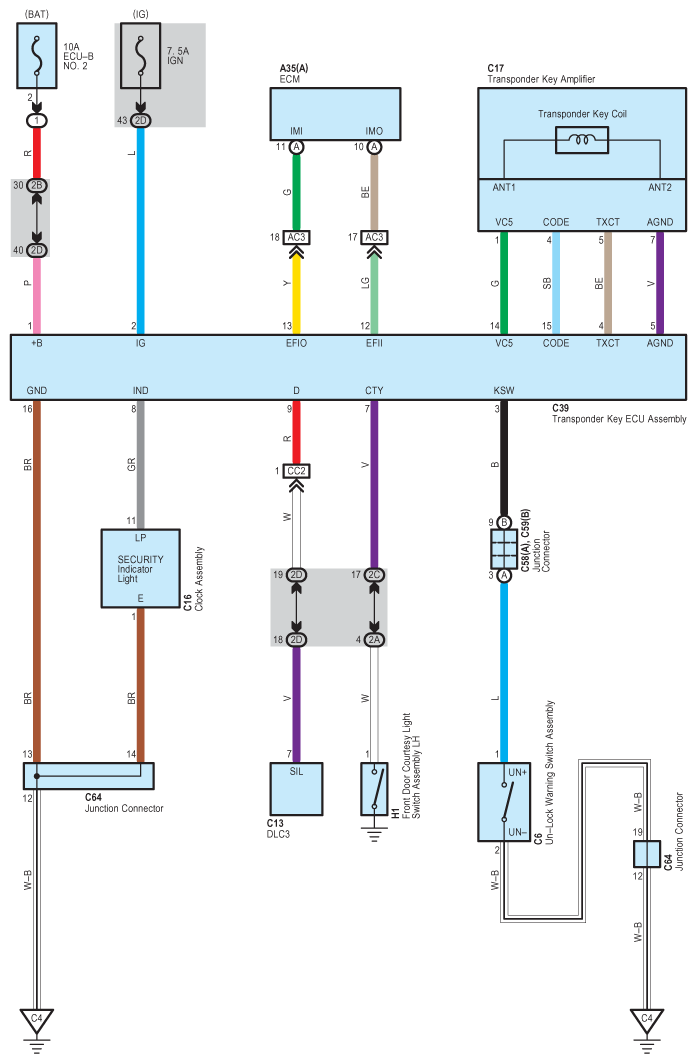

Fig 1: Engine Immobilizer System (W/O Smart Key System) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
