Crankshaft Position Sensor: Removal: Removal

  1. REMOVE REAR ENGINE UNDER COVER RH  . Refer to REMOVAL - Step 2
  2. REMOVE CRANKSHAFT POSITION SENSOR

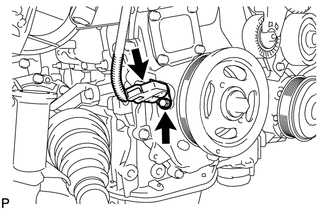

    Fig 1: Locating Bolt And Sensor
    GTY314654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
