Shift Lever: Components: Illustration

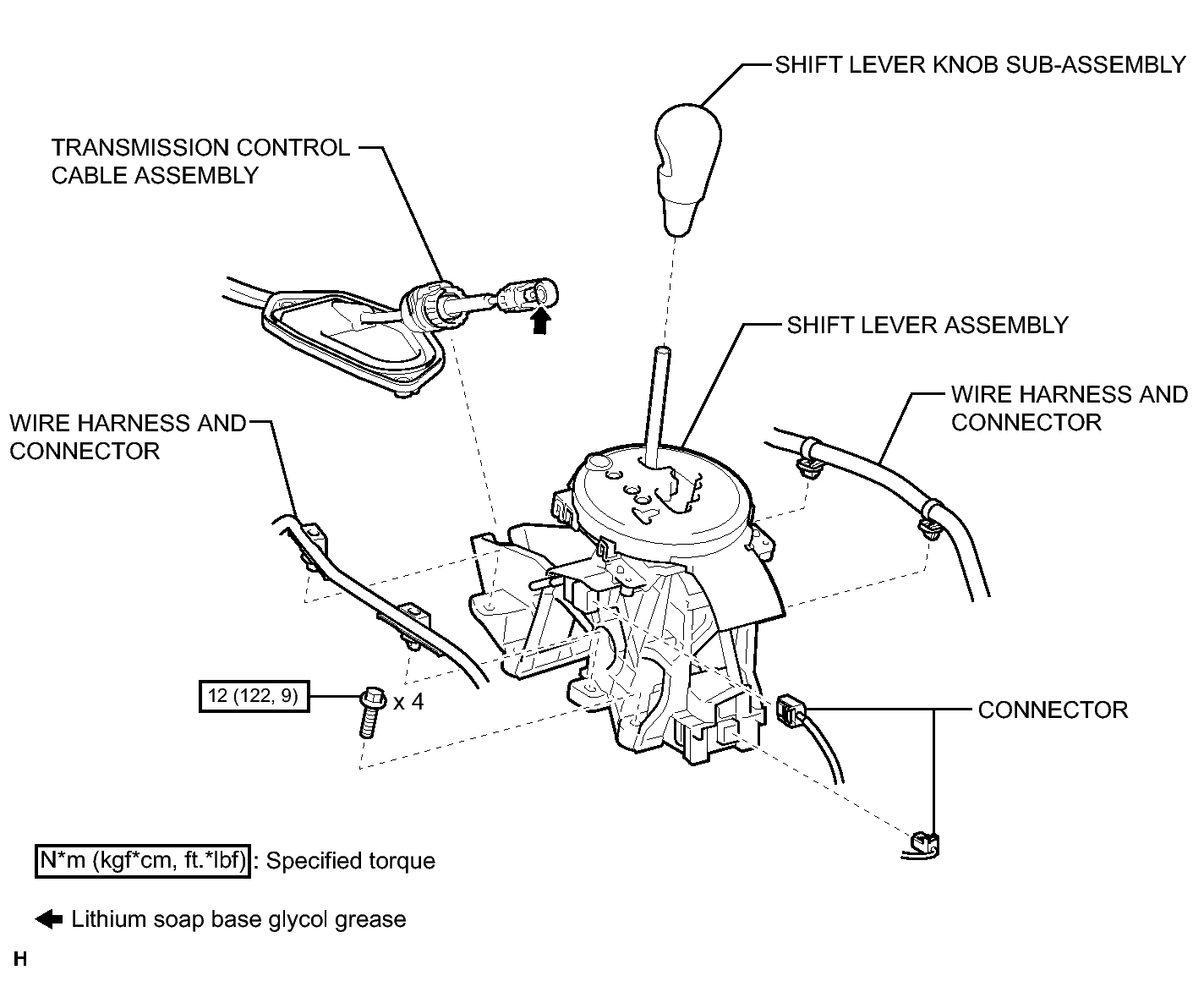

Fig 1: Shift Lever Replacement Components W/ Torque Specifications (1 Of 2)
GTY311598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

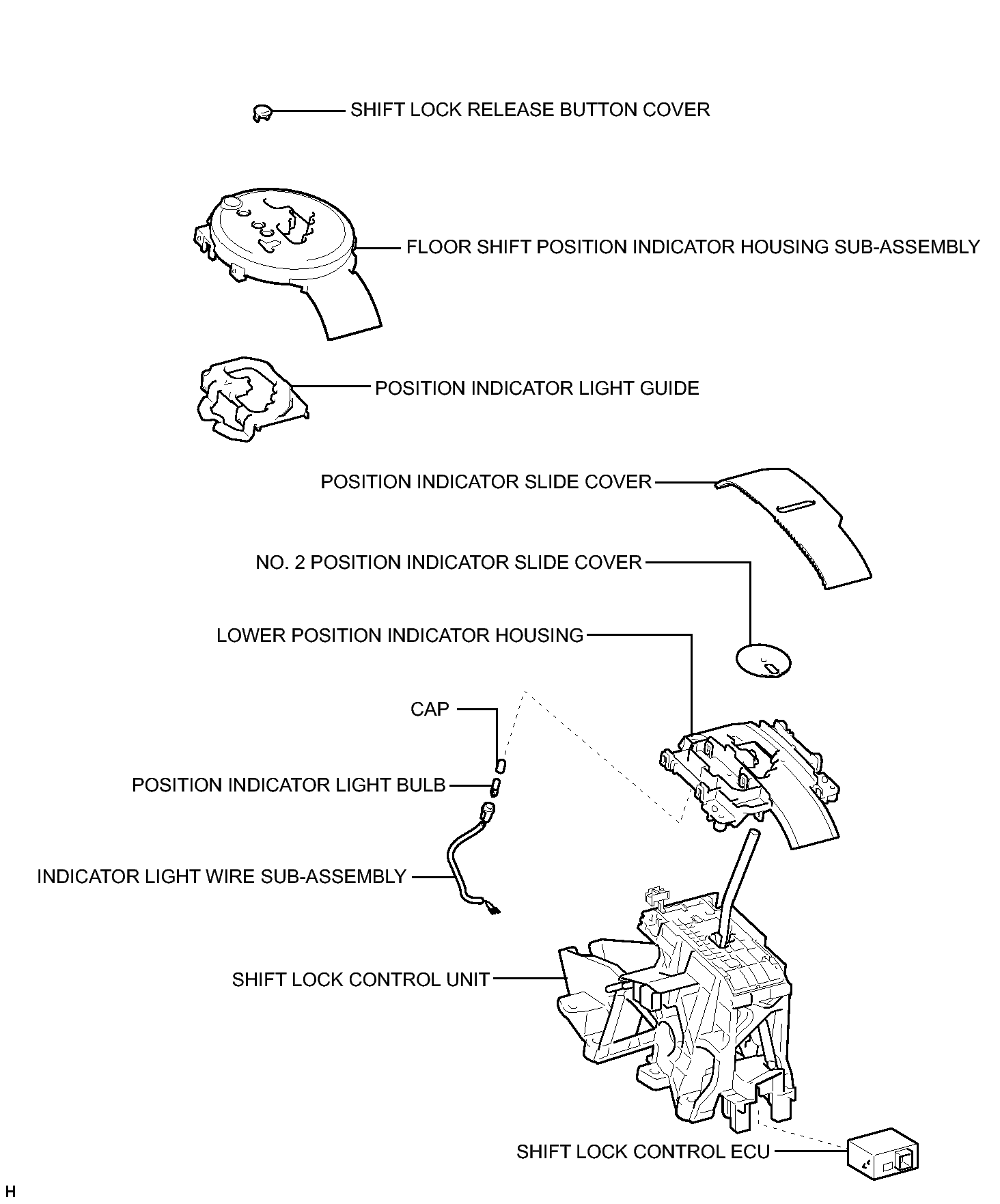

Fig 1: Shift Lever Replacement Components (2 Of 2)
GTY311346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
