Valve Body Assembly: Components: Illustration

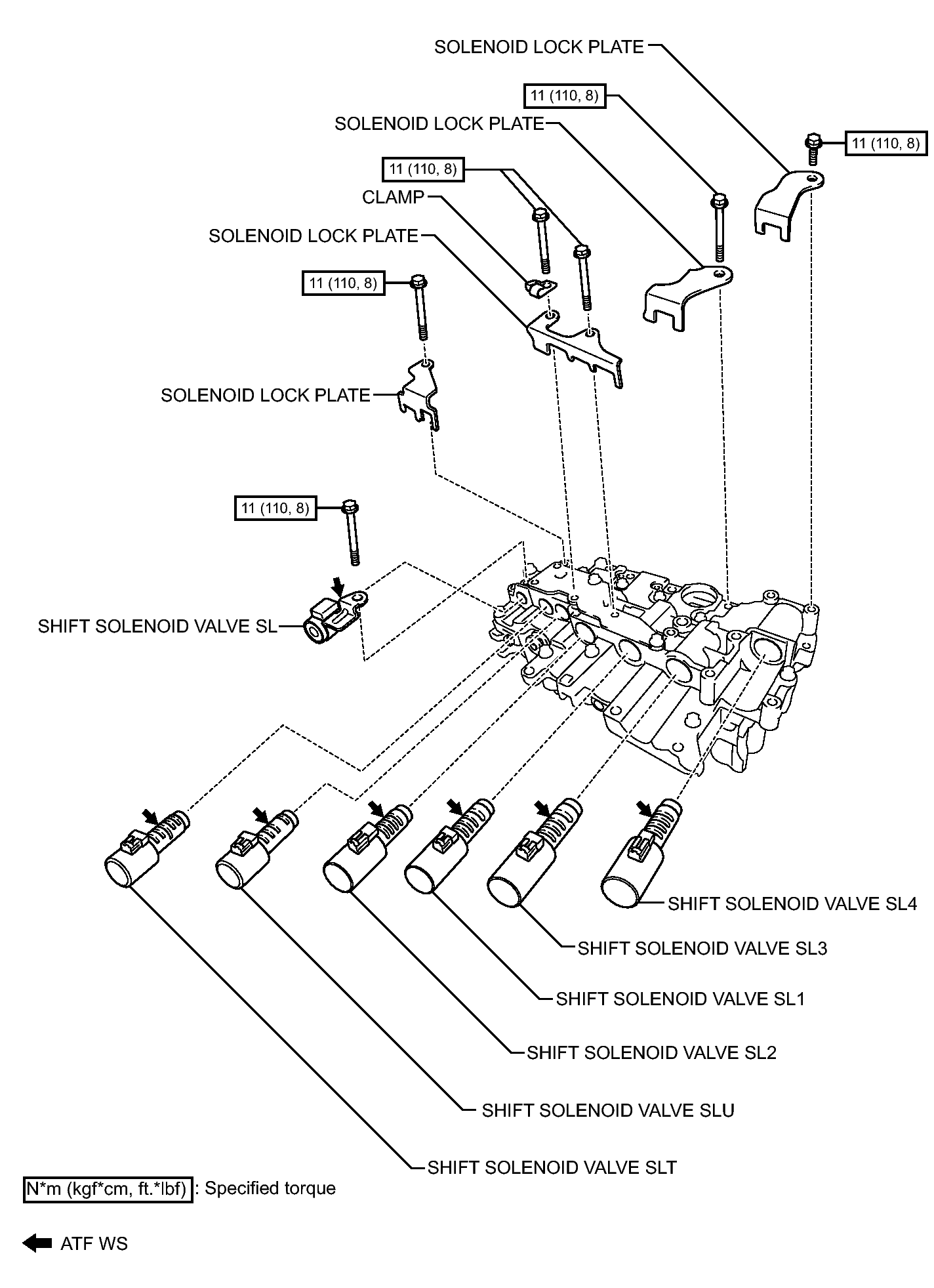

Fig 1: Valve Body Assembly Replacement Components W/ Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

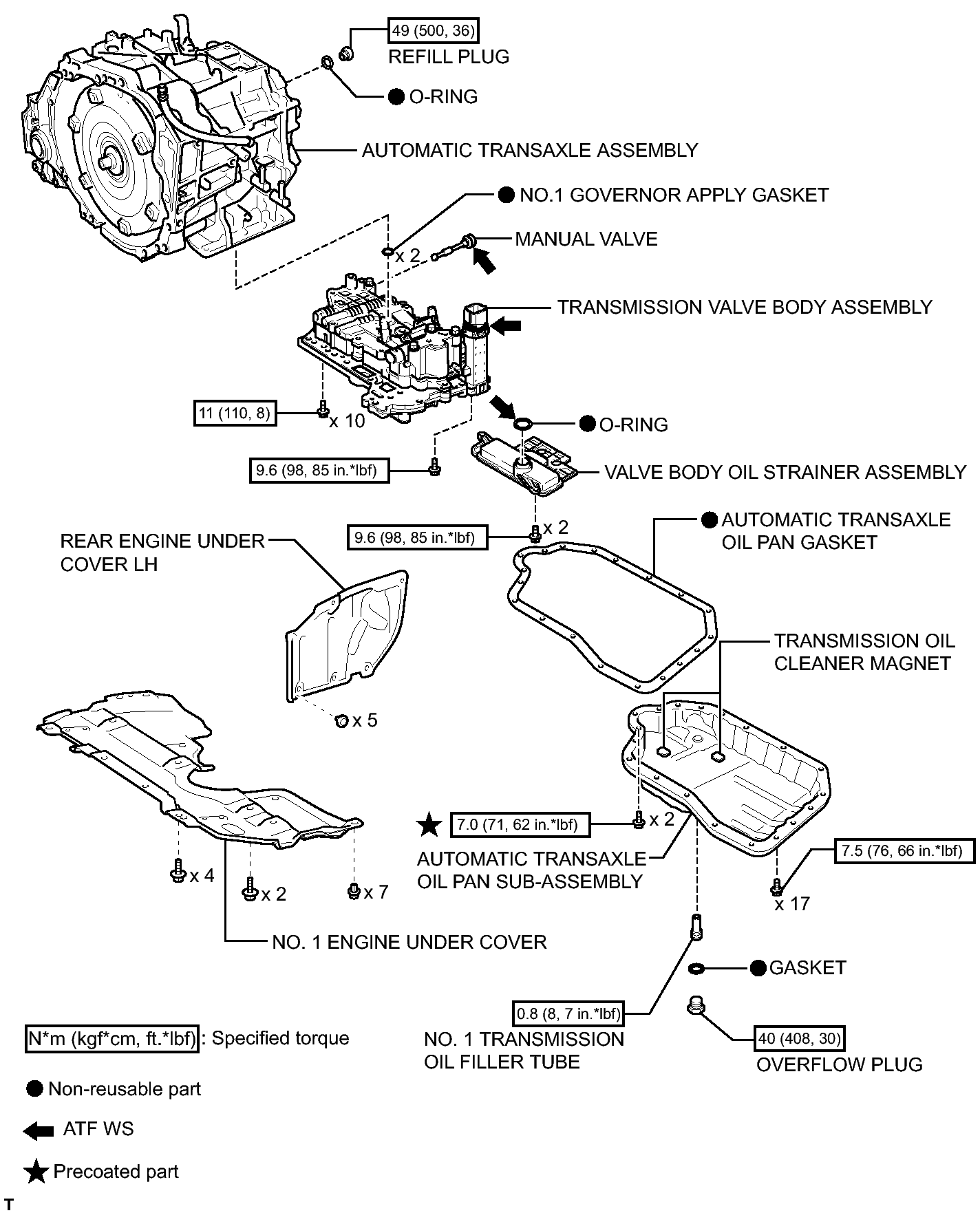

Fig 1: Valve Body Assembly Replacement Components W/ Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

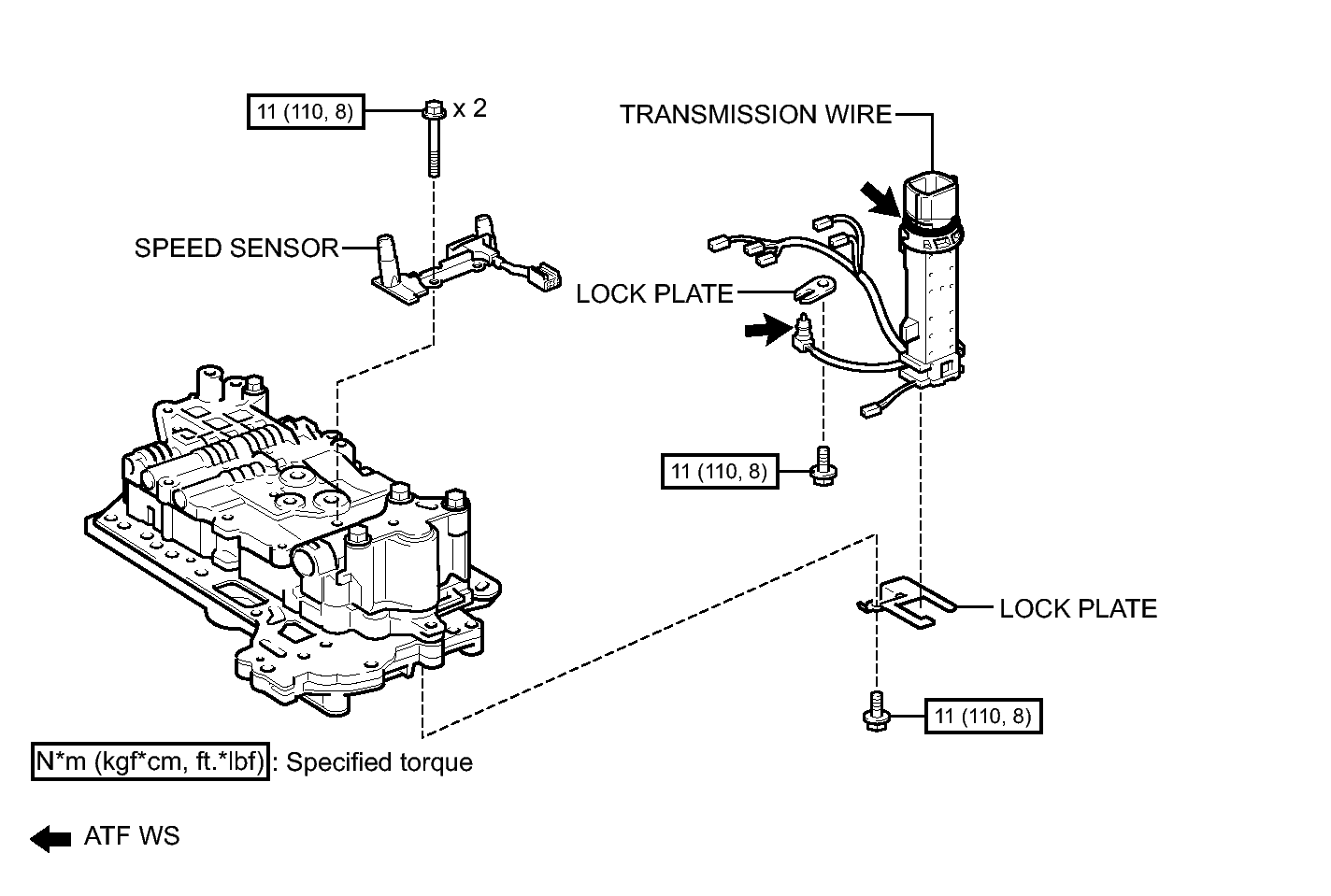

Fig 1: Valve Body Assembly Replacement Components W/ Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
