System Diagram

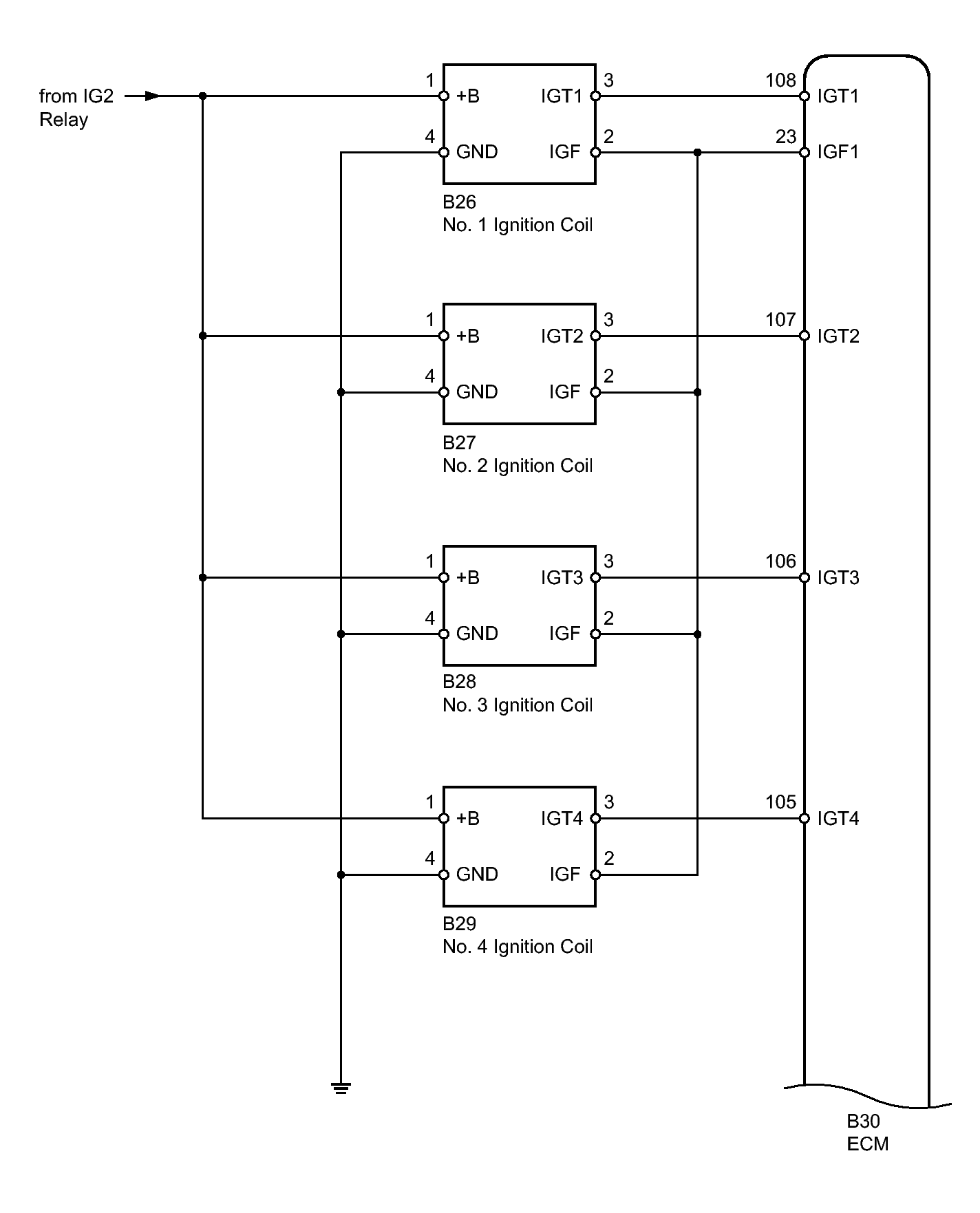

Fig 1: Ignition System Wiring Diagram (1 Of 2)
GTY310132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

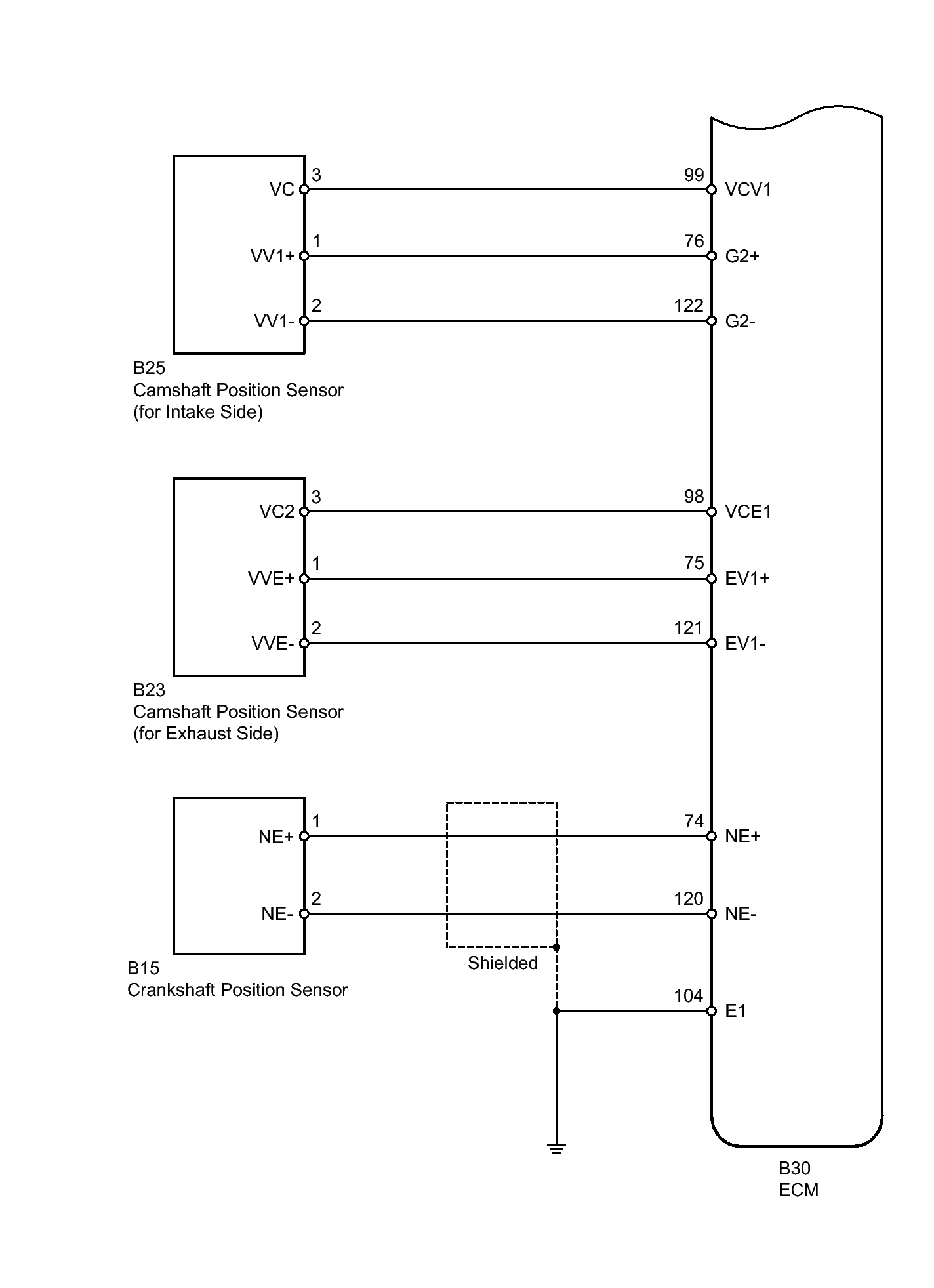

Fig 2: Ignition System Wiring Diagram (2 Of 2)
GTY313783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
