Power Window Master Switch: Components: Illustration

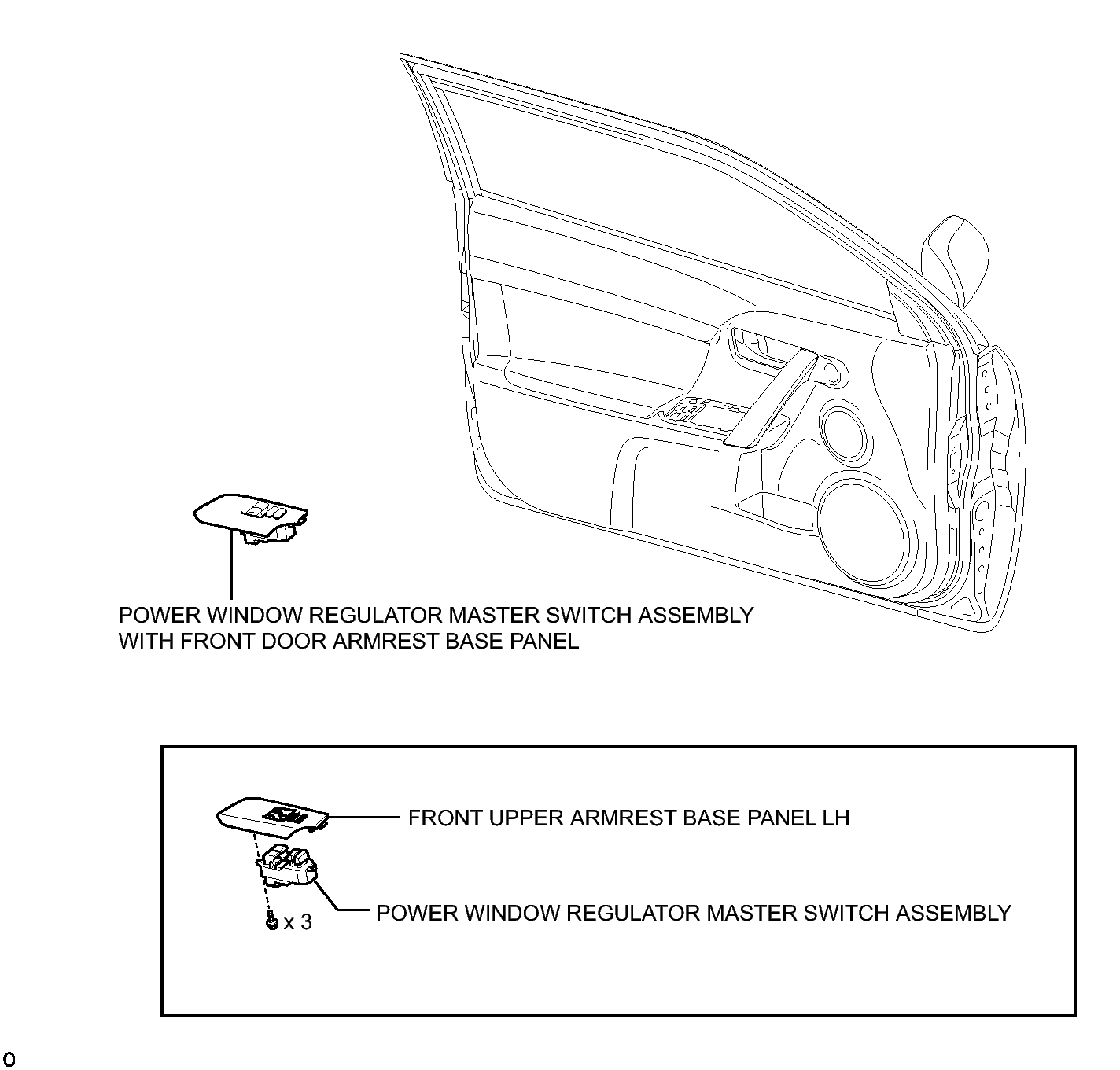

Fig 1: Identifying Power Window Master Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
