System Diagram

Fig 1: SFI System - Circuit Diagram (1 Of 3)
GTY161024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

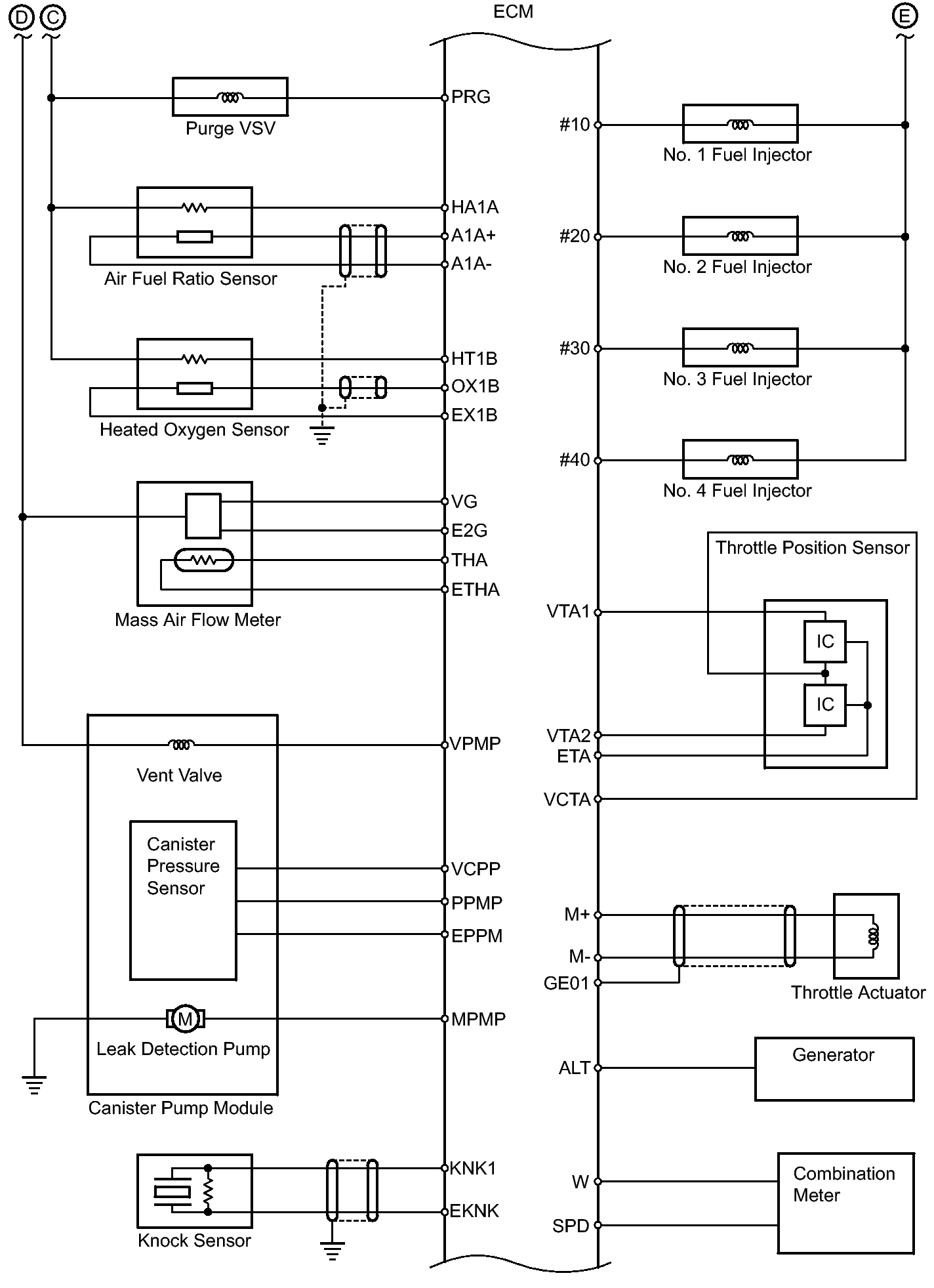

Fig 2: SFI System - Circuit Diagram (2 Of 3)
GTY310970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

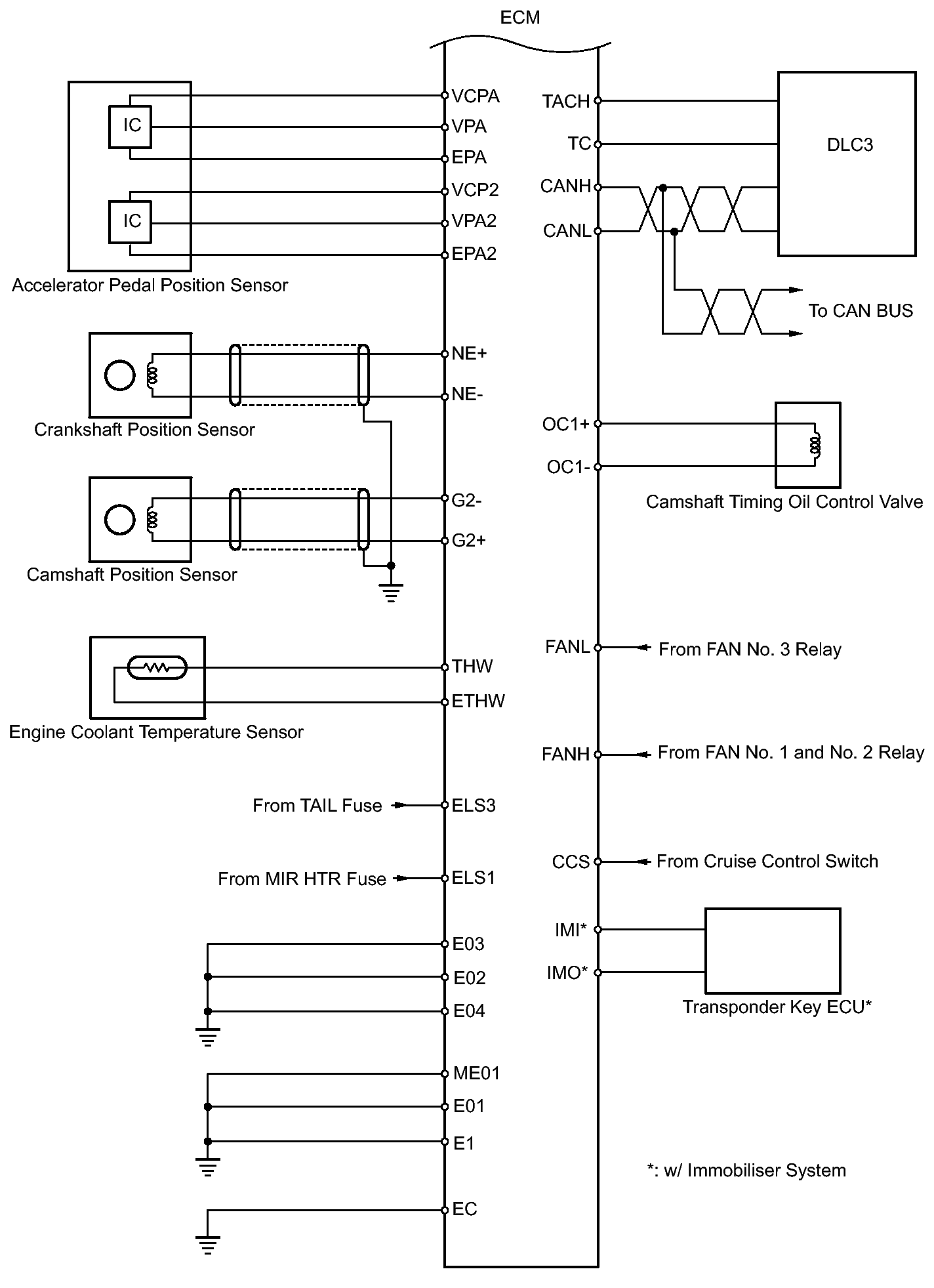

Fig 3: SFI System - Circuit Diagram (3 Of 3)
GTY311993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
