Power Mirror Control System (Inspection)
›
Power Mirror Control System
›
System Diagram
›
System Diagram
System Diagram

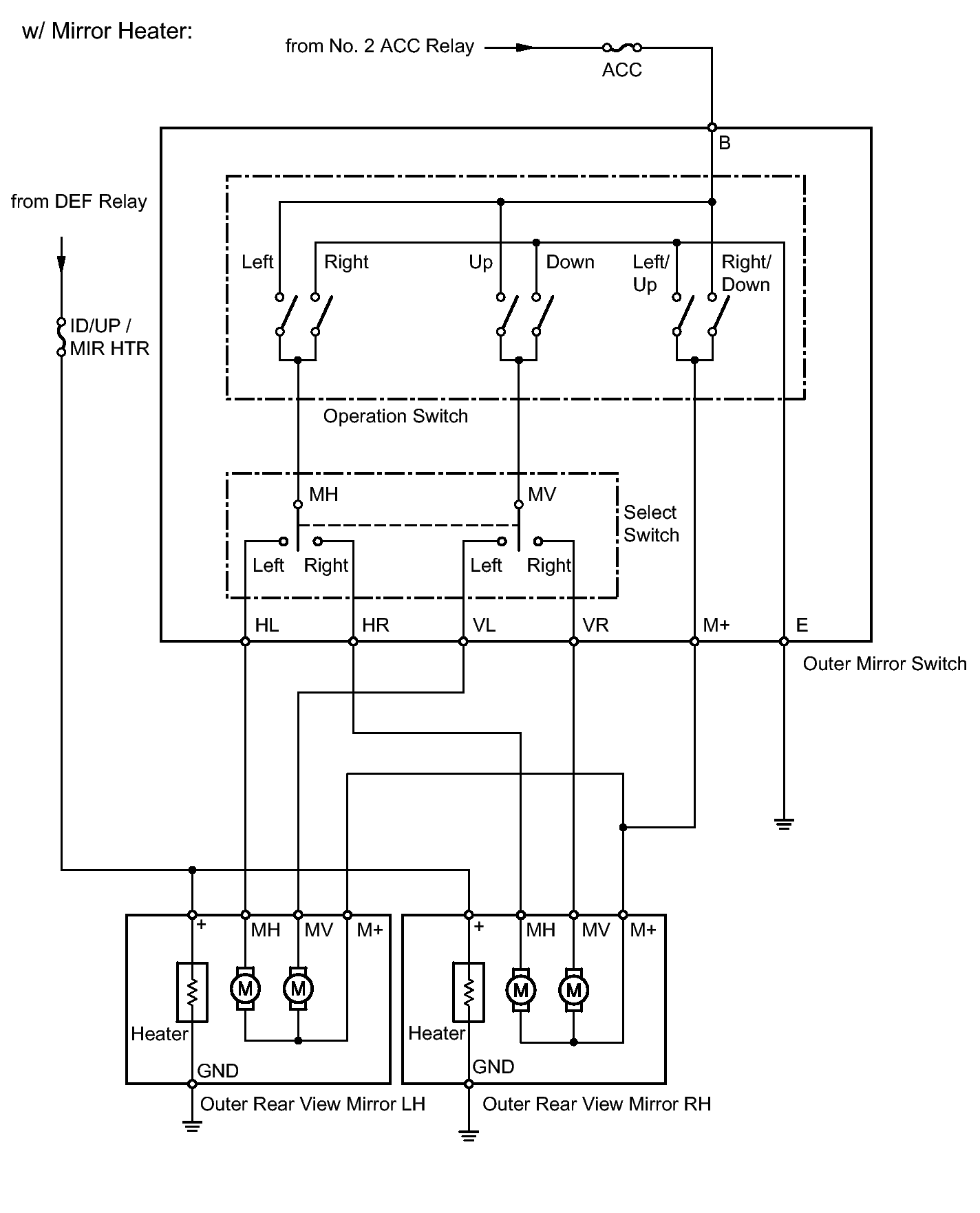

Fig 1: Power Mirror Control System Wiring Diagram (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

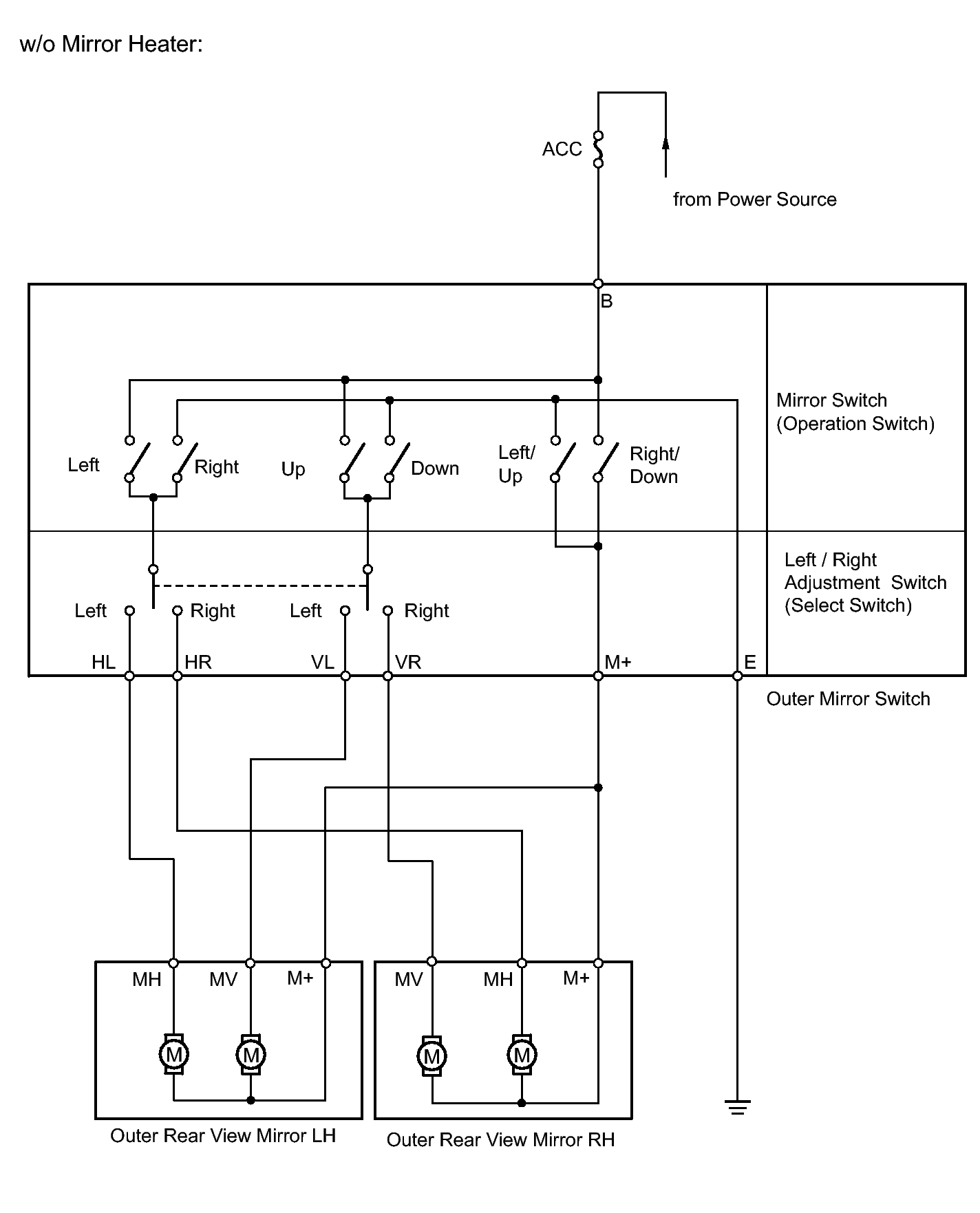

Fig 2: Power Mirror Control System Wiring Diagram (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
