OEM System Circuits: Horn: Notes

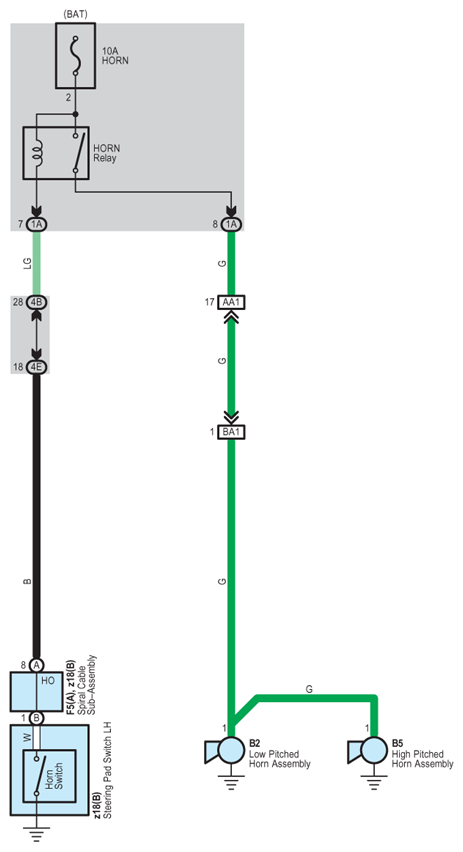

Fig 1: Horn - Circuit Diagram
G07596116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
