OEM System Circuits
›
Starting
›
Notes
OEM System Circuits: Starting: Notes

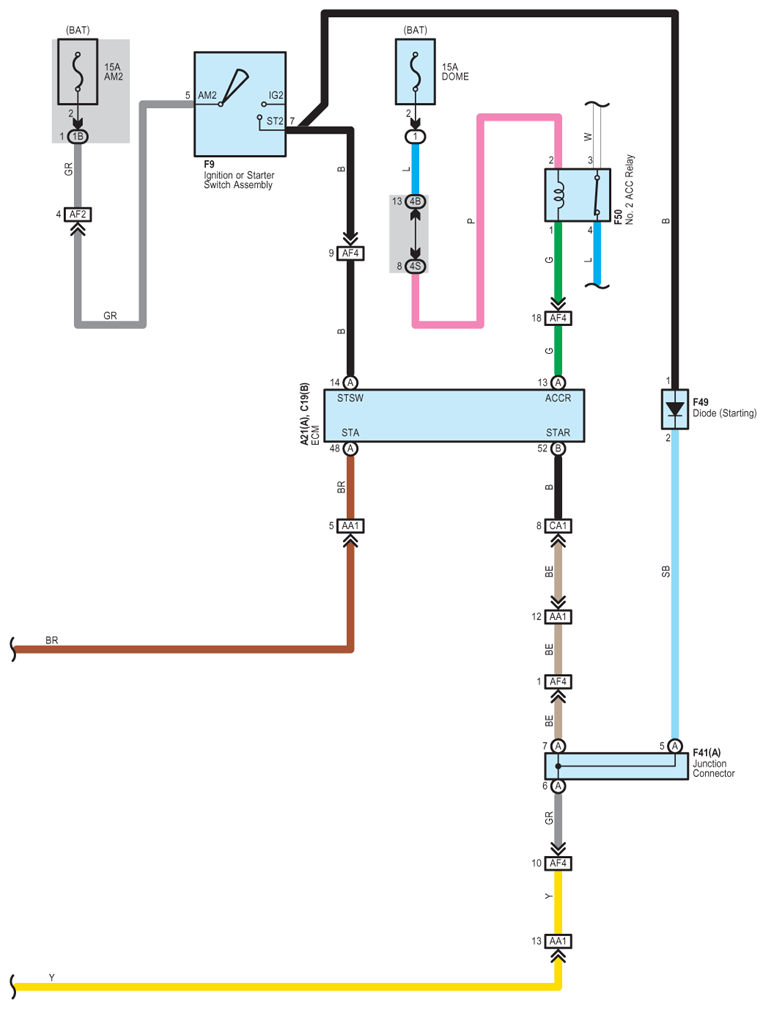

Fig 1: Starting - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

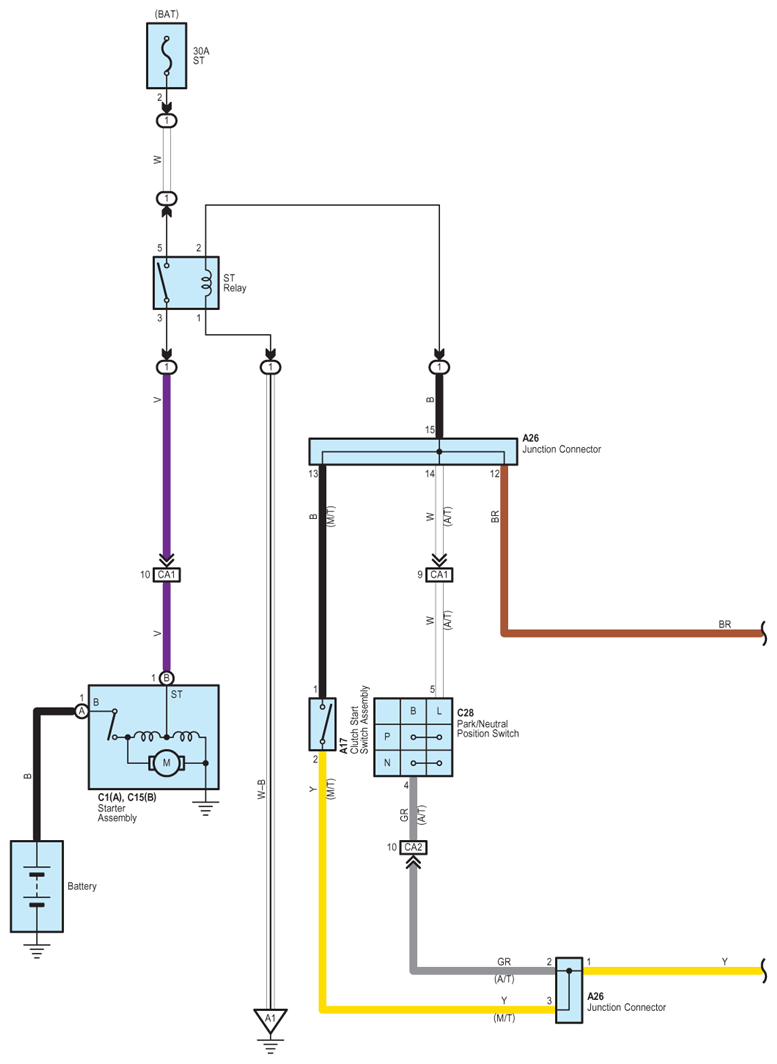

Fig 2: Starting - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
