Home › Scion › 2011 › xD Automatic › Repair and Diagnosis › Electrical › Body Electrical › OEM System Circuits › Stop Light › Notes

Stop Light: Notes

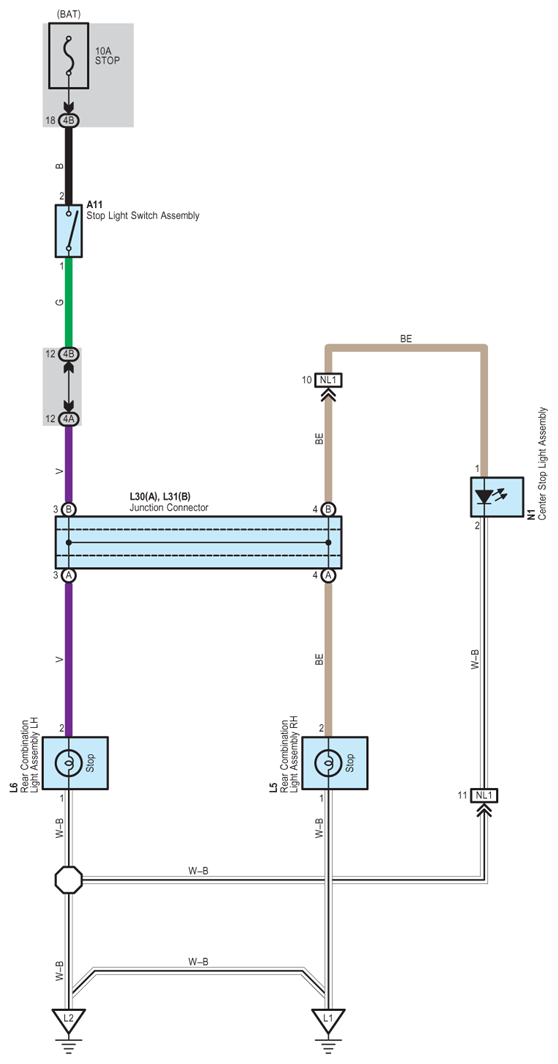

Fig 1: Stop Light - Circuit Diagram
G07596115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
