Shift Lever: Components: Illustration

Fig 1: Identifying Shift Lever Replacement Components (1 Of 2)
GTY157971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

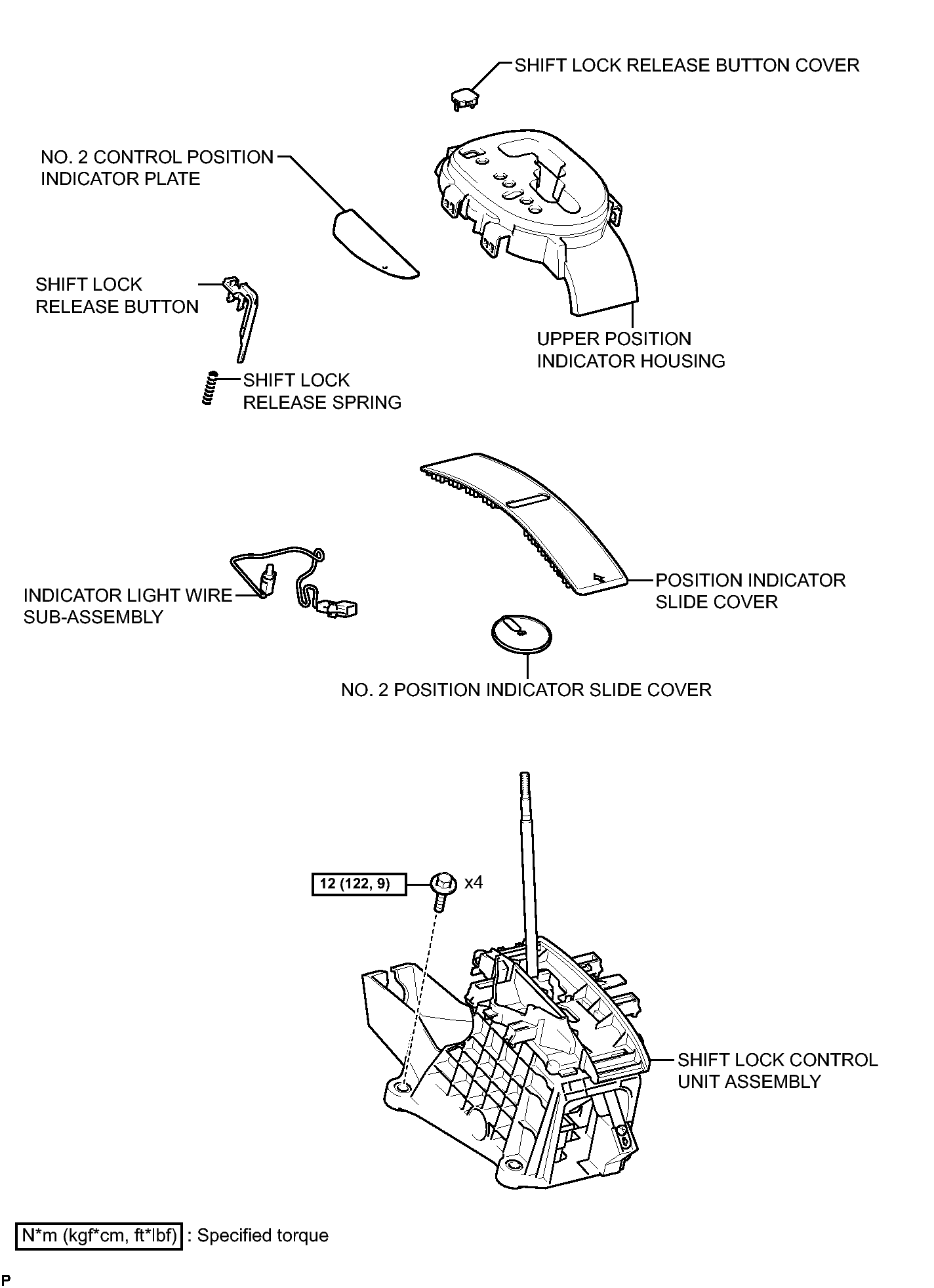

Fig 1: Identifying Shift Lever Replacement Components With Torque Specification (2 Of 2)
GTY157972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
