Back-Up Light
›
Notes
Back-Up Light: Notes

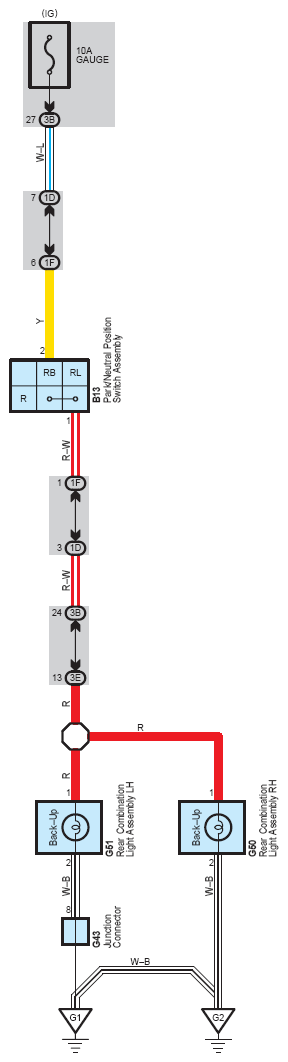

Fig 1: Back-Up Light System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
