Data Link Connector 3: Notes

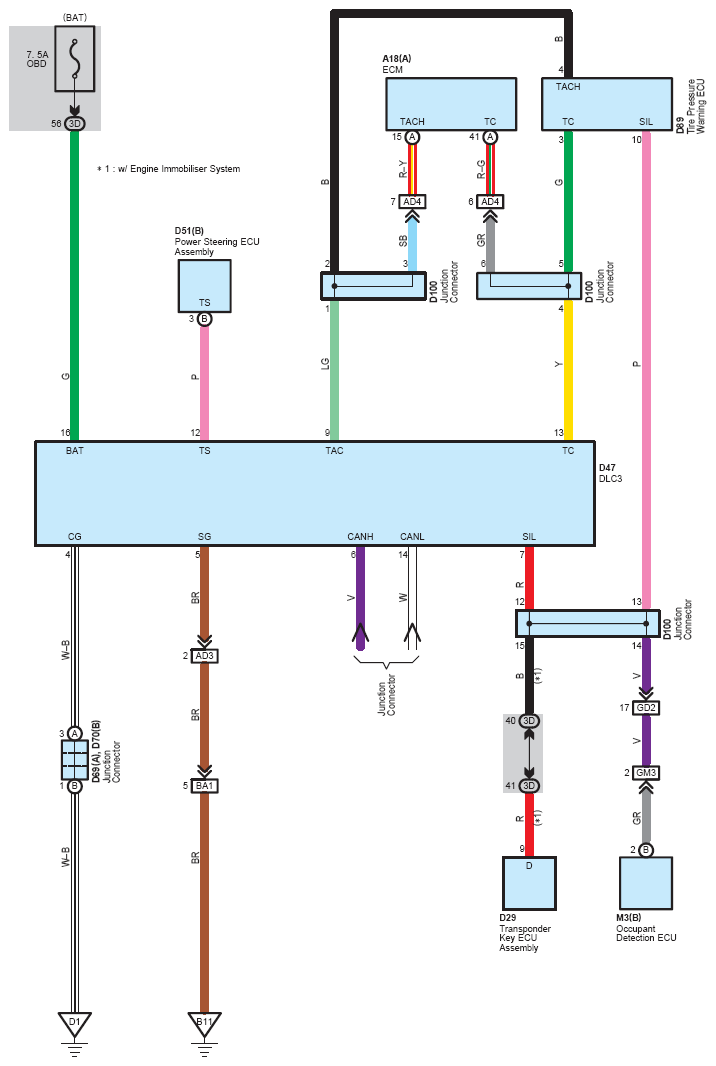

Fig 1: Data Link Connector 3 System Wiring Diagram
G08759798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
