OEM System Circuits: Ignition: Notes

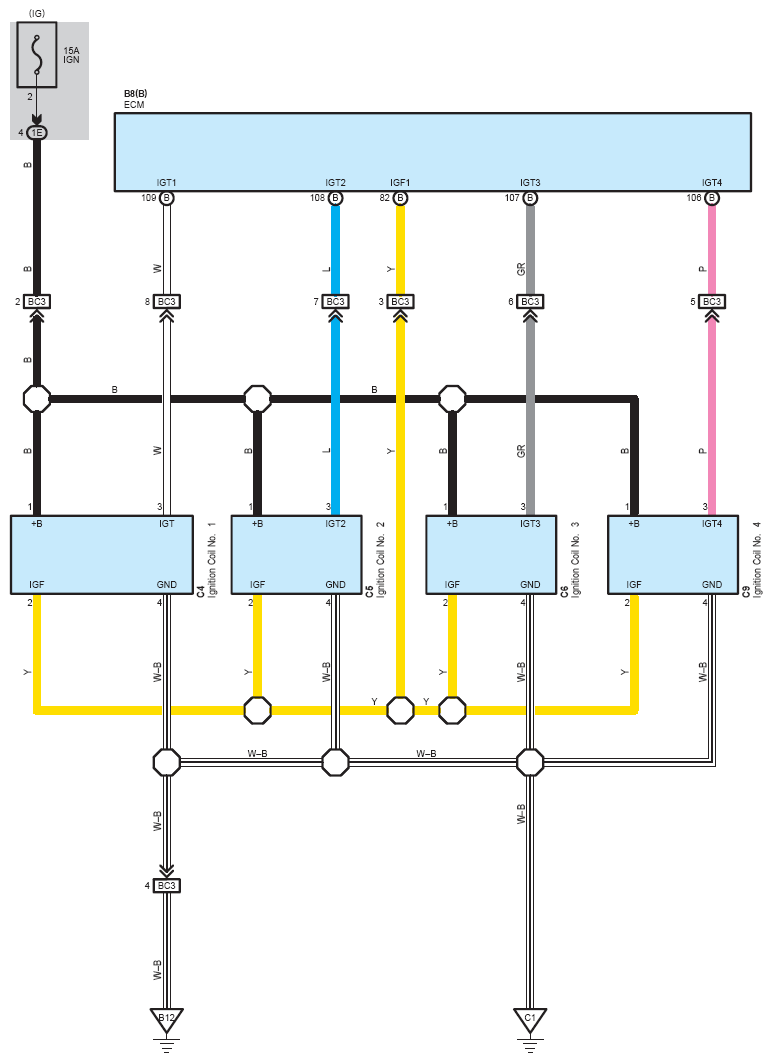

Fig 1: Ignition System Wiring Diagram
G08759782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
