Stop Light: Notes

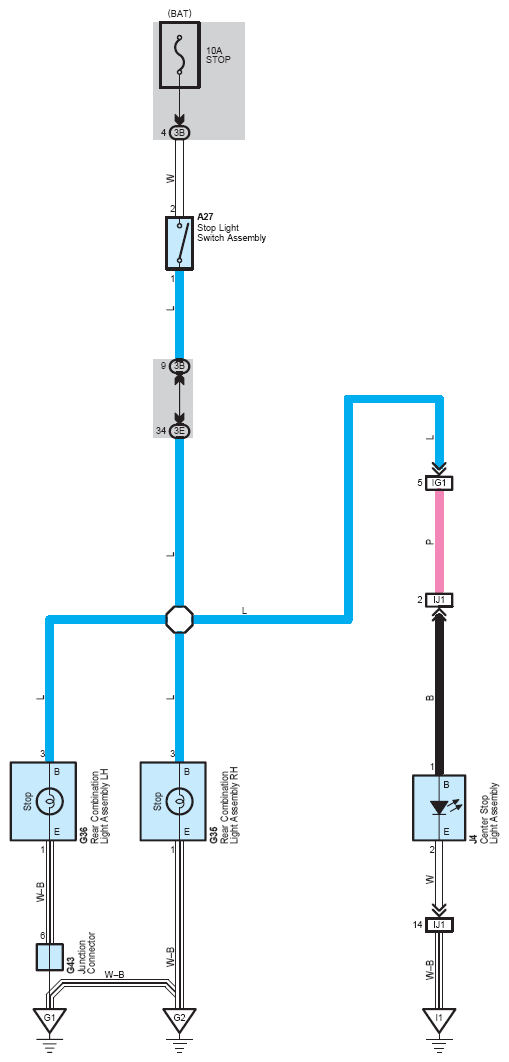

Fig 1: Stop Light System Wiring Diagram
G08759818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
