Turn Signal and Hazard Warning Light: Notes

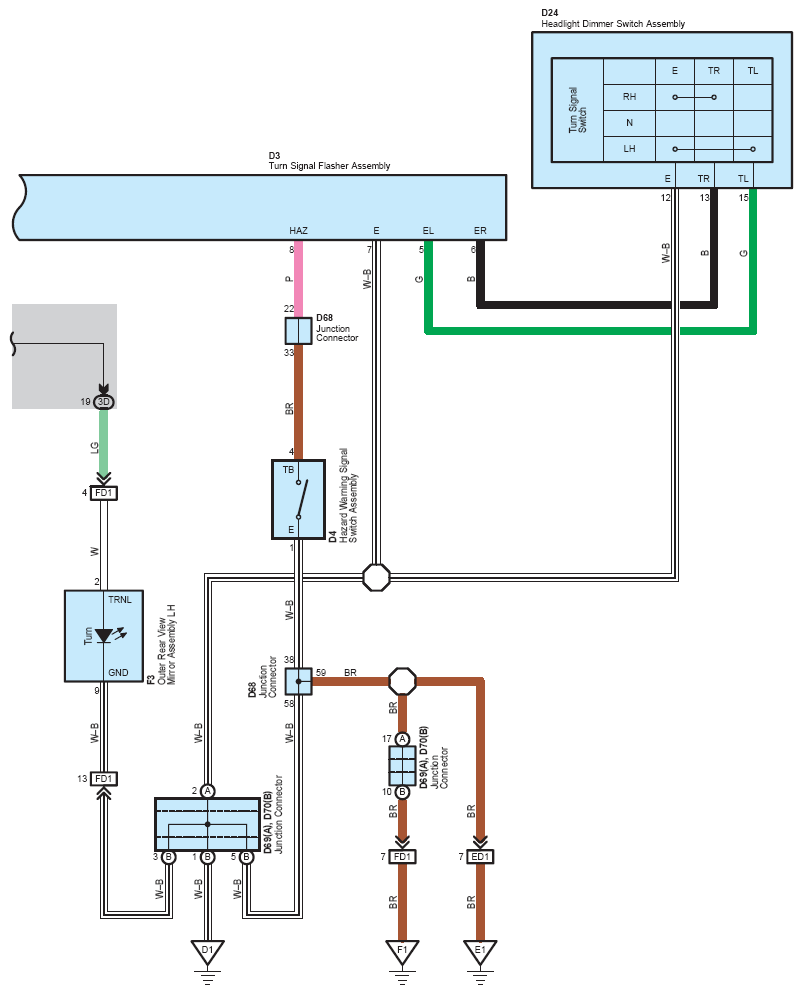

Fig 1: Turn Signal And Hazard Warning Light (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

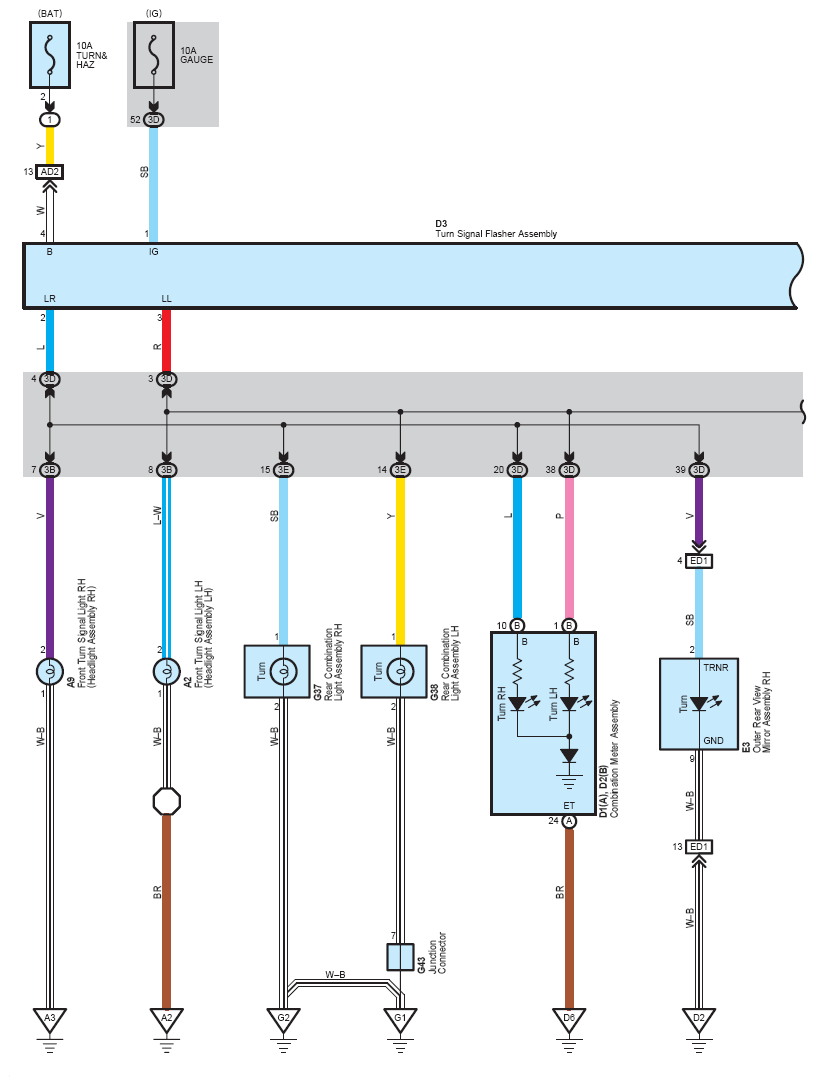

Fig 2: Turn Signal And Hazard Warning Light (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
