Intake Manifold: Components: Illustration

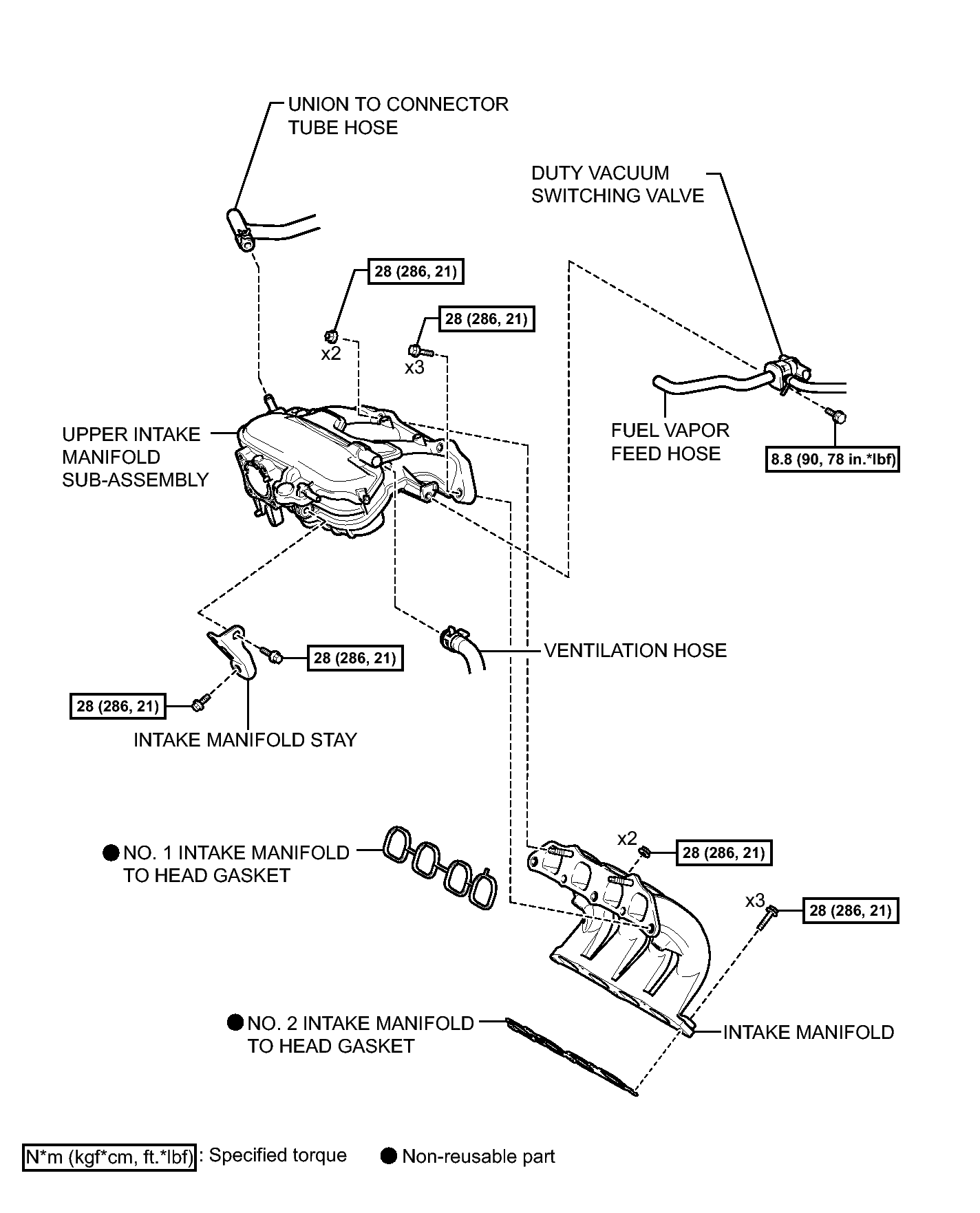

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (1 Of 2)
GTY347119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

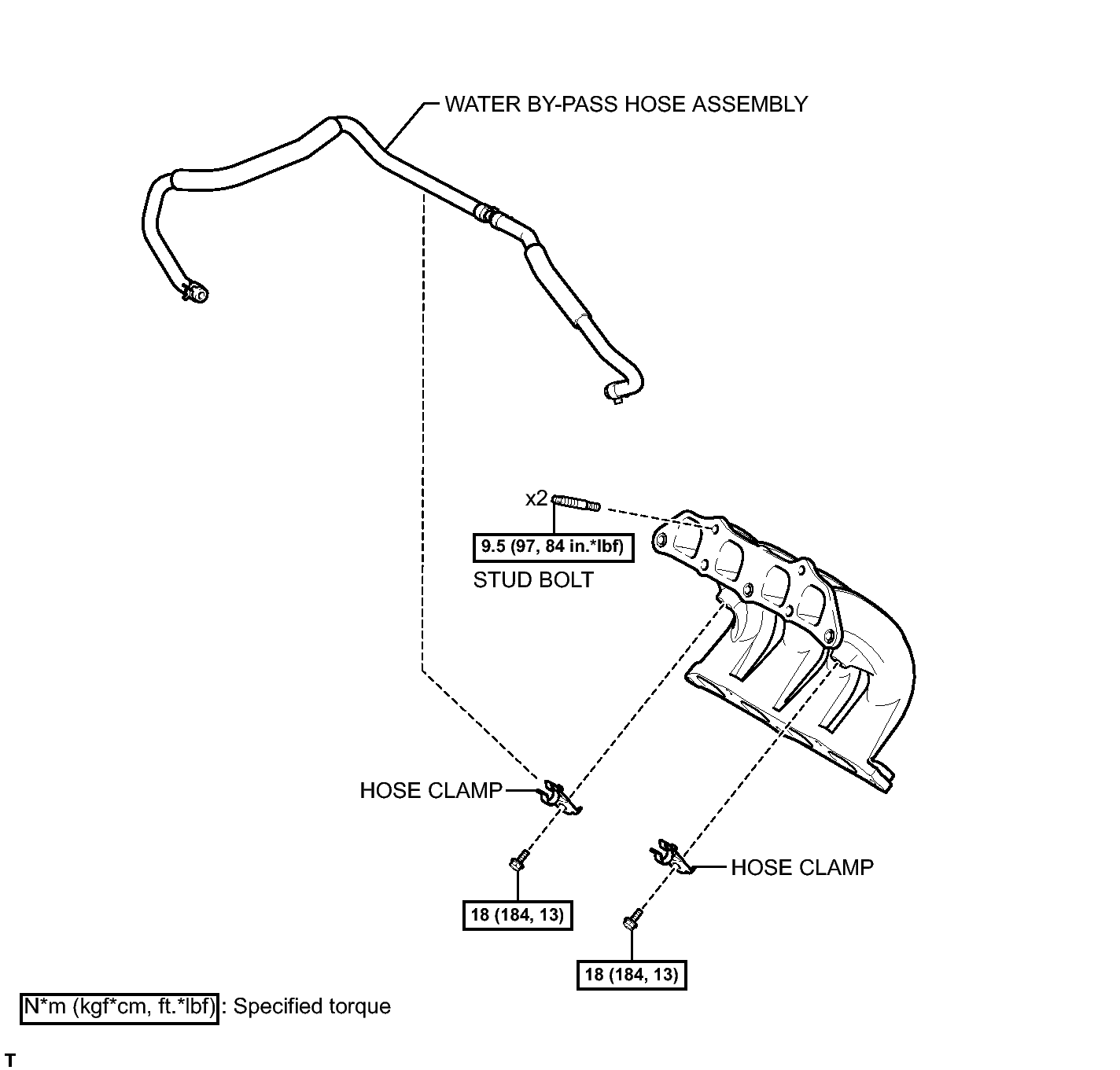

Fig 2: Identifying Intake Manifold Replacement Components With Torque Specifications (2 Of 2)
GTY345298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
