Headlight (w/ Daytime Running Light): Notes

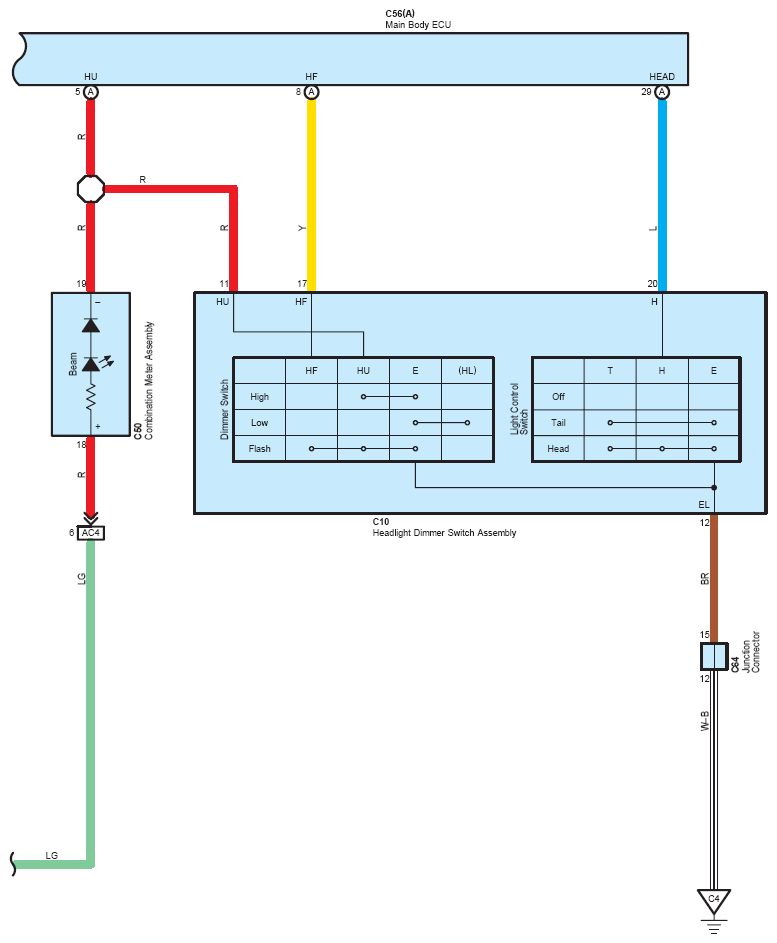

Fig 1: Headlight (w/Daytime Running Light) System Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

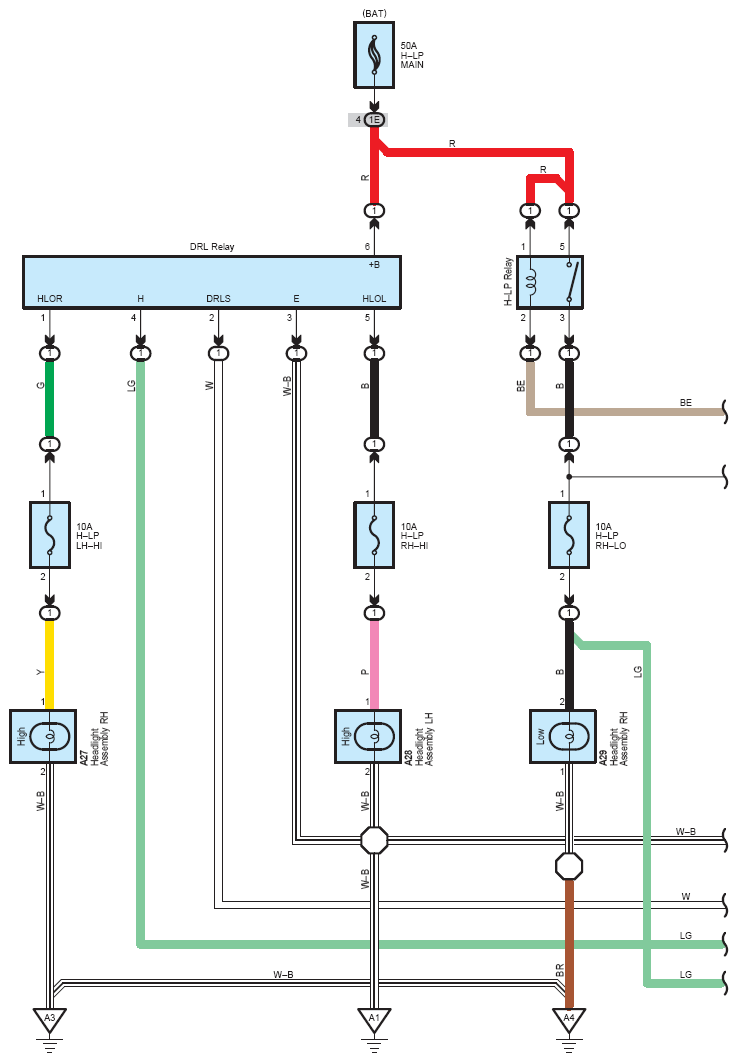

Fig 2: Headlight (w/Daytime Running Light) System Wiring Diagram (2 Of 3)

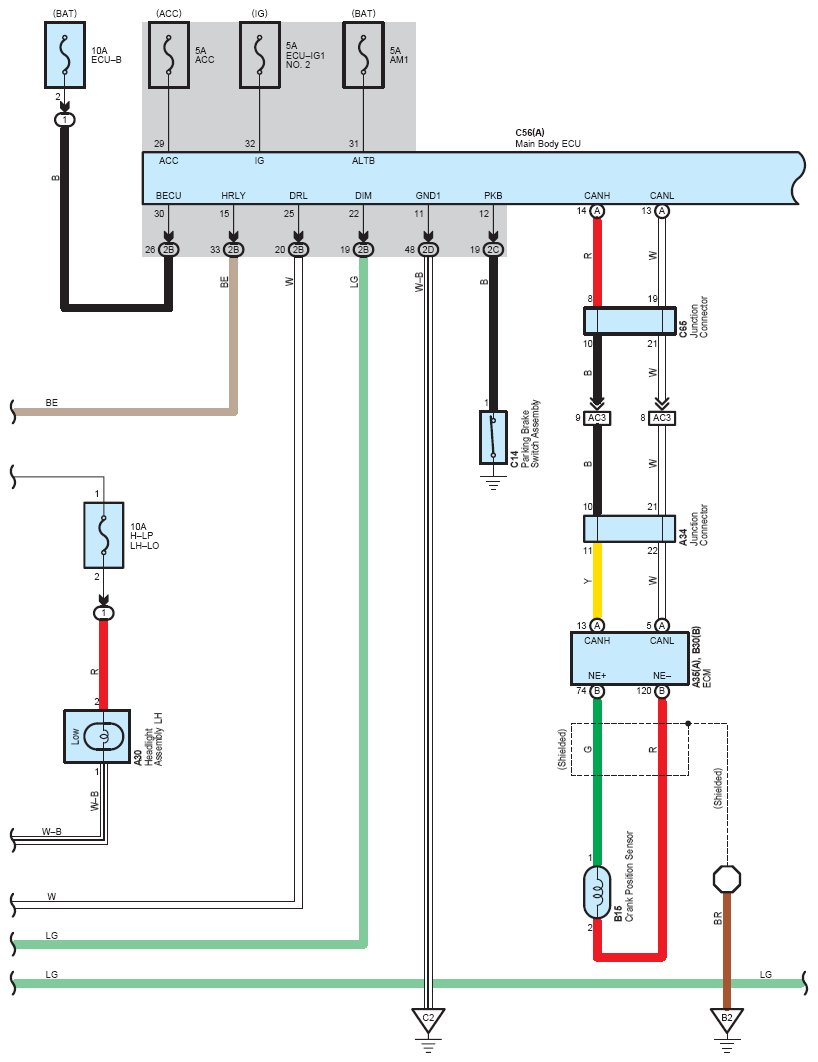

Fig 3: Headlight (w/Daytime Running Light) System Wiring Diagram (3 Of 3)
