Headlight (w/o Daytime Running Light)
›
Notes
Headlight (w/o Daytime Running Light): Notes

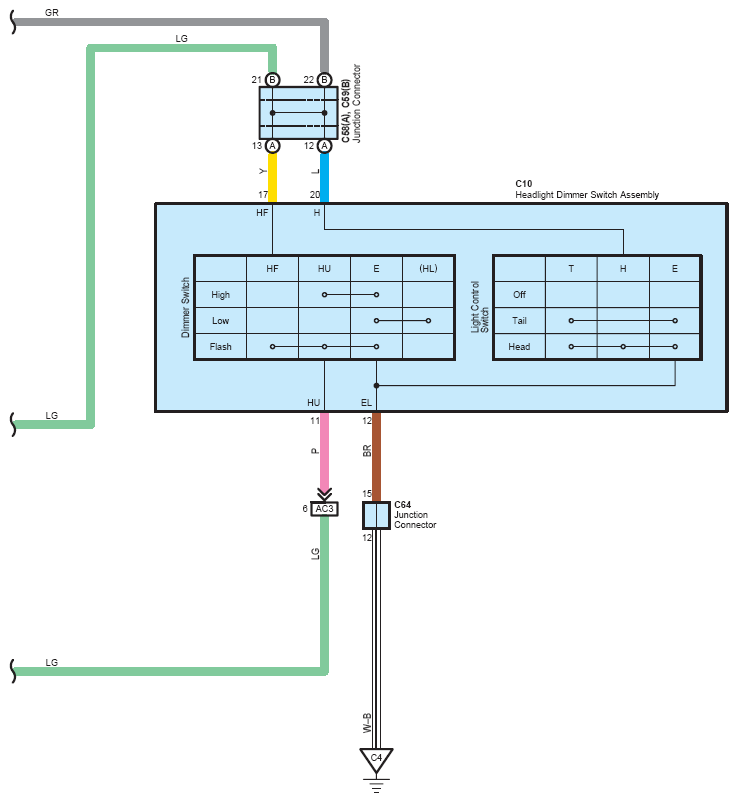

Fig 1: Headlight (w/o Daytime Running Light) System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

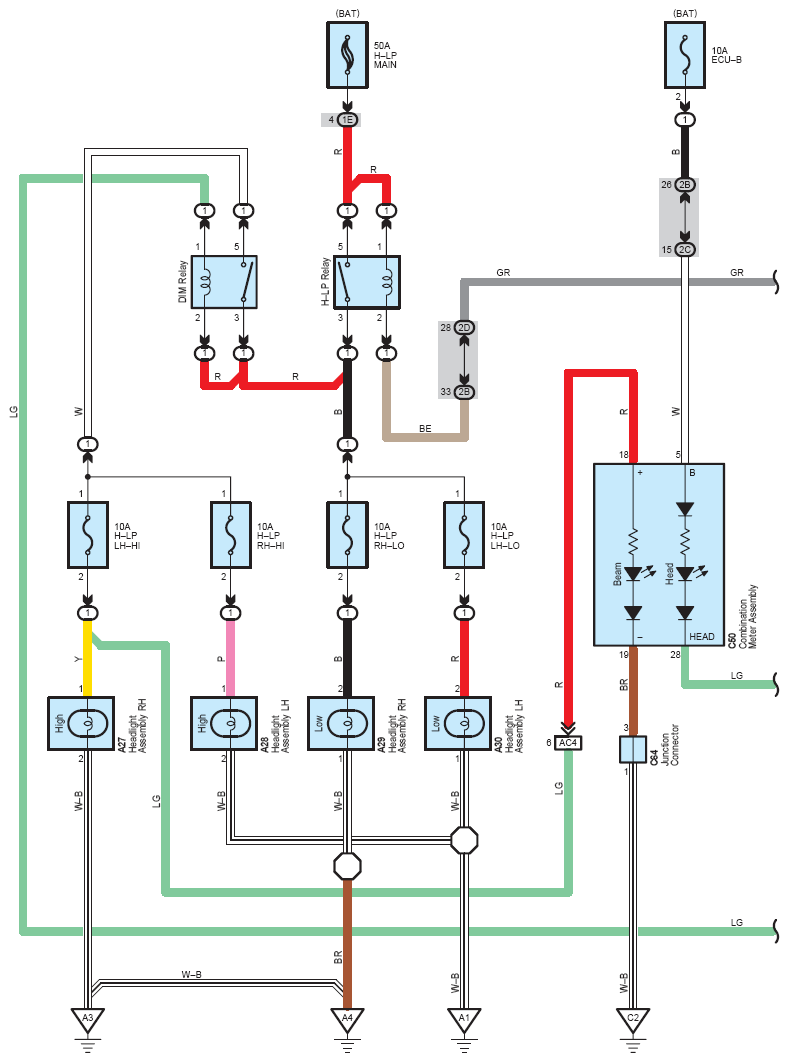

Fig 2: Headlight (w/o Daytime Running Light) System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
