Starting (w/o Smart Key System): Notes

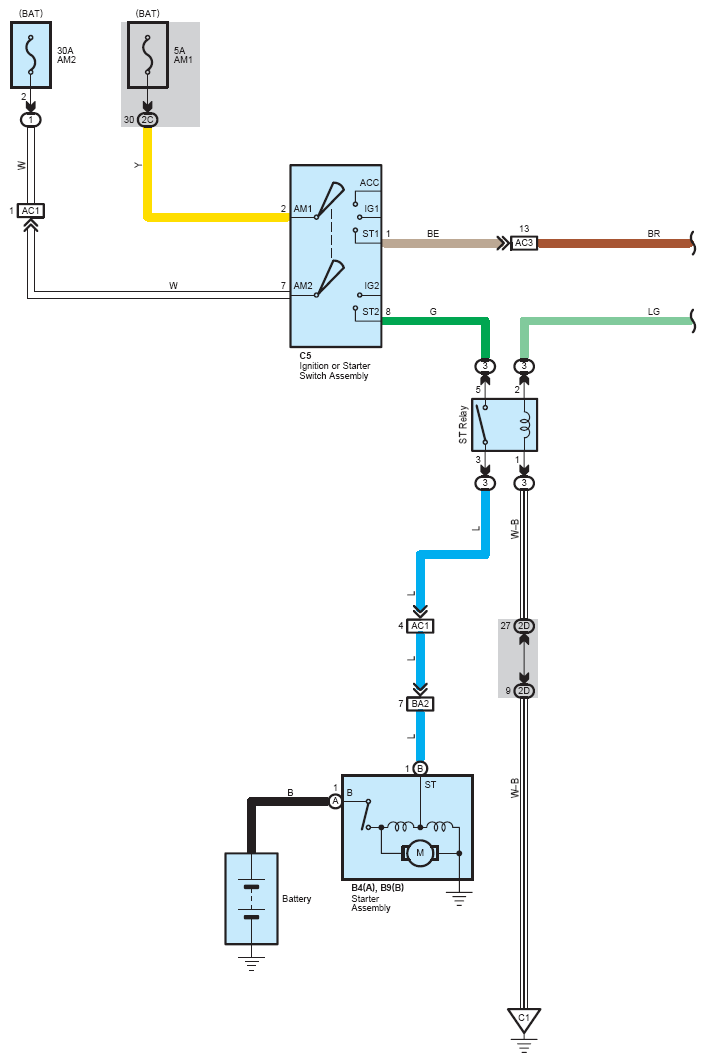

Fig 1: Starting System (w/o Smart Key System) Wiring Diagram (1 Of 2)
G08760211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

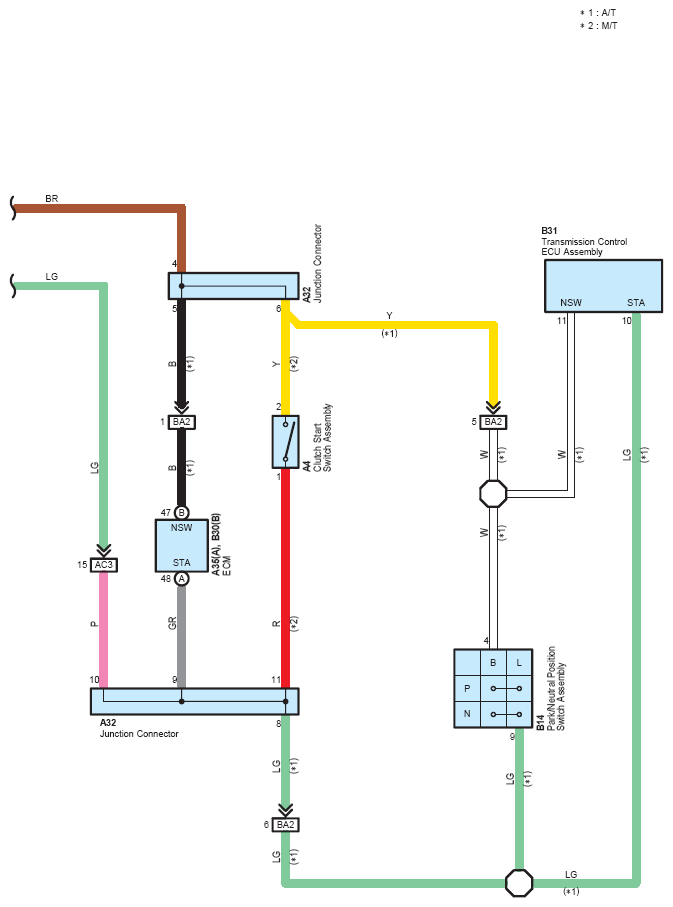

Fig 2: Starting System (w/o Smart Key System) Wiring Diagram (2 Of 2)
G08760212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
