Fuel Pressure Pulsation Damper
›
Components
›
Illustration
Fuel Pressure Pulsation Damper: Components: Illustration
Fig 1: Identifying Fuel Pressure Pulsation Damper Replacement Components (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

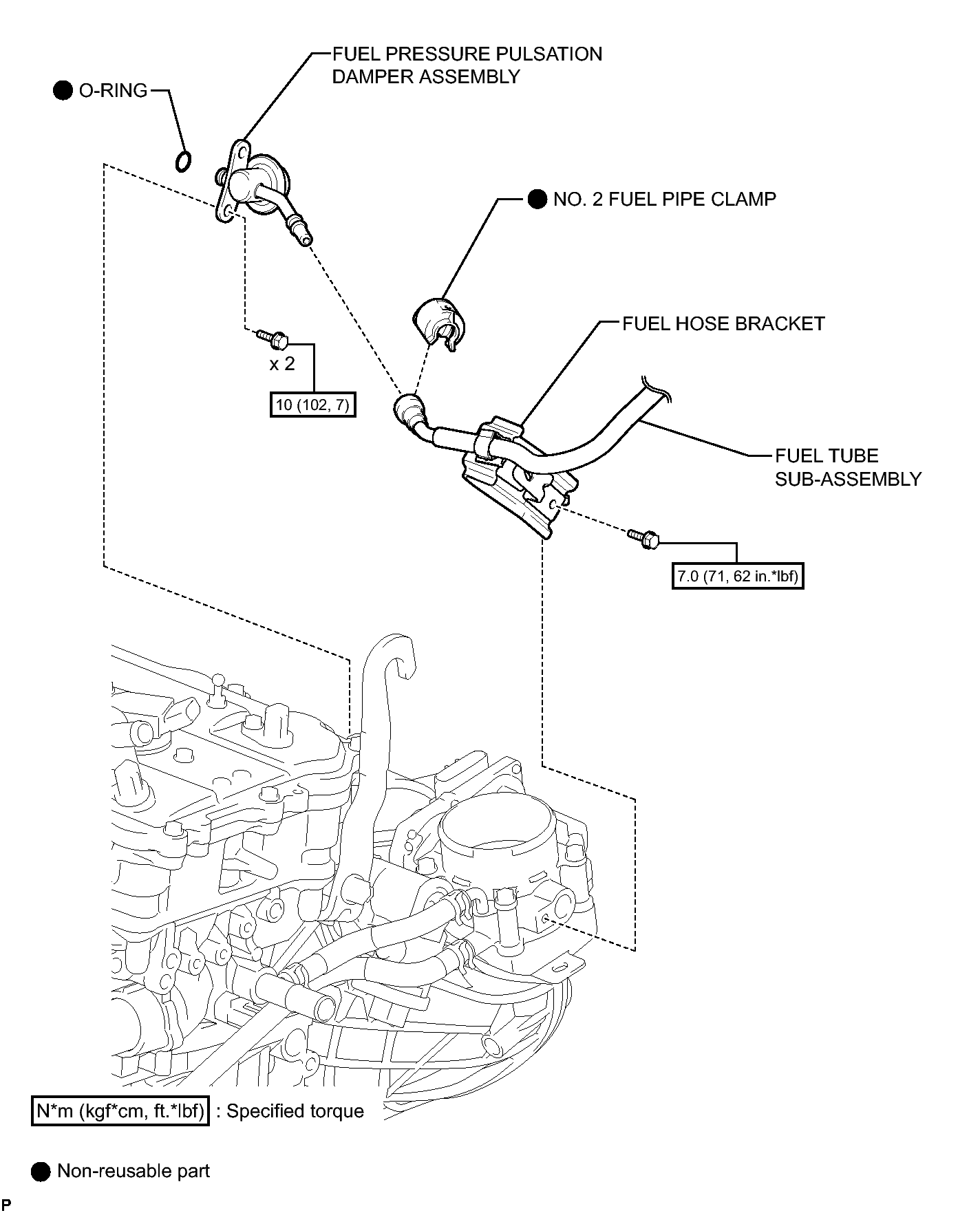

Fig 1: Identifying Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
