Camshaft Oil Control Valve: Removal: Removal

  1. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side)
    1. Disconnect the oil control valve connector.

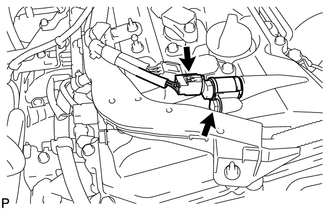

      Fig 1: Oil Control Valve And Bolt Location (For Exhaust Side)
      GTY296373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
  2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side)
    1. Disconnect the oil control valve connector.

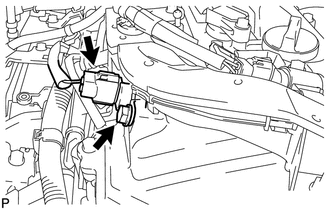

      Fig 2: Oil Control Valve And Bolt Location (For Intake Side)
      GTY296374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
