Automatic Transaxle (Service Information)
›
Differential Case
›
Components
›
Illustration
Differential Case: Components: Illustration

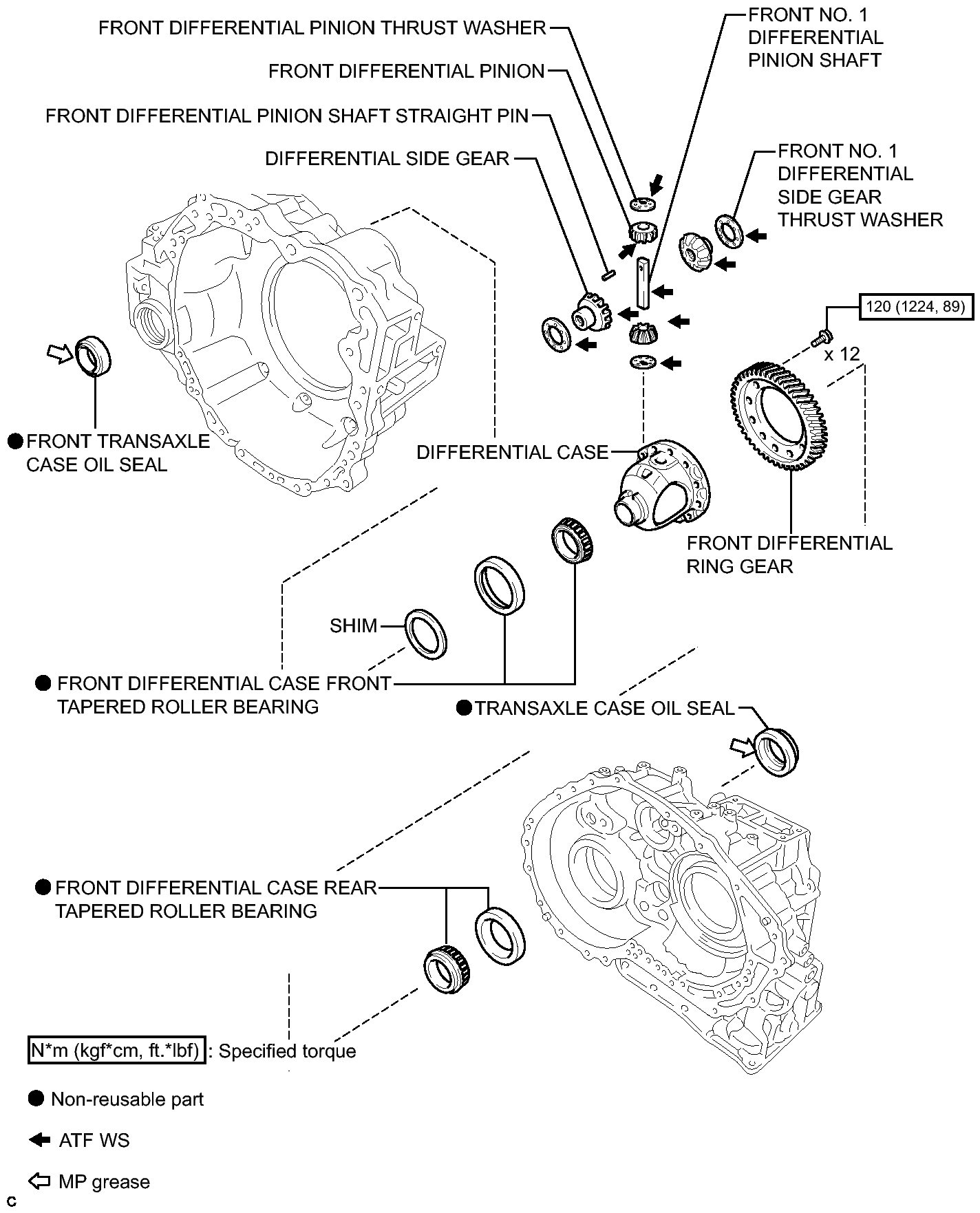

Fig 1: Differential Case Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
