Oil Cooler: Components: Illustration

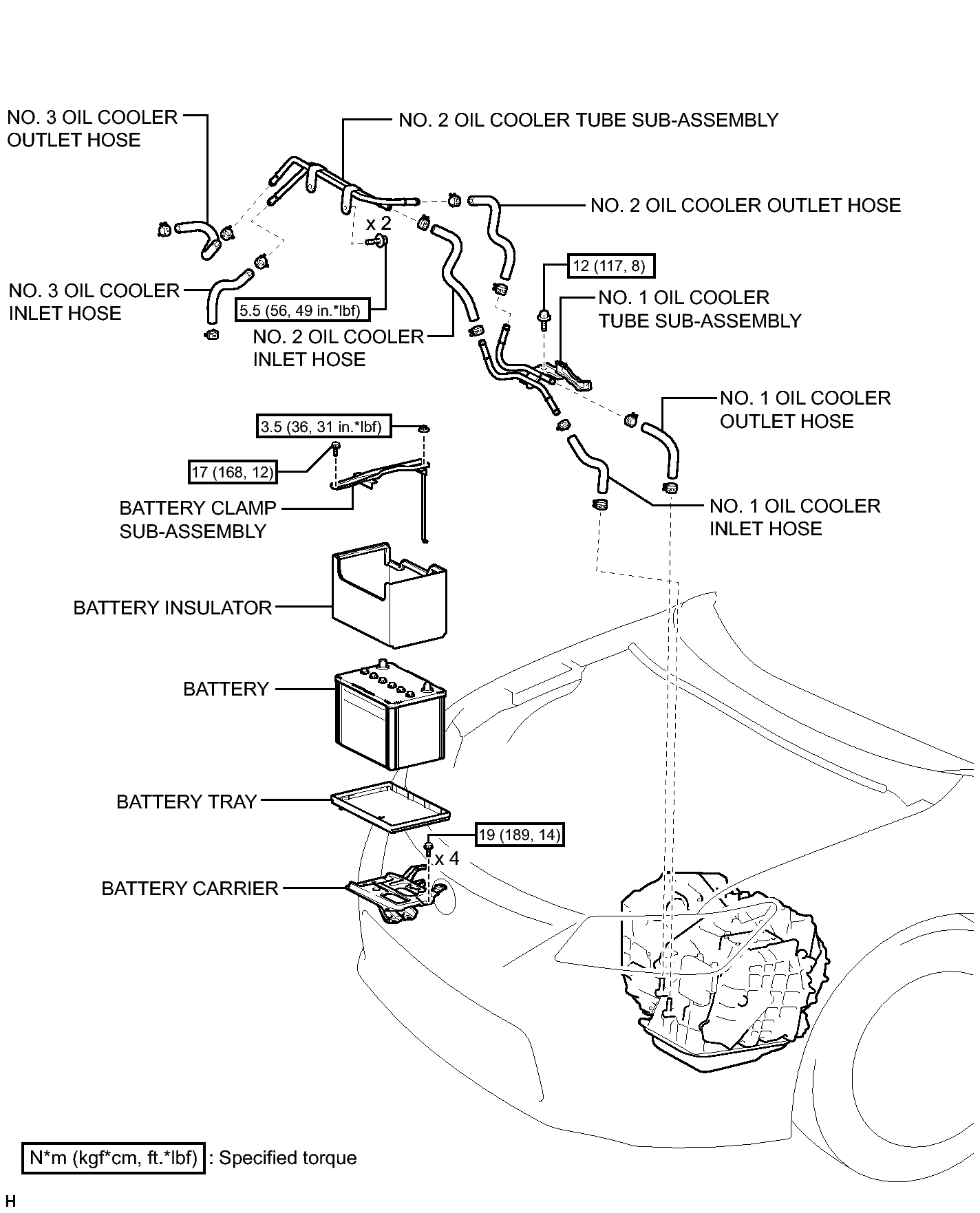

Fig 1: Oil Cooler Replacement Components With Torque Specifications

GTY310893

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
