Oil Pump: Components: Illustration

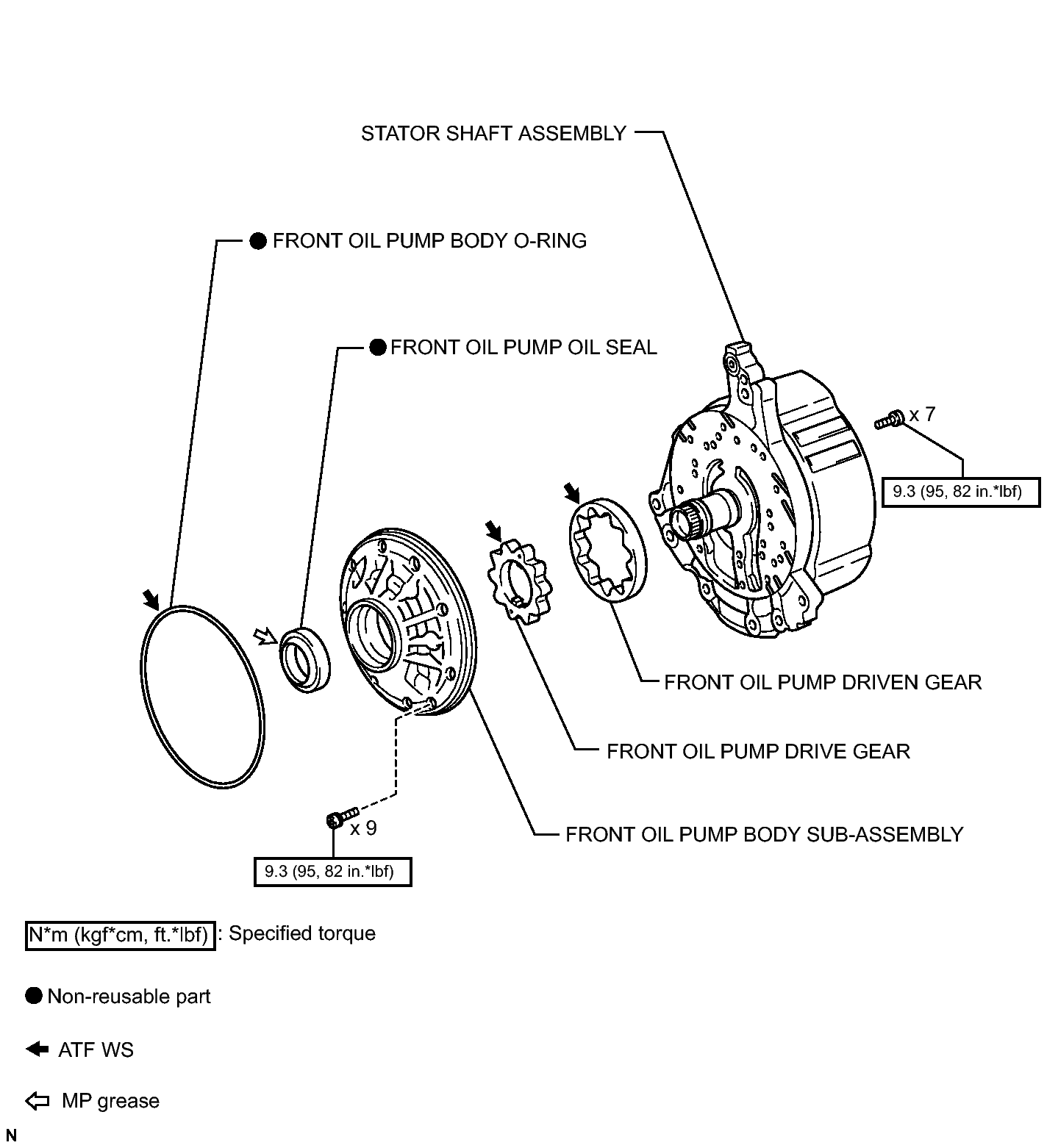

Fig 1: Oil Pump Replacement Components With Torque Specifications
GTY310327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
