Automatic Transaxle (Service Information)
›
Transmission Control Cable
›
Components
›
Illustration
Transmission Control Cable: Components: Illustration

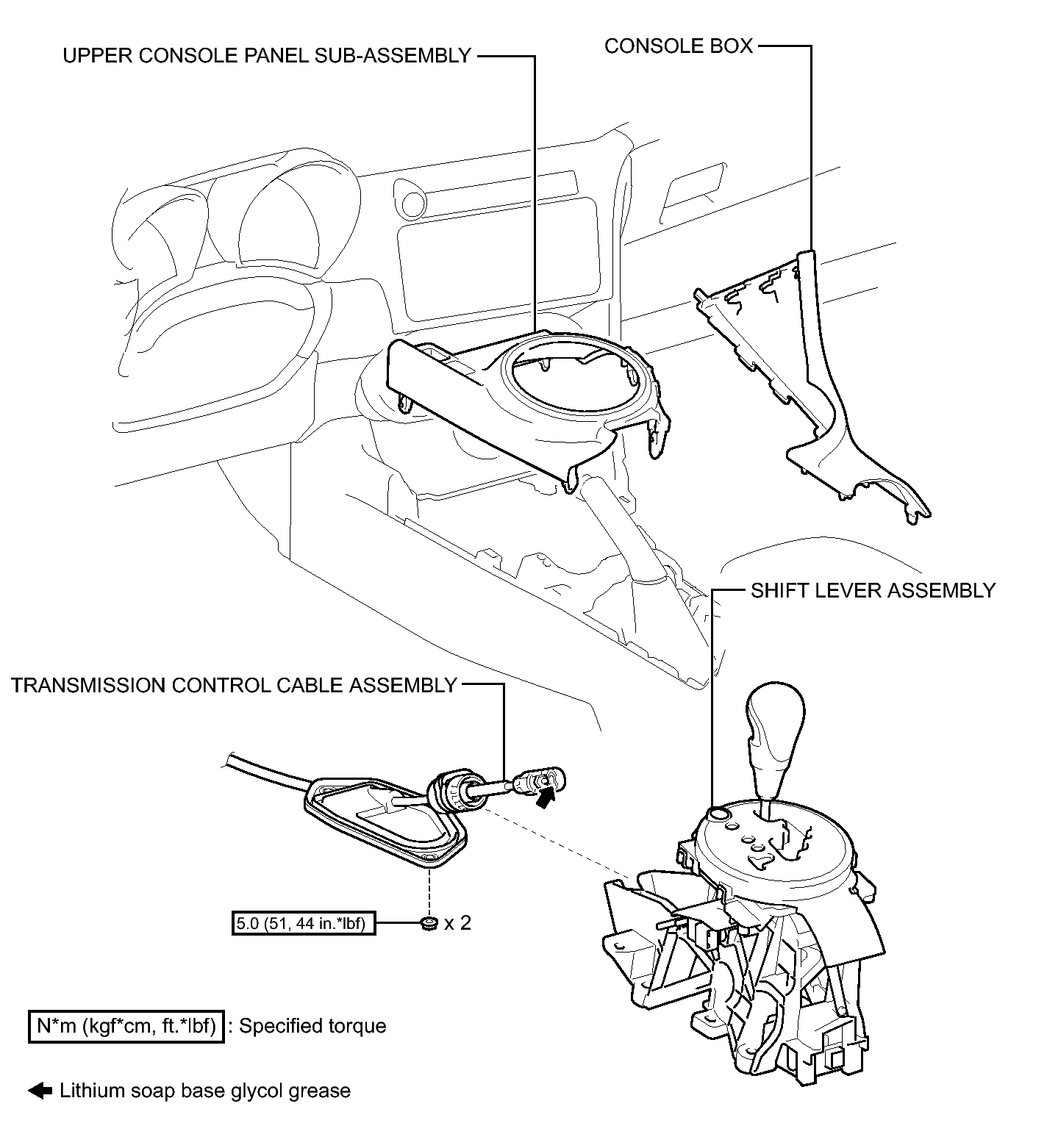

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

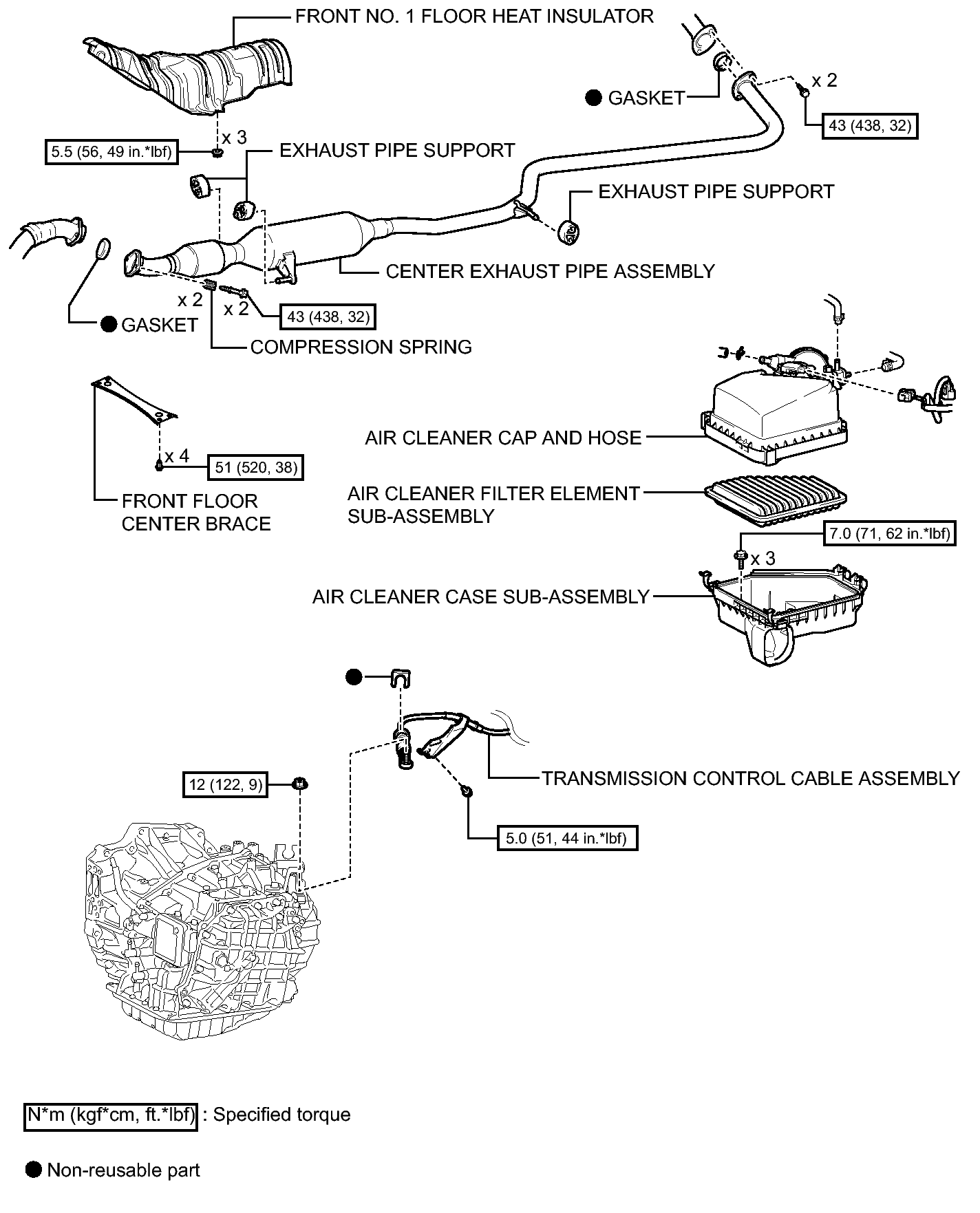

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
