Input Shaft: Components: Illustration

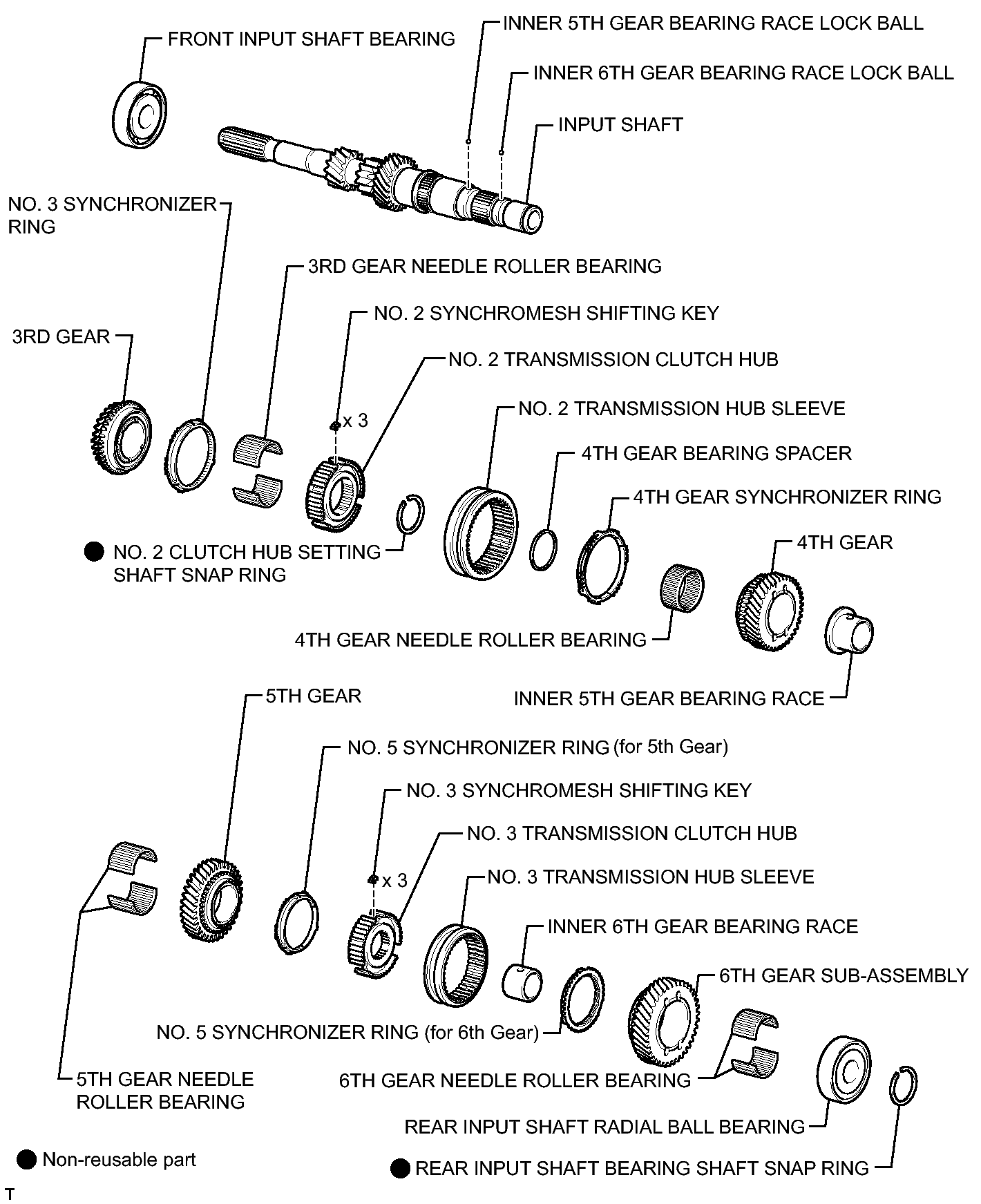

Fig 1: Exploded View Of Input Shaft Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
