OEM System Circuits: Ignition: Notes

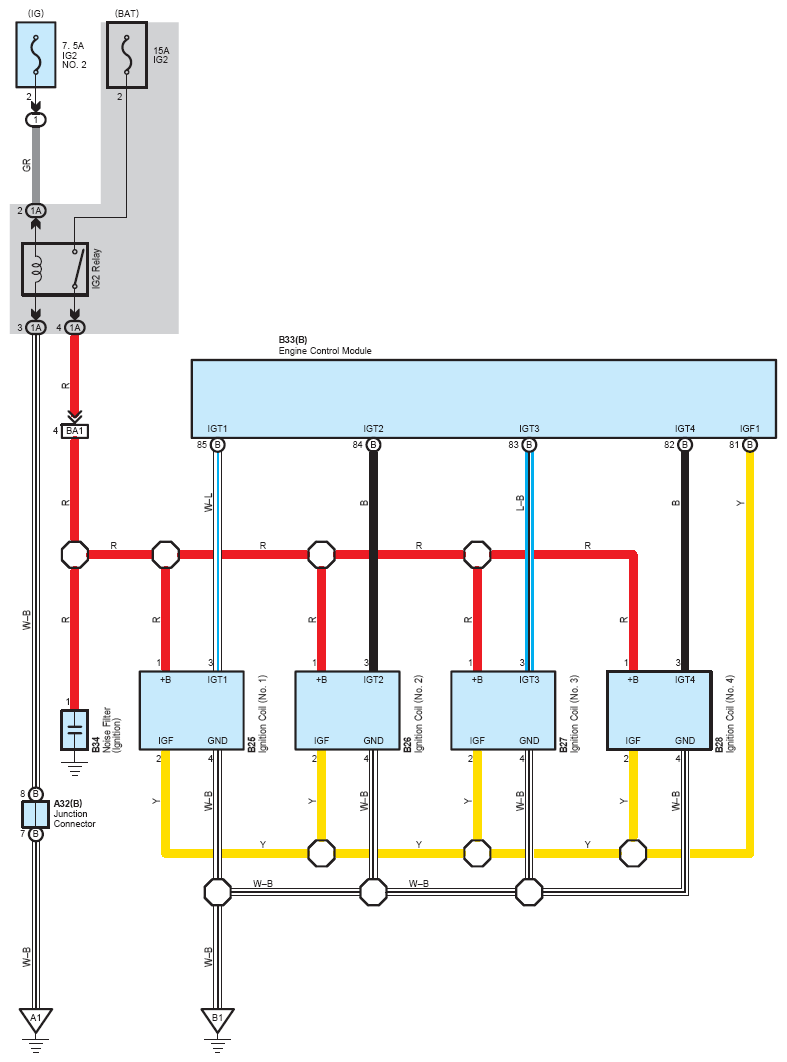

Fig 1: Ignition System Wiring Diagram

G08760709

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
