Direct Clutch: Components: Illustration

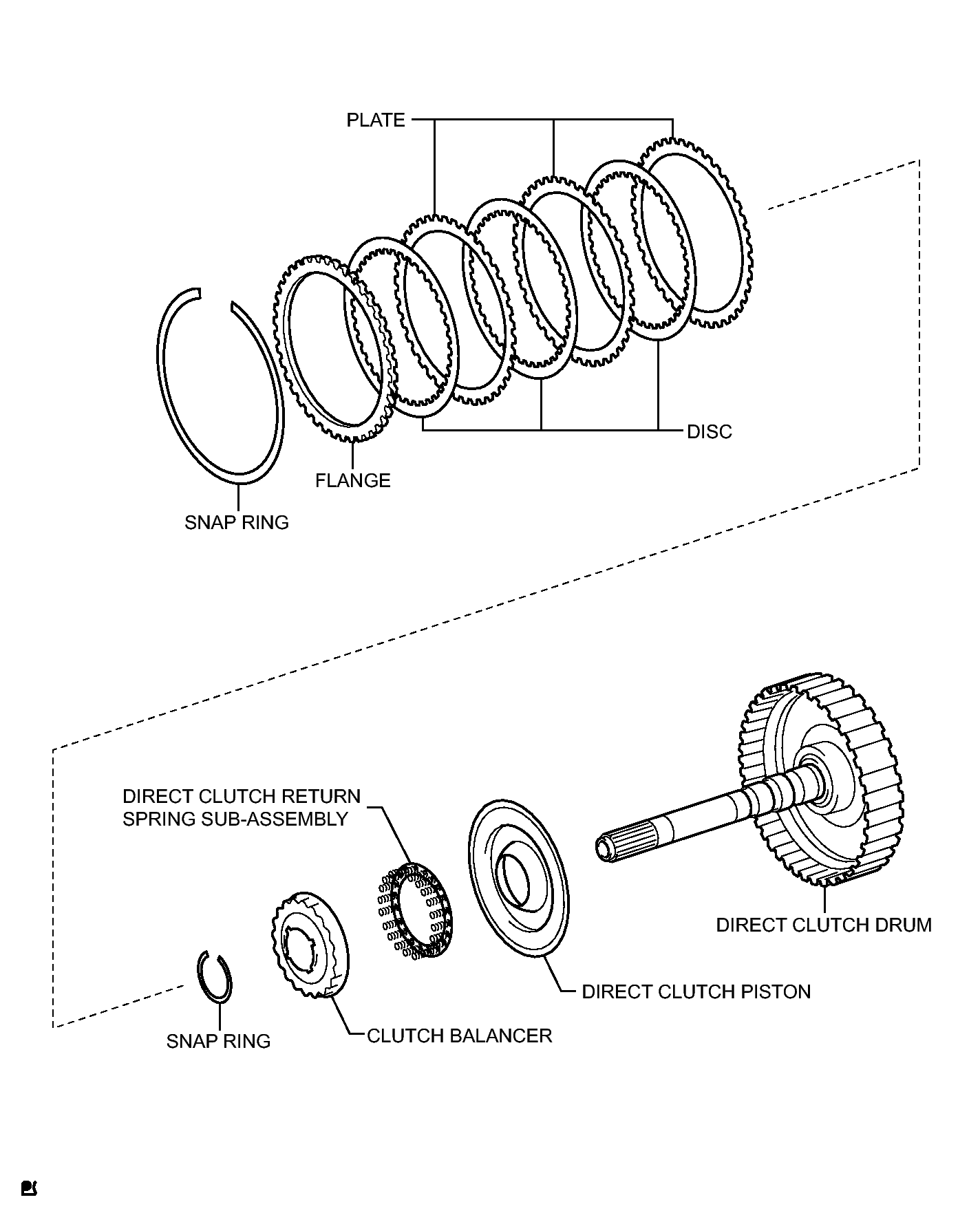

Fig 1: Identifying Direct Clutch Replacement Components
GTY167070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
