Transmission Control Cable Assembly: Components: Illustration

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specifications (1 Of 3)
GTY313610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

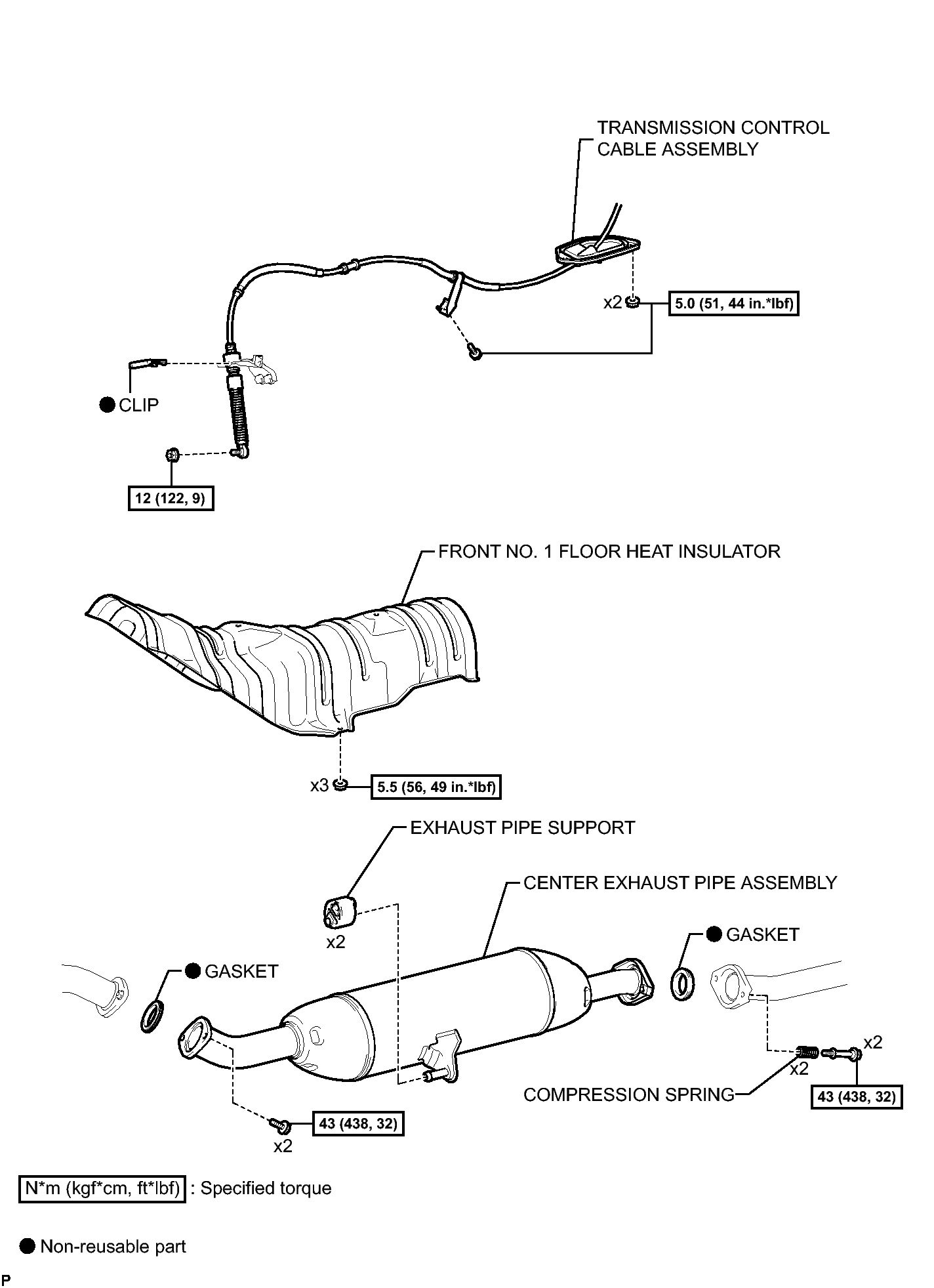

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY158298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

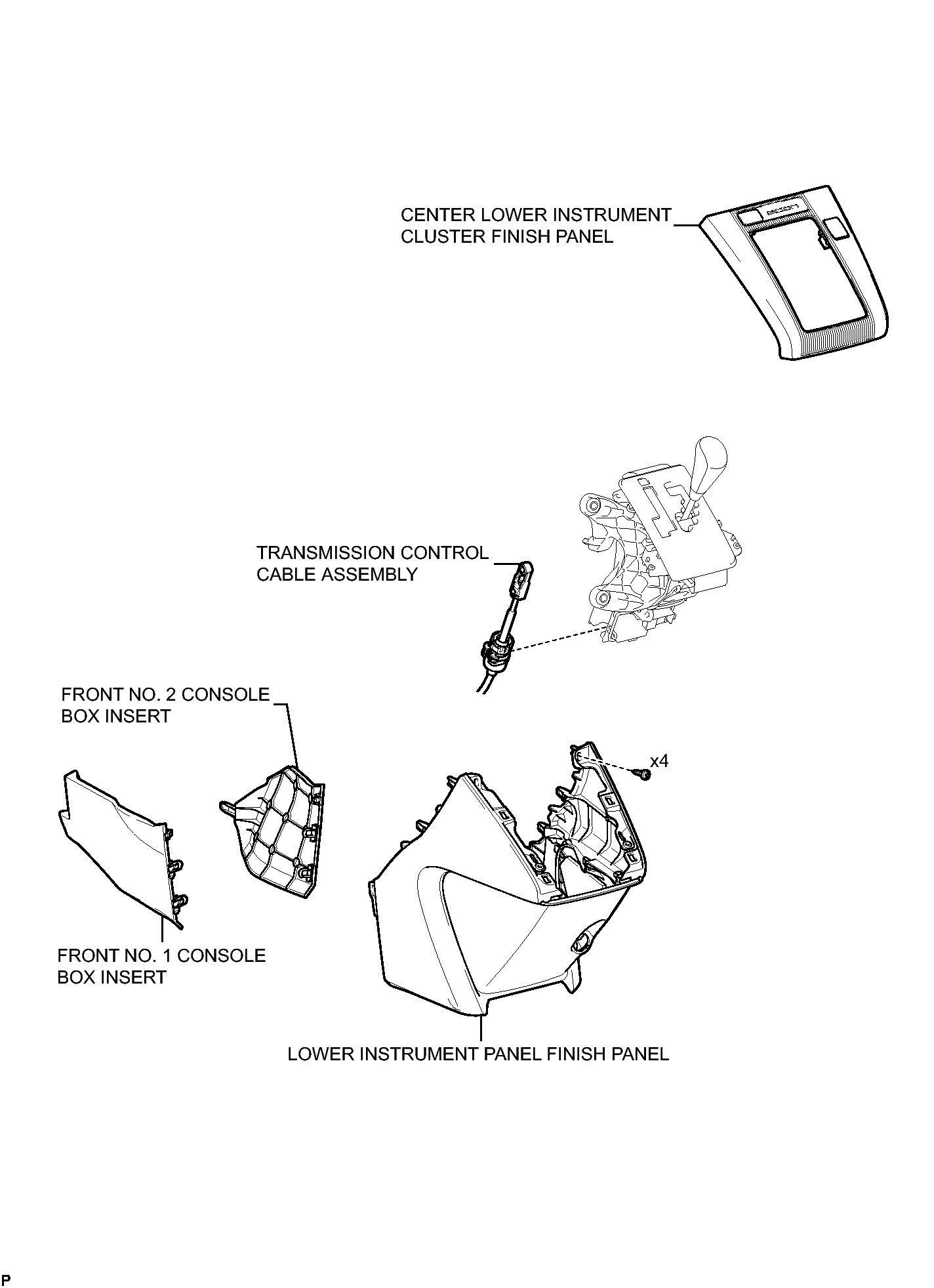

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components (3 Of 3)
GTY158299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
