Front Wheel Alignment: Adjustment: Adjustment

Refer to INSPECTION

Fig 1: Identifying Vehicle Height

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Press down on the vehicle several times to stabilize the suspension.
2. Measure the vehicle height.

   Measuring points

   A

   Ground clearance of No. 1 lower suspension arm bushing set bolt center

   B

   Ground clearance of rear axle carrier bushing set bolt center

   C

   Ground clearance of front wheel center

   D

   Ground clearance of rear wheel center

   Vehicle Height (Unloaded Vehicle)

   Front C - A	Rear D - B
   104 mm (4.09 in.)	19 mm (0.748 in.)

   NOTE:

   The standard value shown here is a value that is used for adjusting the wheel alignment and does not indicate the height of an actual vehicle.

Fig 2: Measuring Turning Angle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Put tread center marks on the rearmost points of the turning radius gauge.
2. Turn the steering wheel to the left and right full lock positions, and measure the turning angle.

   Wheel Turning Angle (Unloaded Vehicle)

   Inside Wheel	Outside Wheel
   39°15' +/- 2° (39.25° +/- 2°)	33°00' (33.00°)

   If the angles are not as specified, check and adjust the right and left rack end lengths.

Fig 3: Placing Front Wheels On Center Of Wheel Alignment Tester

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the camber-caster-kingpin gauge or place the front wheels on the center of the wheel alignment tester.
2. Inspect the camber, caster and steering axis inclination.

   Camber, Caster and Steering Axis Inclination (Unloaded Vehicle)

   Camber	Caster	Steering Axis Inclination (Reference)
   -0°10' +/- 45' (-0.16° +/- 0.75°)	5°45' +/- 45' (5.75° +/- 0.75°)	12°10' (12.17°)

   NOTE:

   • Perform the inspection while vehicle is empty (without a spare tire or tools on board).
   • The tolerance for the difference between the left and right wheels is 0°45' (0.75°) or less for both the camber and caster.

1. Remove the front wheel.
2. Remove the 2 nuts on the lower side of the front shock absorber.
   Fig 4: Removing Front Shock Absorber With Coil Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   Keep the bolts inserted.

3. Clean the installation surfaces of the front shock absorber and the steering knuckle.
4. Temporarily install the 2 nuts (Step A).
5. Fully push or pull the front axle hub in the direction of the required adjustment (Step B).
   Fig 5: Pulling Front Axle Hub

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Tighten the nuts.

   Torque: 240 N*m (2447 kgf*cm, 177 ft.*lbf)

   NOTE:

   Keep the bolts from rotating when tightening the nuts.

7. Install the front wheel.

   Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

8. Check the camber.
   Fig 6: Identifying Nut And Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the measured value is not within the specification, calculate the required adjustment amount using the formula below.

   Camber adjustment amount = center of the specified range center - measured value

   Check the combination of installed bolts. Select appropriate bolts from the table below to adjust the camber to the specified values.

   HINT:

   Try to adjust the camber to the center of the specified values.

   Move the axle toward (+) in step (B)	Move the axle toward (-) in step (B)
   Refer to table (1) (Move the axle toward the positive side)	Refer to table (2) (Move the axle toward the negative side)

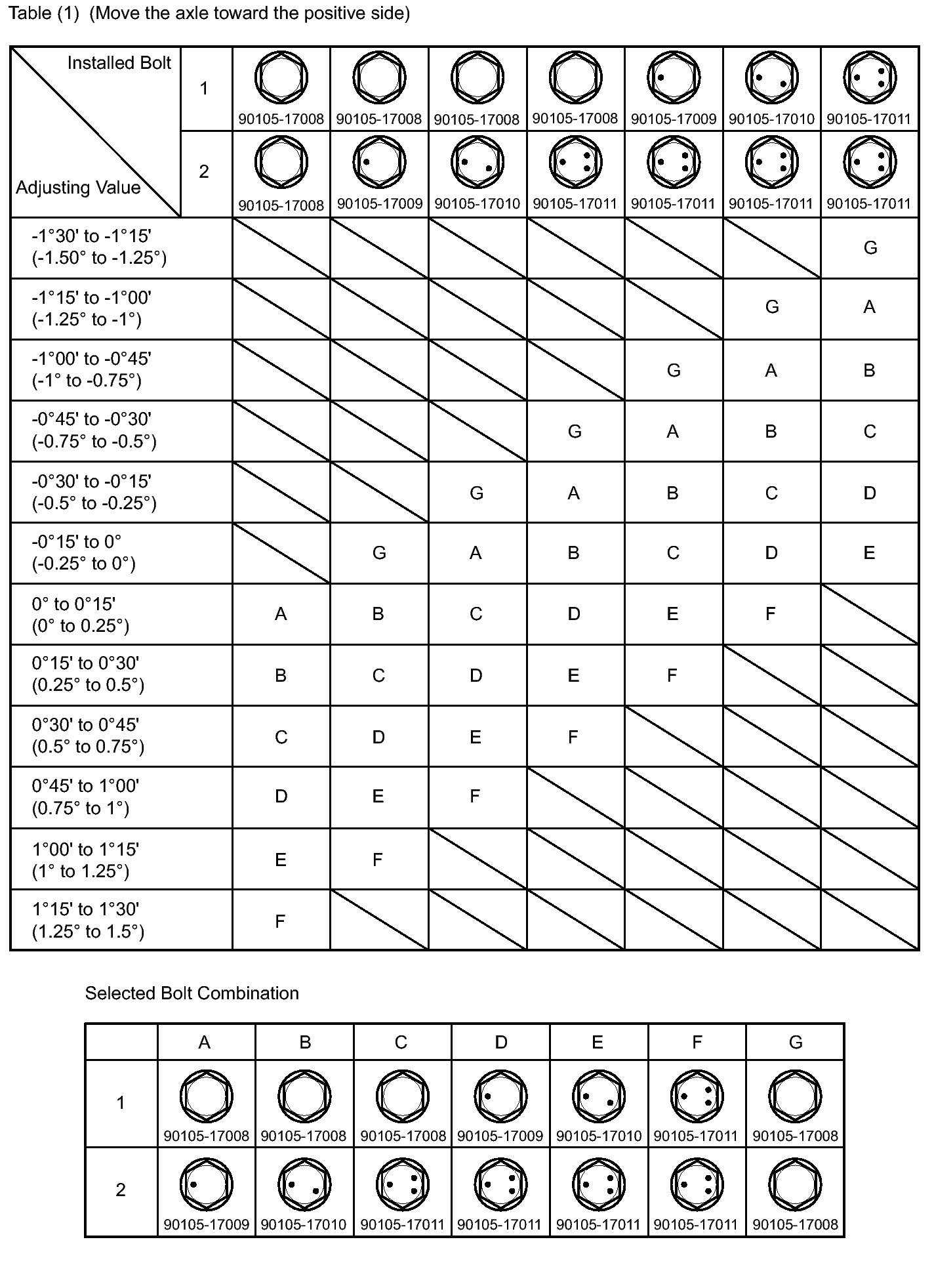

   Fig 7: Bolt Torque Specifications Chart 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

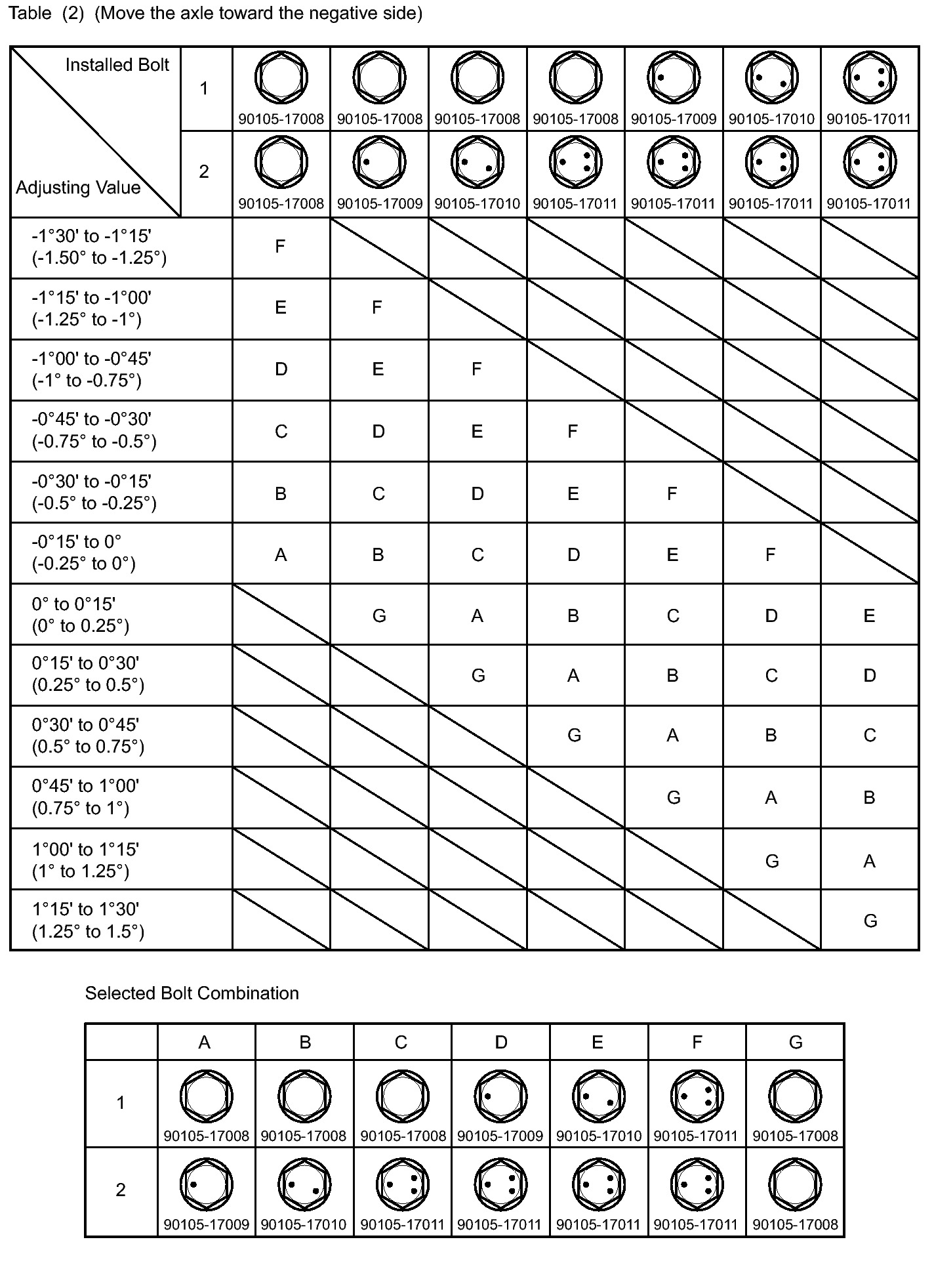

   Fig 8: Bolt Torque Specifications Chart 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   The body and suspension may be damaged if the camber is not correctly adjusted according to the table above.

   NOTE:

   Replace the nut with a new one when replacing the bolt.

9. Repeat the steps mentioned above. In step (A), replace 1 or 2 selected bolts.

   HINT:

   Replace one bolt at a time when replacing 2 bolts.

1. Bounce the vehicle up and down at the corners to stabilize the suspension.
2. Release the parking brake and move the shift lever to the neutral position.
3. Push the vehicle straight ahead approximately 5 m (16.4 ft.). (*1)
4. Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).
   Fig 9: Measuring Distance Between Marks (Dimension B)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Slowly push the vehicle straight ahead to cause the front wheels to rotate 180° using the front tire valve as a reference point.

   HINT:

   Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from (*1) again.

6. Measure the distance between the tread center marks on the front side of the wheels (dimension A).
   Fig 10: Identifying Distance Between Center Marks (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Toe-in (Unloaded Vehicle)

   B - A
   2.0 +/- 2 mm (0.0787 +/- 0.0787 in.)

   HINT:

   If the toe-in is not within the specified range, adjust it at the rack ends.

Fig 11: Measuring Standard Difference

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Make sure that the length of the right and left rack ends are approximately the same.

   Standard difference

   1.5 mm (0.0591 in.) or less

2. Remove the boot clips.
3. Loosen the tie rod end lock nuts.
   Fig 12: Loosening Tie Rod End Lock Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the right and left rack ends by an equal amount to adjust the toe-in to the center value.
5. Tighten the tie rod end lock nuts.

   Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

6. Place the boots on the seats and install the clips.

   HINT:

   Make sure that the boots are not twisted.

Torque: 5.4 N*m (55 kgf*cm, 47 in.*lbf)

Refer to CALIBRATION

Refer to PROCEDURE - Step 2
