Cruise Control Main Switch: Components: Illustration

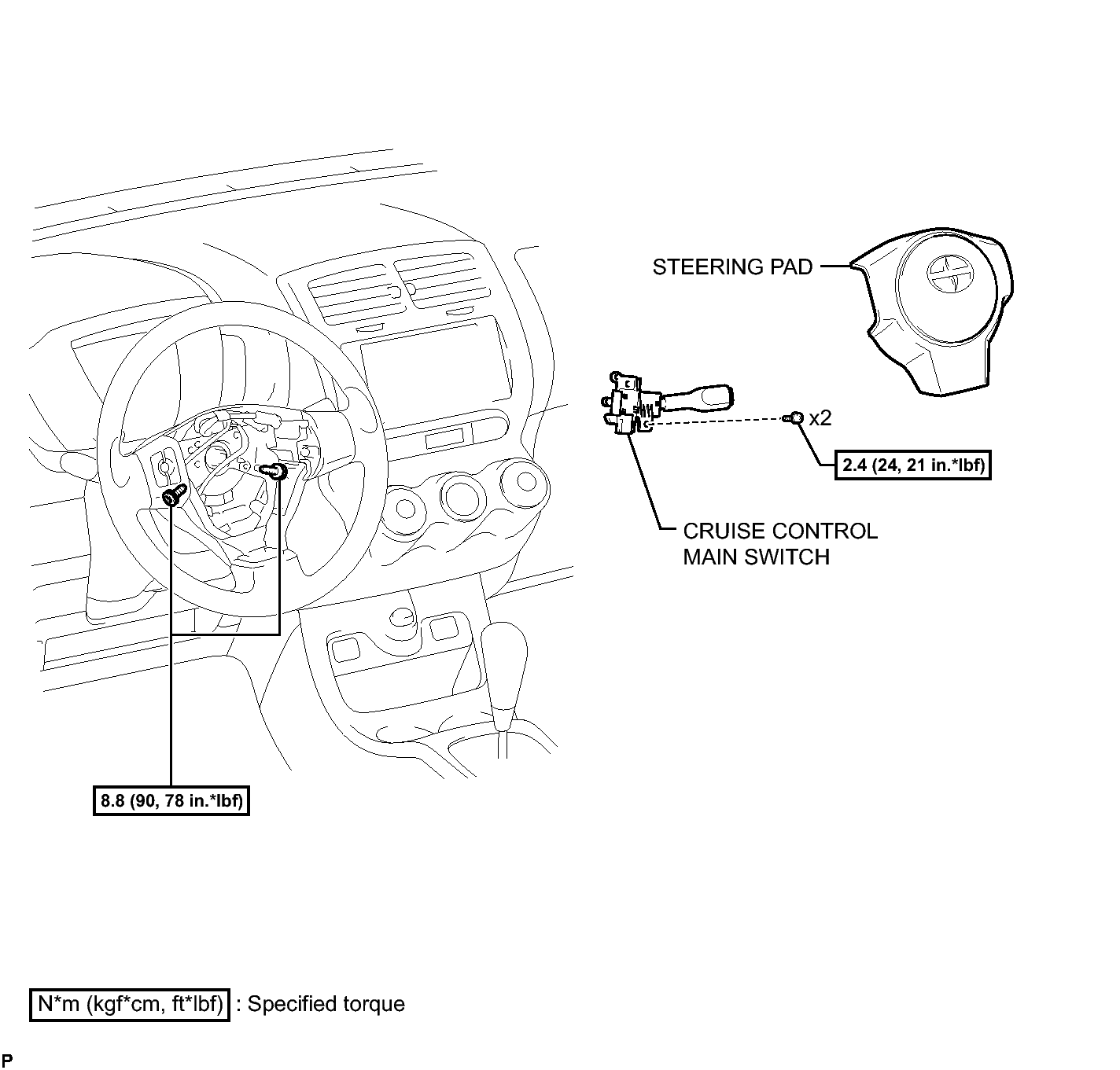

Fig 1: Cruise Control Main Switch Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
