Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Key Reminder and Light Reminder
›
Notes
Key Reminder and Light Reminder: Notes

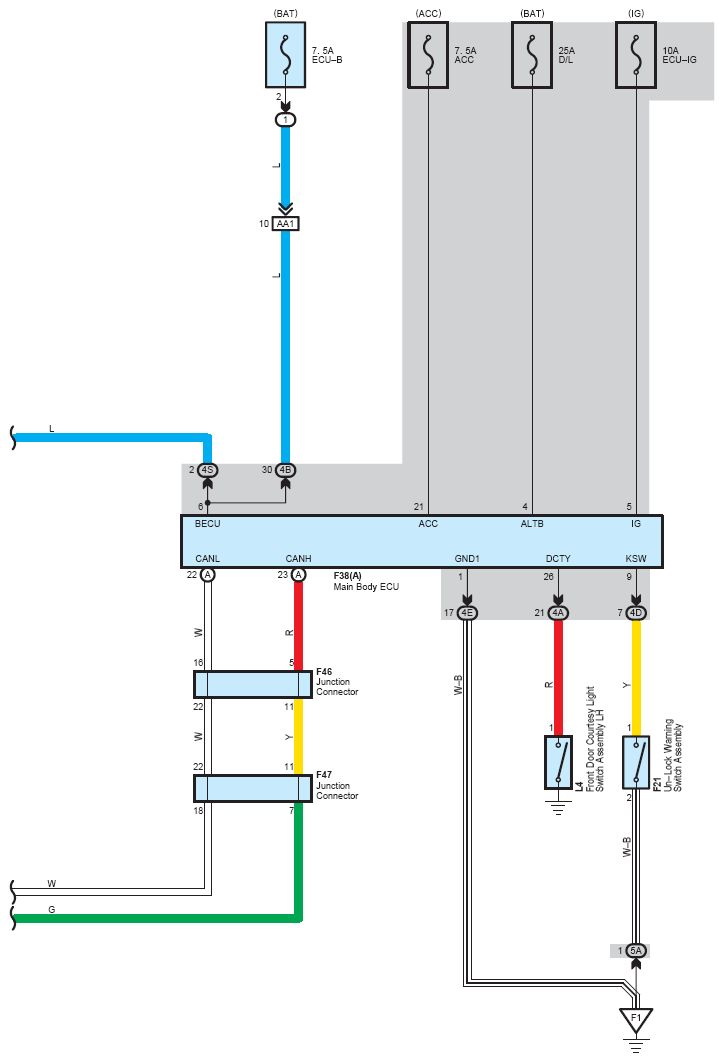

Fig 1: Key Reminder And Light Reminder System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

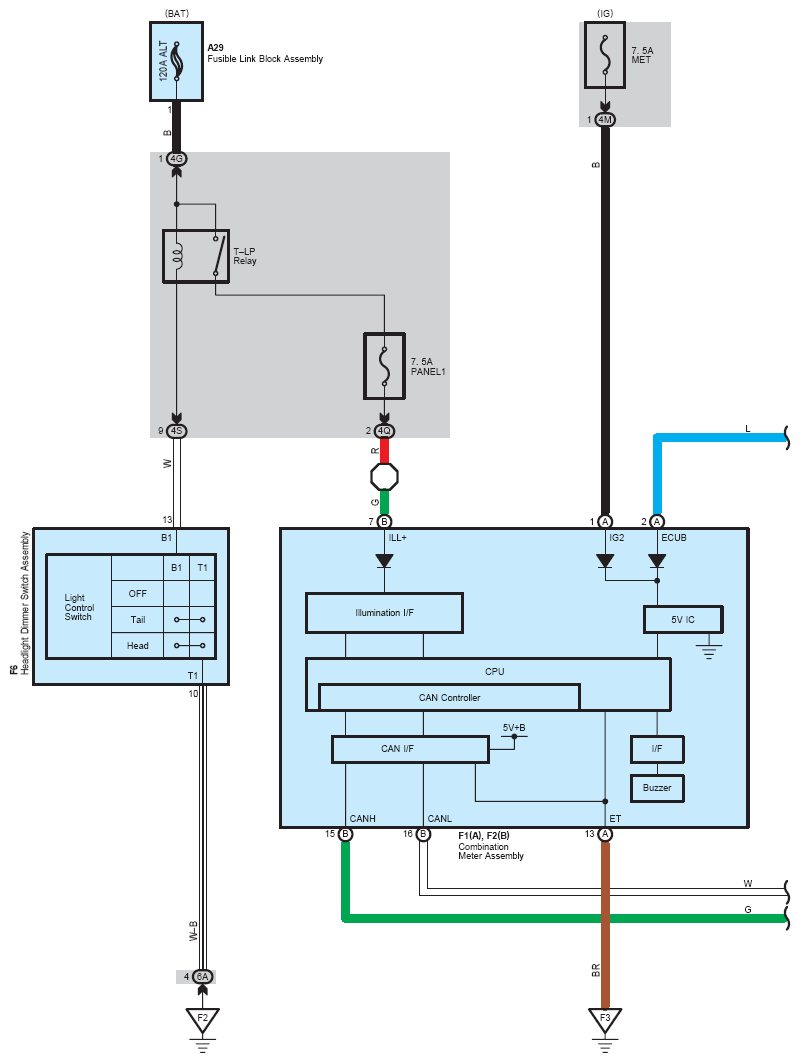

Fig 2: Key Reminder And Light Reminder System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
