Stop Light: Notes

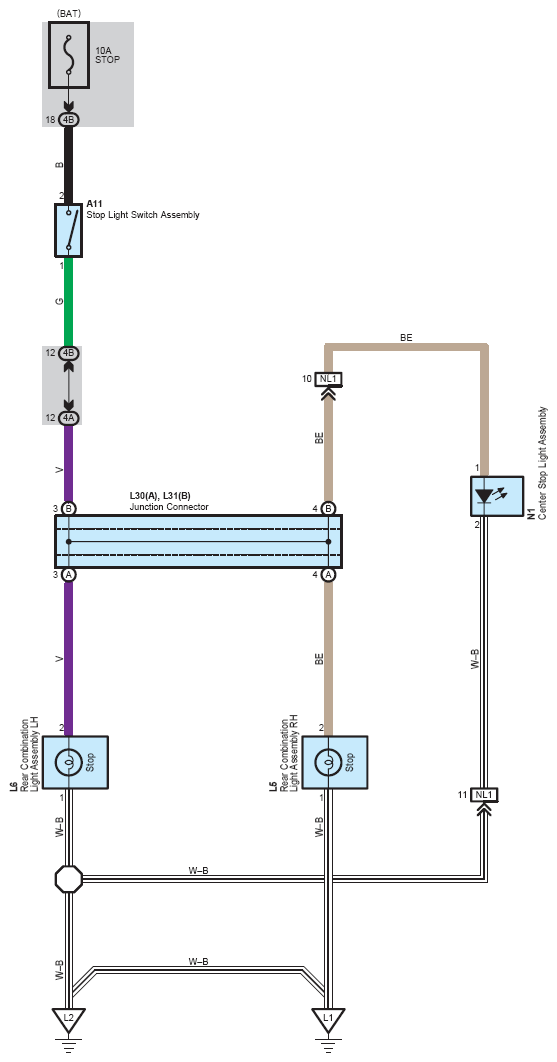

Fig 1: Stop Light System Wiring Diagram
G08761184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
