Ignition Relay No. 1: Components: Illustration

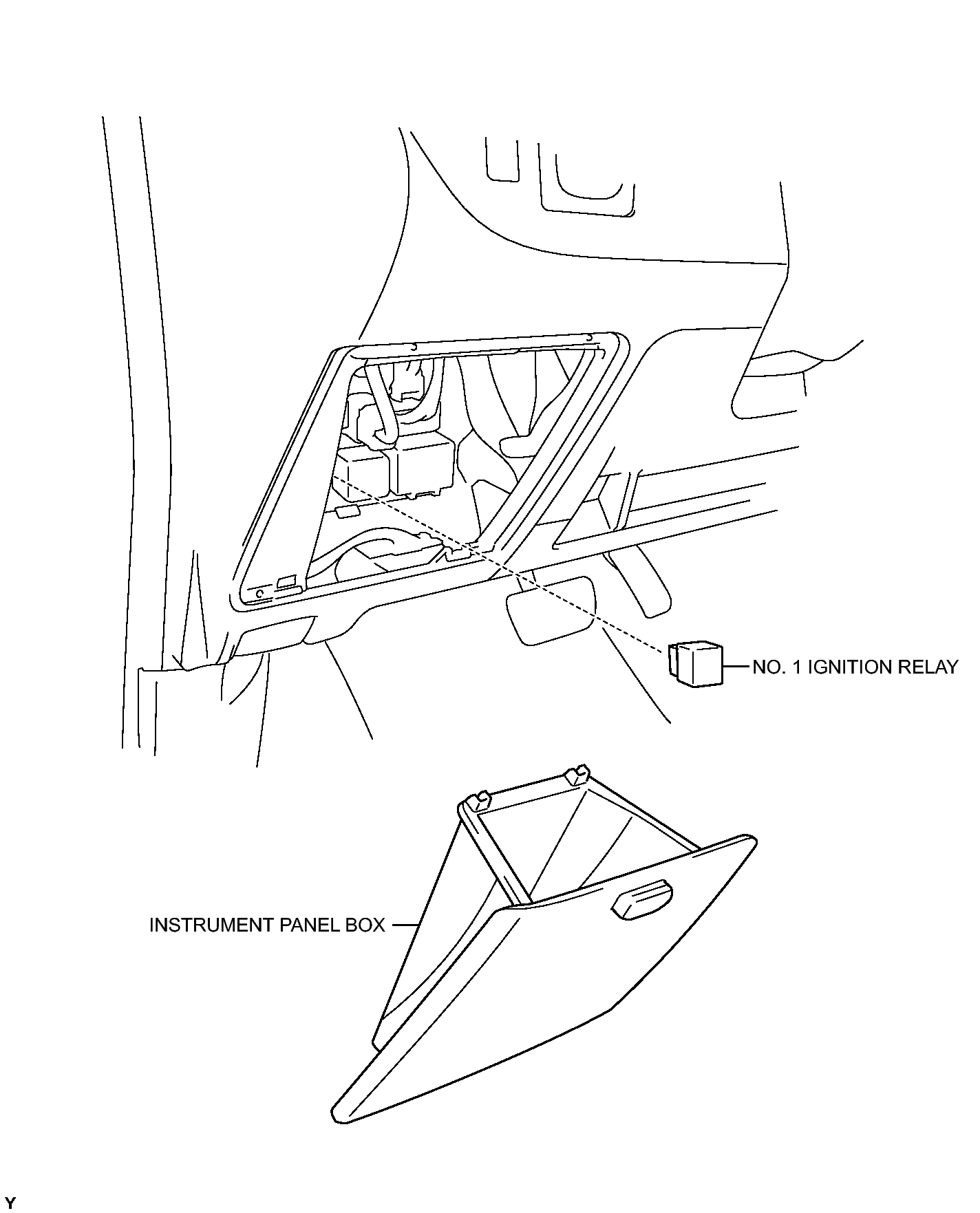

Fig 1: Identifying Ignition Relay No 1 Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
