Transmission Control Cable Assembly: Components: Illustration

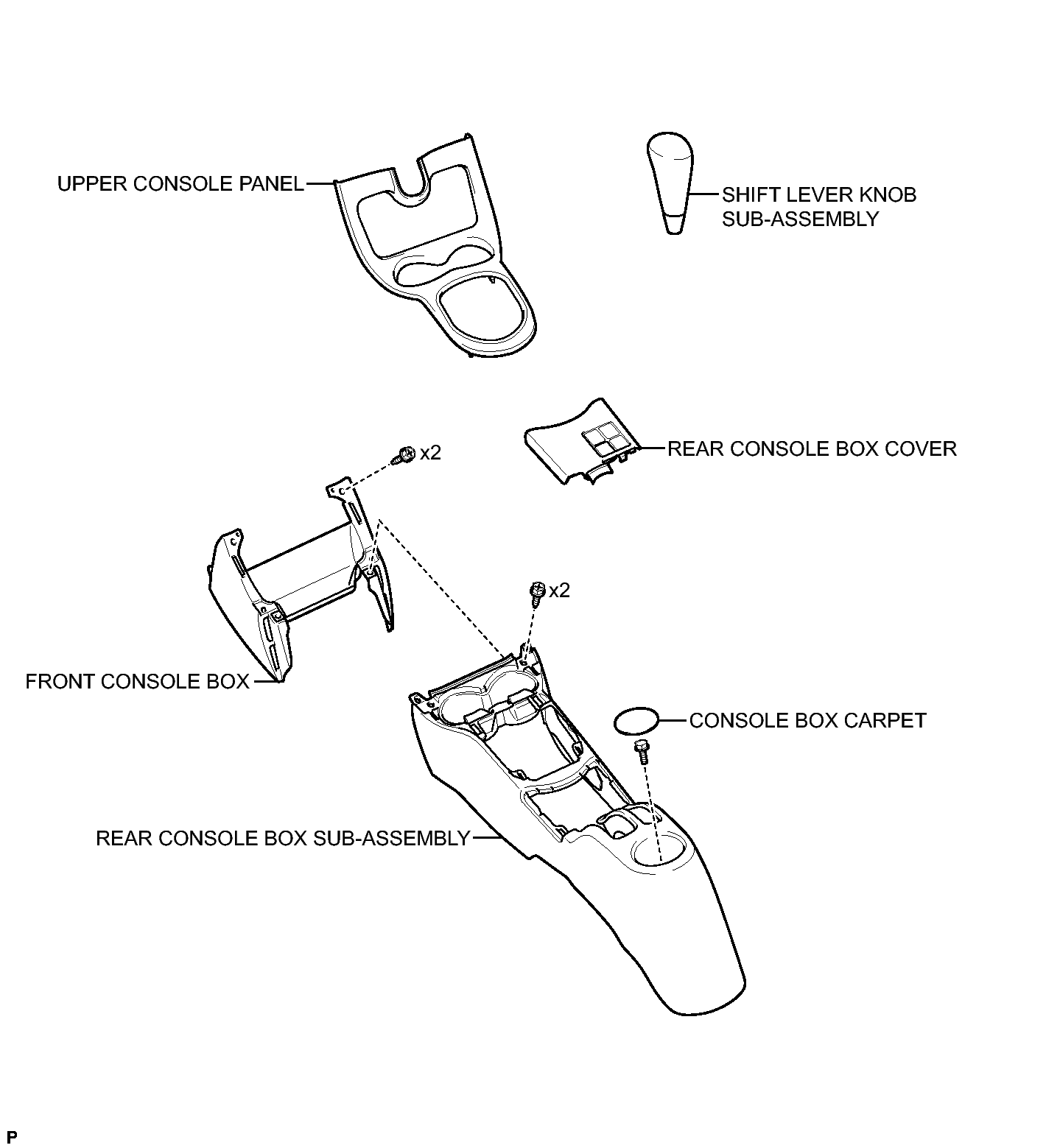

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

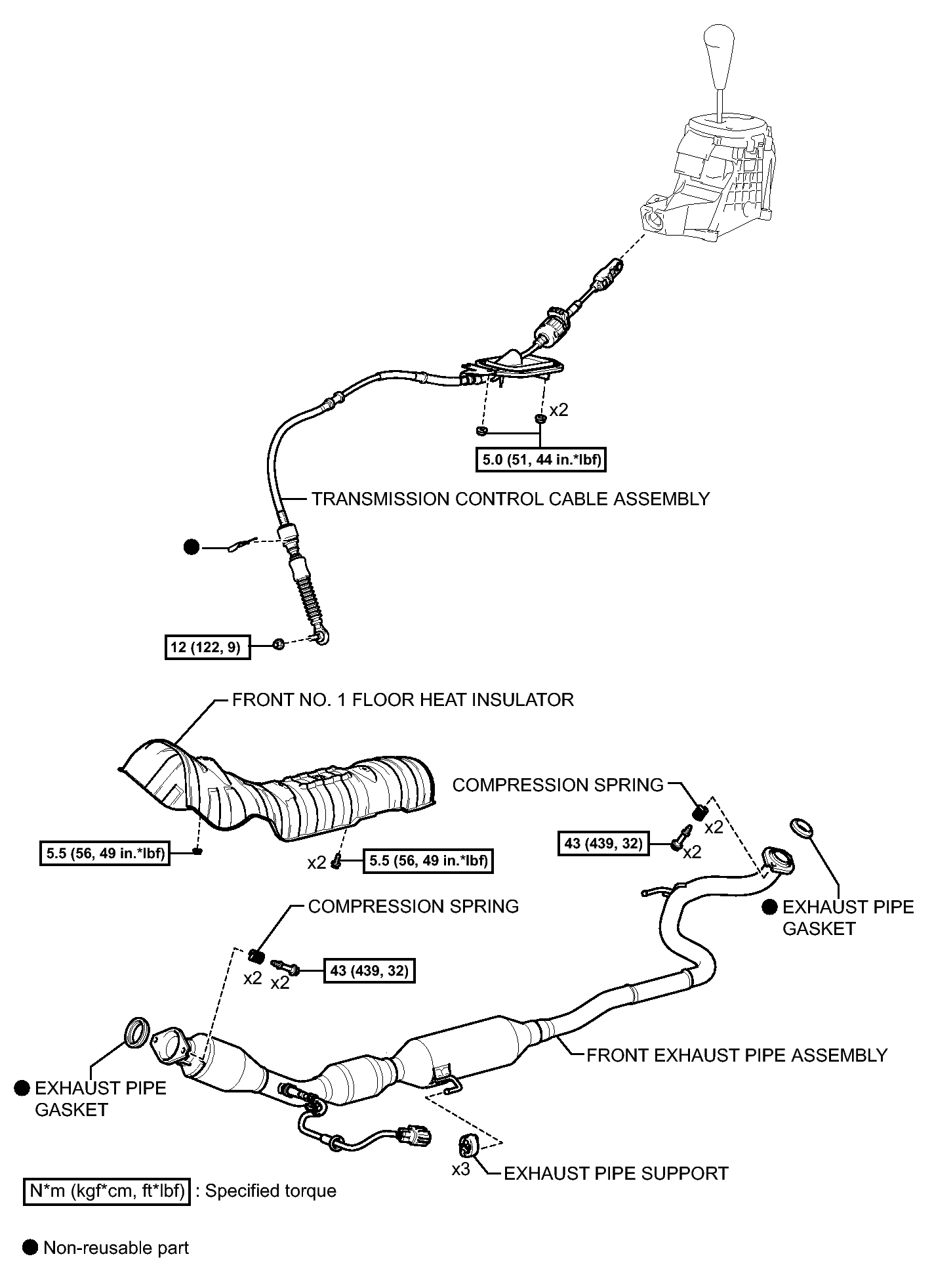

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
