Rear Wiper and Washer: Notes

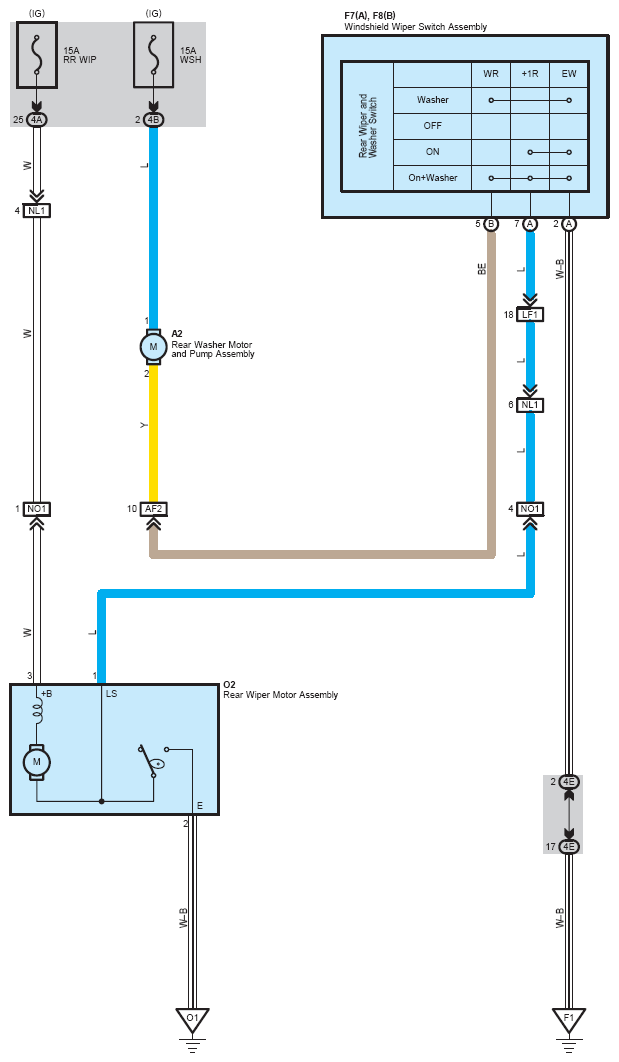

Fig 1: Rear Wiper And Washer System Wiring Diagram
G08761232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
