Ground Point: Notes — 2013 Scion FR-S Automatic Trans Service Manual ~ FixVault

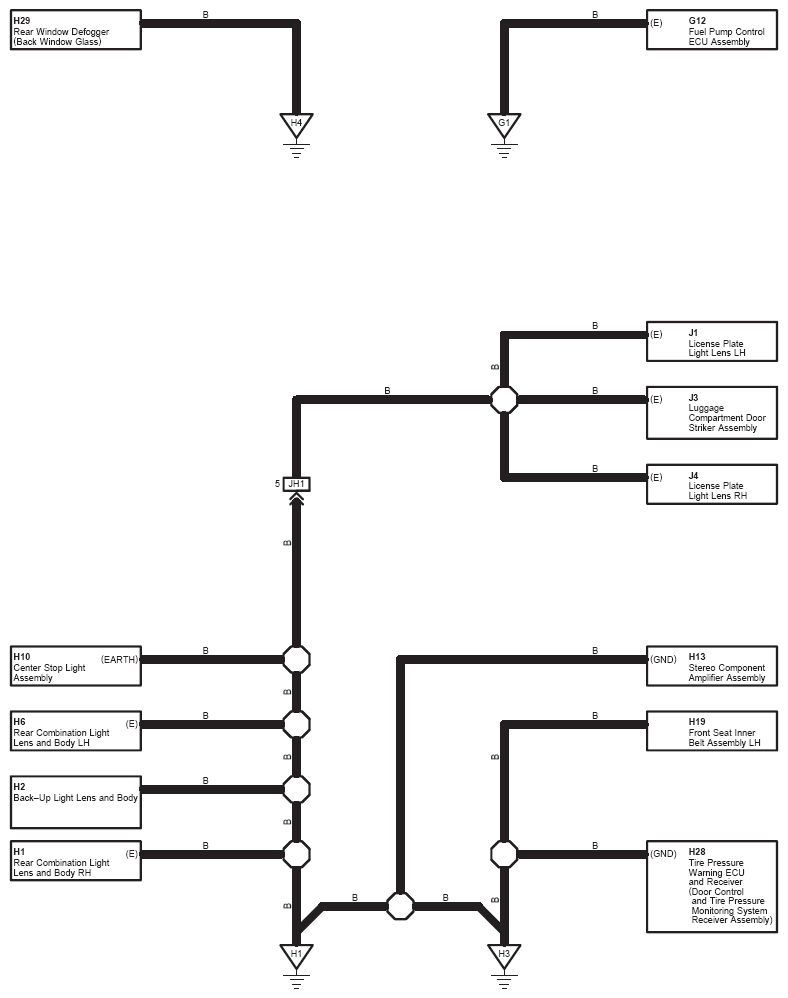

Fig 1: Ground Point Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

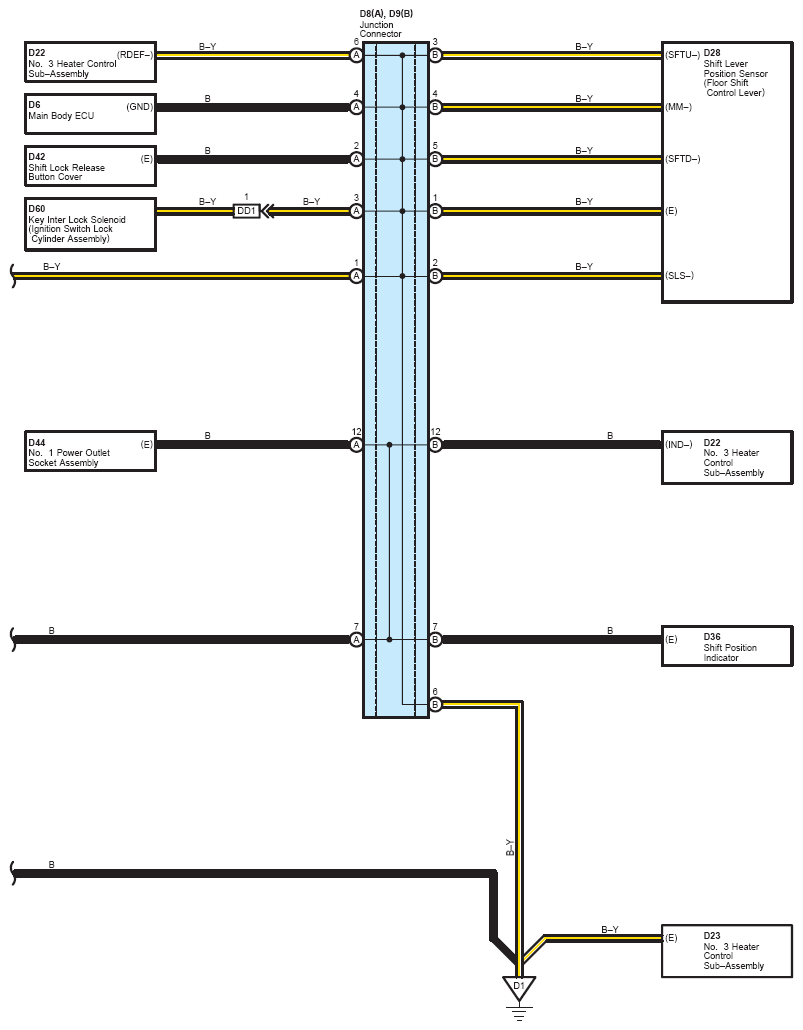

Fig 2: Ground Point Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

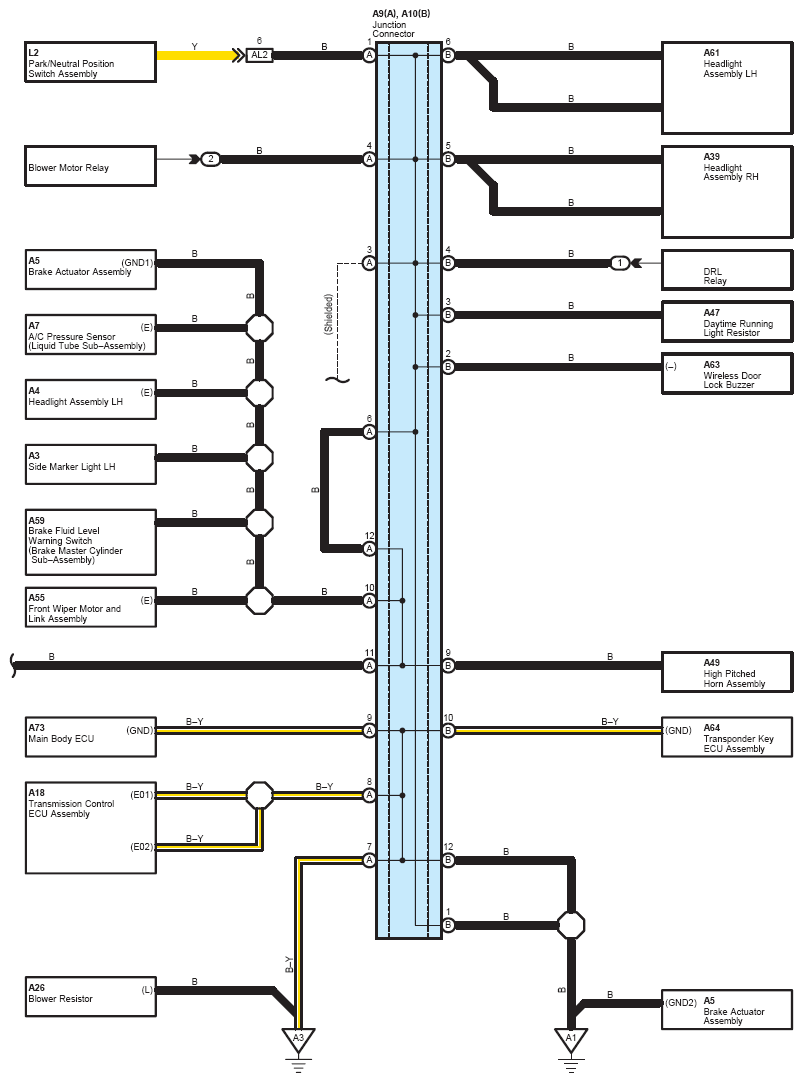

Fig 3: Ground Point Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

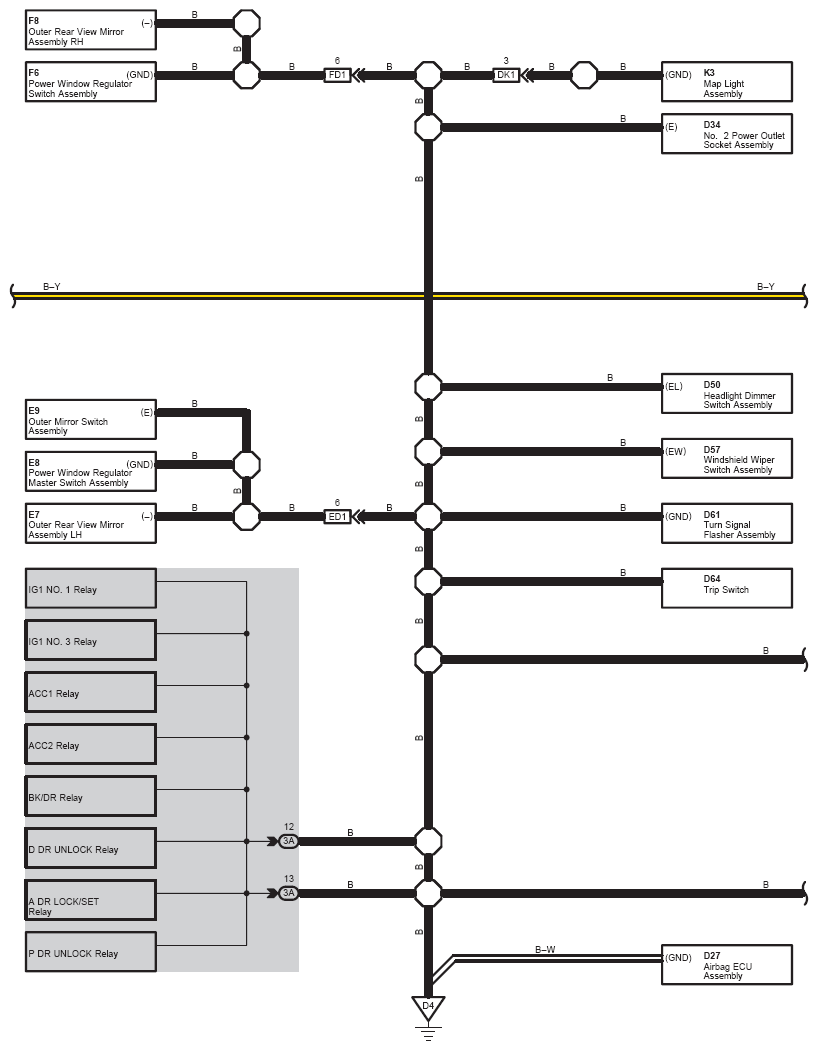

Fig 4: Ground Point Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

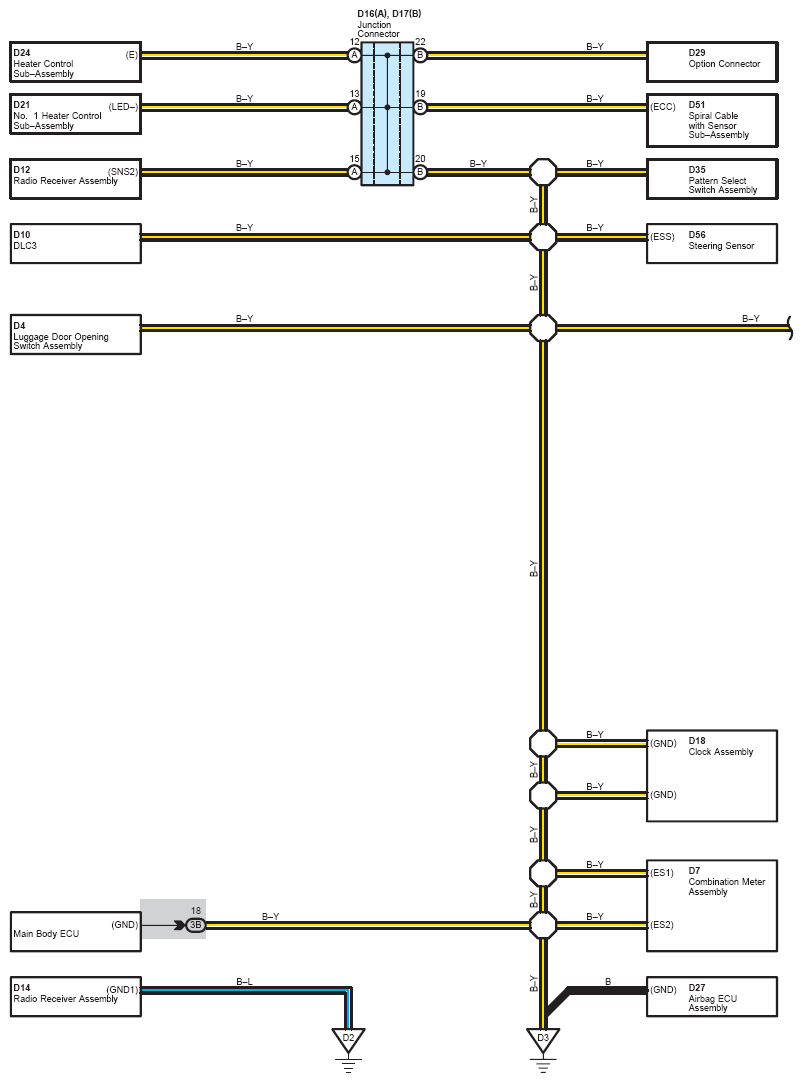

Fig 5: Ground Point Wiring Diagram (5 Of 7)

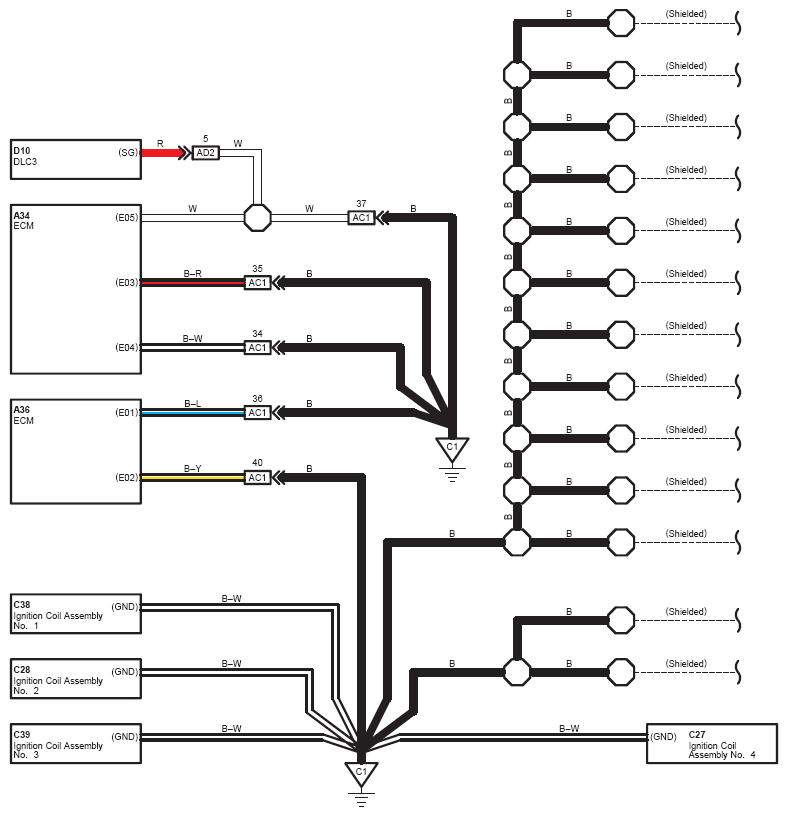

Fig 6: Ground Point Wiring Diagram (6 Of 7)

Fig 7: Ground Point Wiring Diagram (7 Of 7)
