OEM System Circuits: EPS: Notes

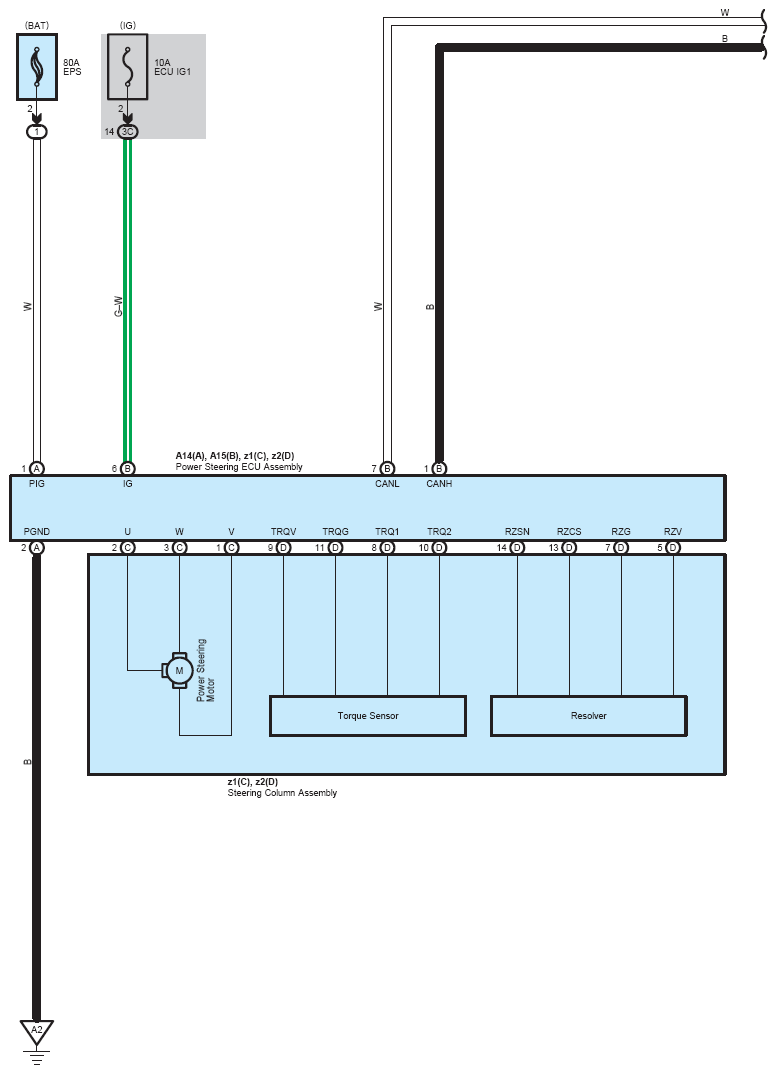

Fig 1: EPS - Wiring Diagram (1 Of 5)
G08774169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

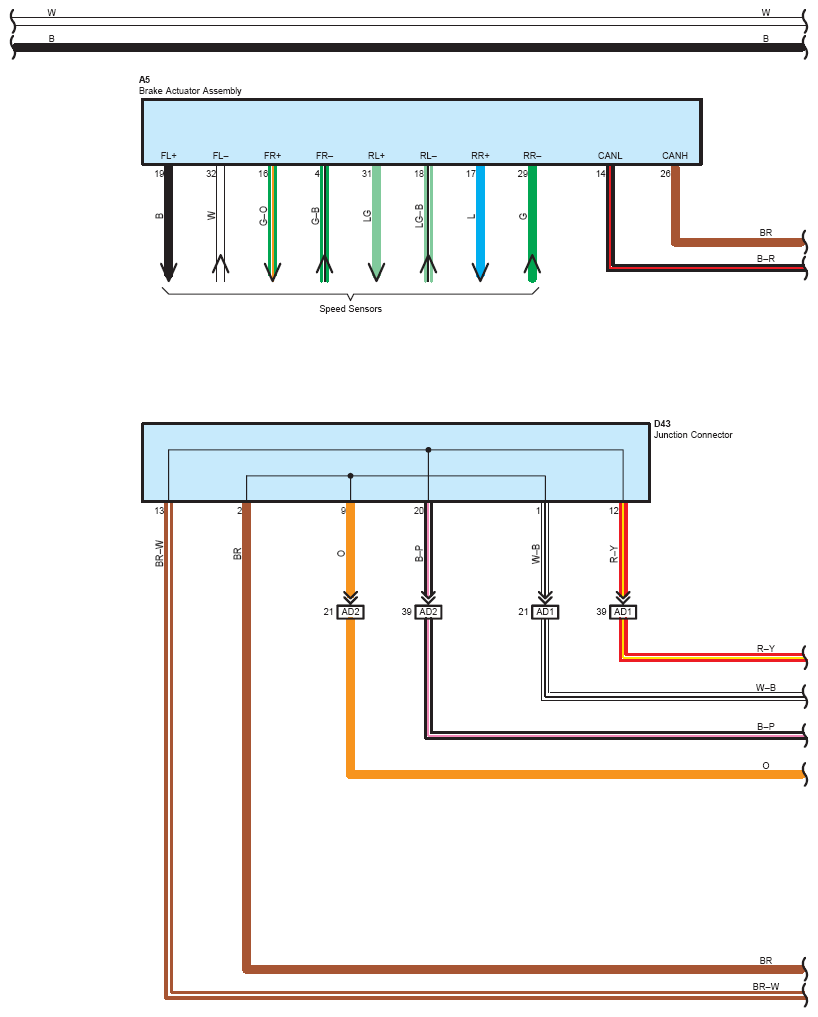

Fig 2: EPS - Wiring Diagram (2 Of 5)
G08774170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

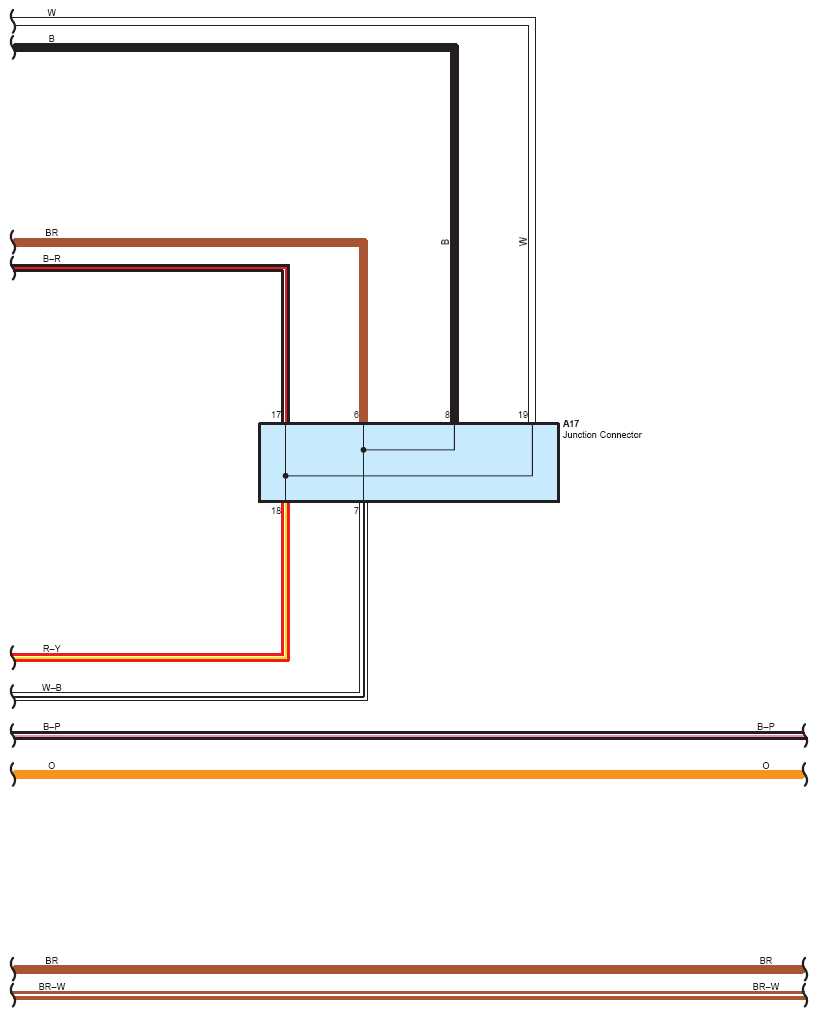

Fig 3: EPS - Wiring Diagram (3 Of 5)
G08774171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

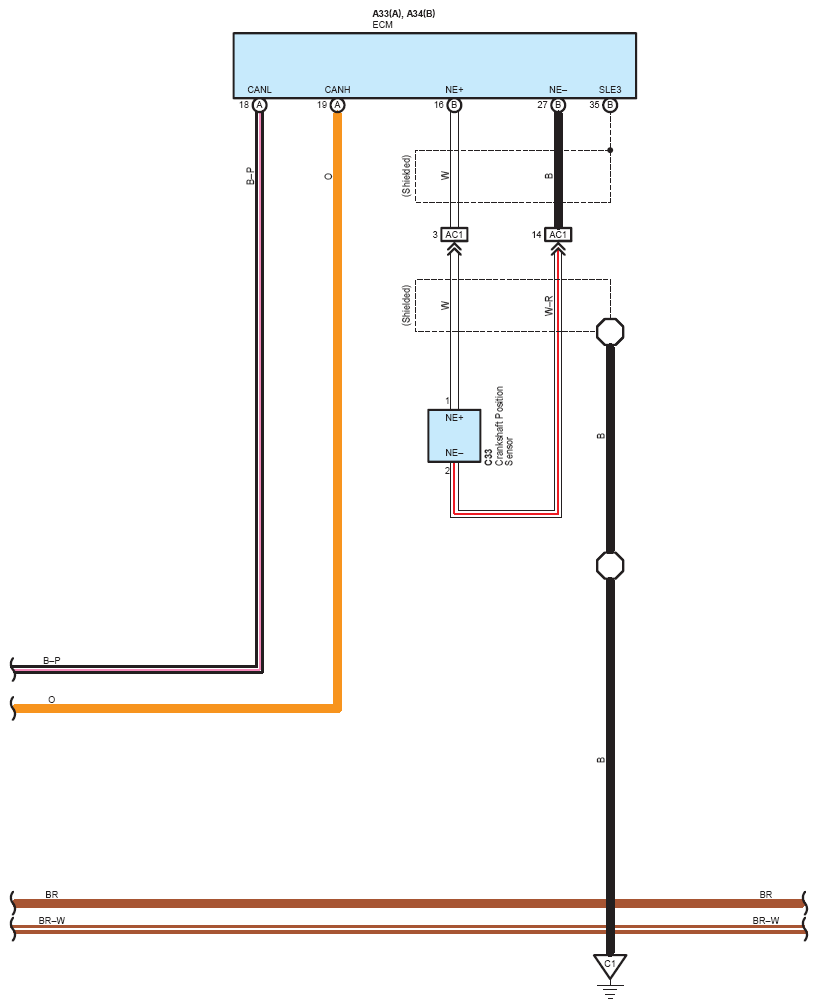

Fig 4: EPS - Wiring Diagram (4 Of 5)
G08774172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

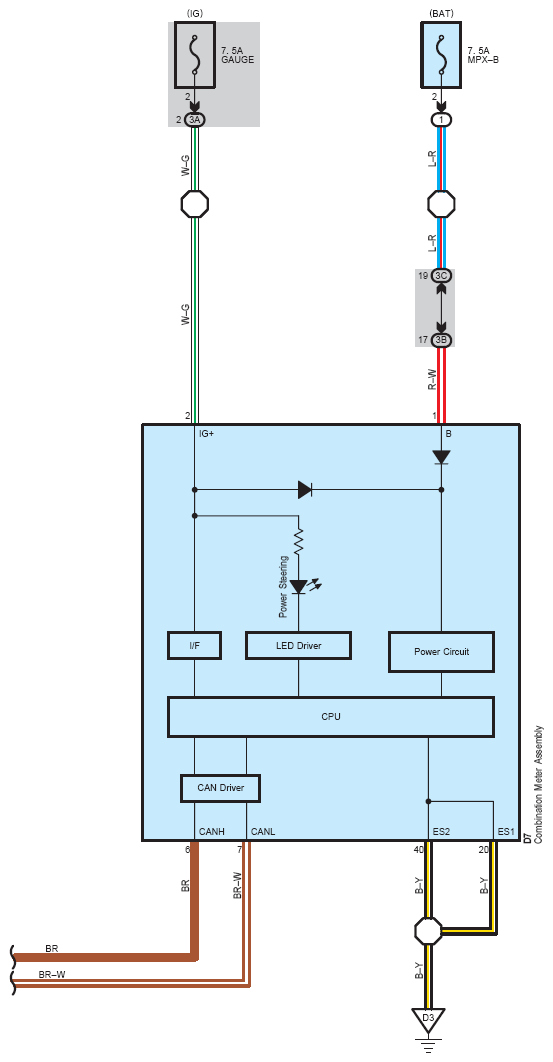

Fig 5: EPS - Wiring Diagram (5 Of 5)
G08774173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
