Illumination and Taillight: Notes

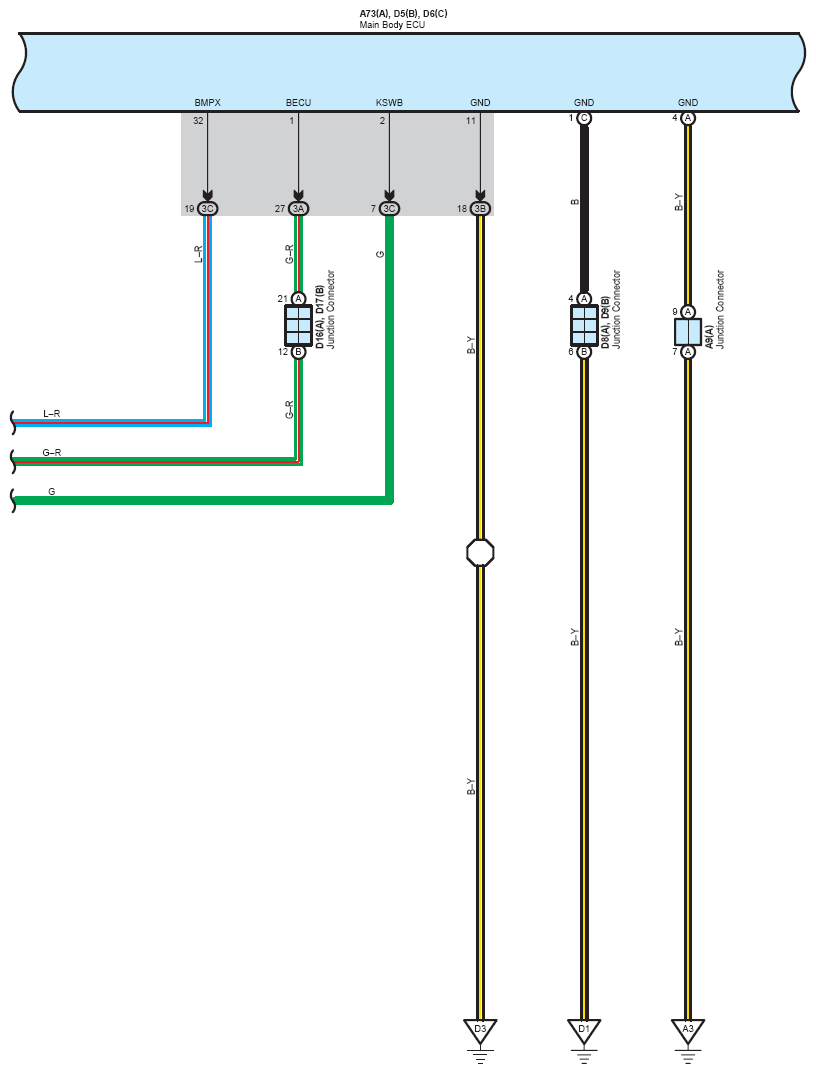

Fig 1: Illumination And Taillight - Wiring Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

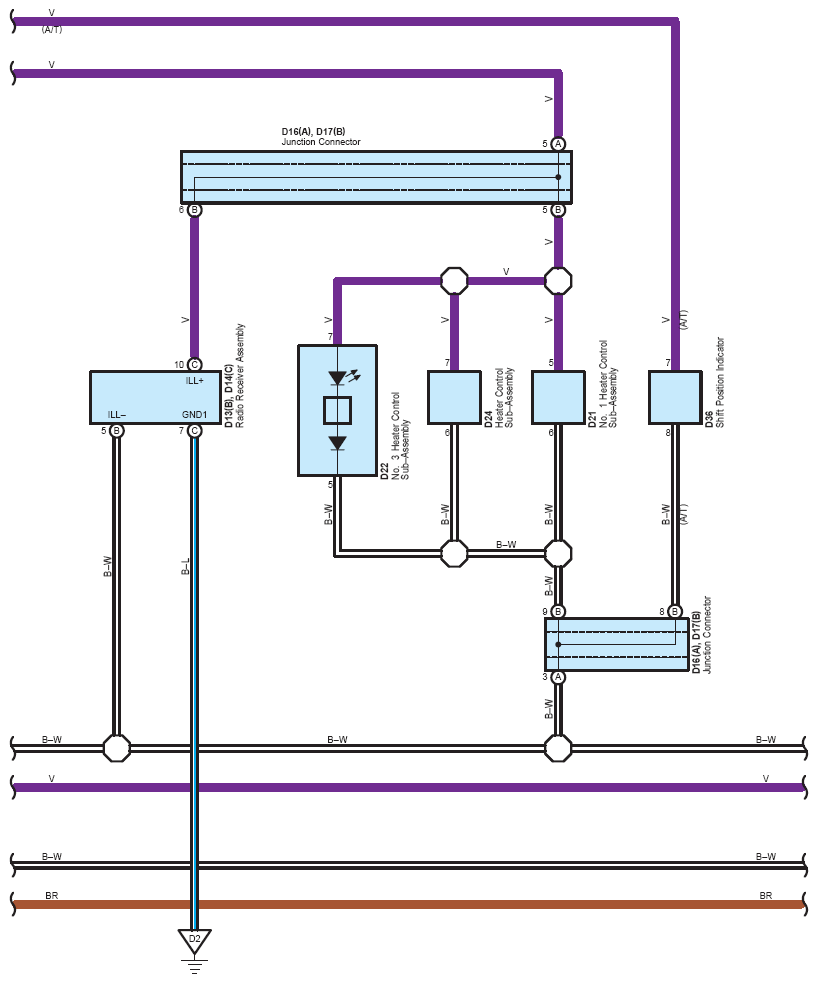

Fig 2: Illumination And Taillight - Wiring Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

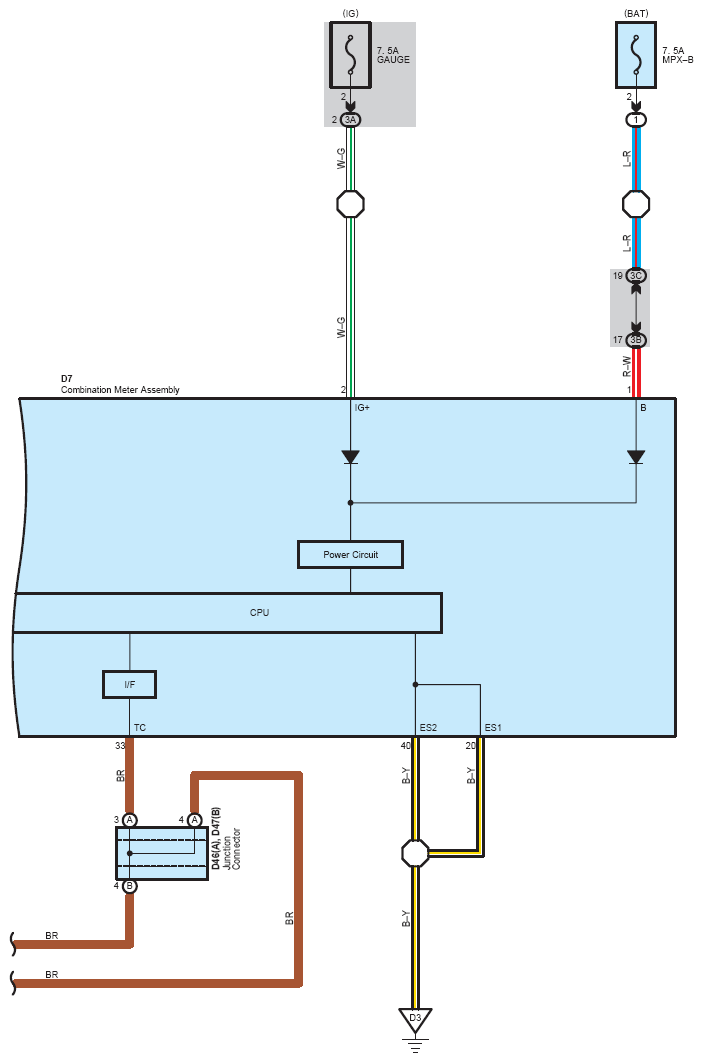

Fig 3: Illumination And Taillight - Wiring Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

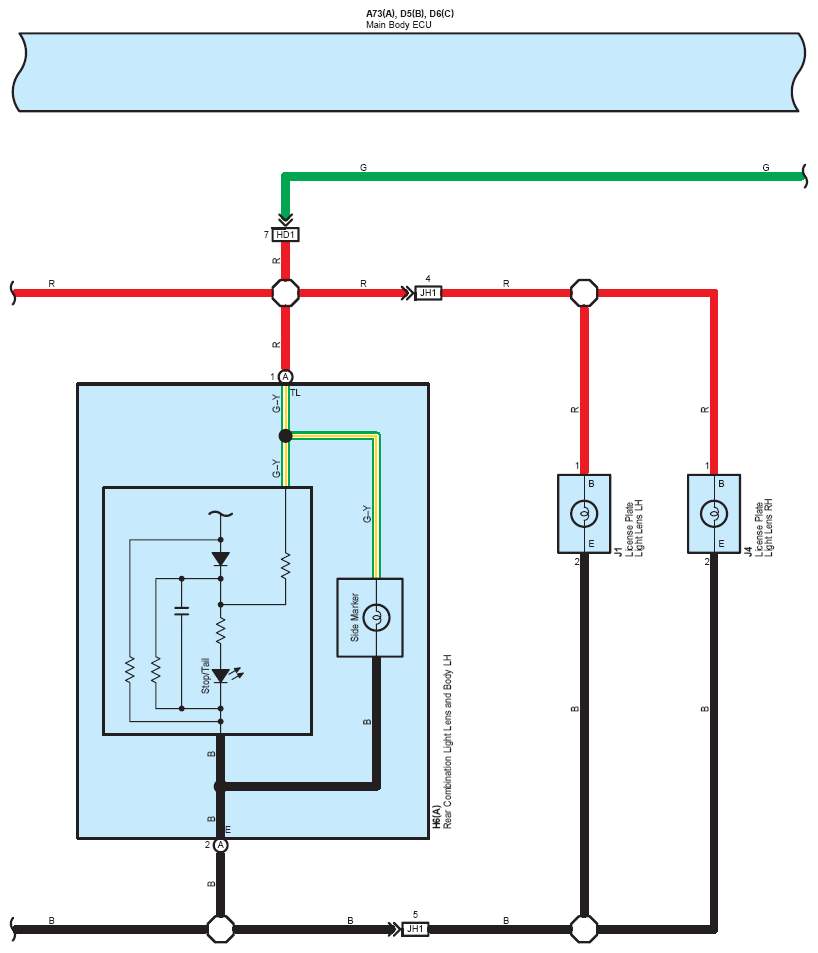

Fig 4: Illumination And Taillight - Wiring Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

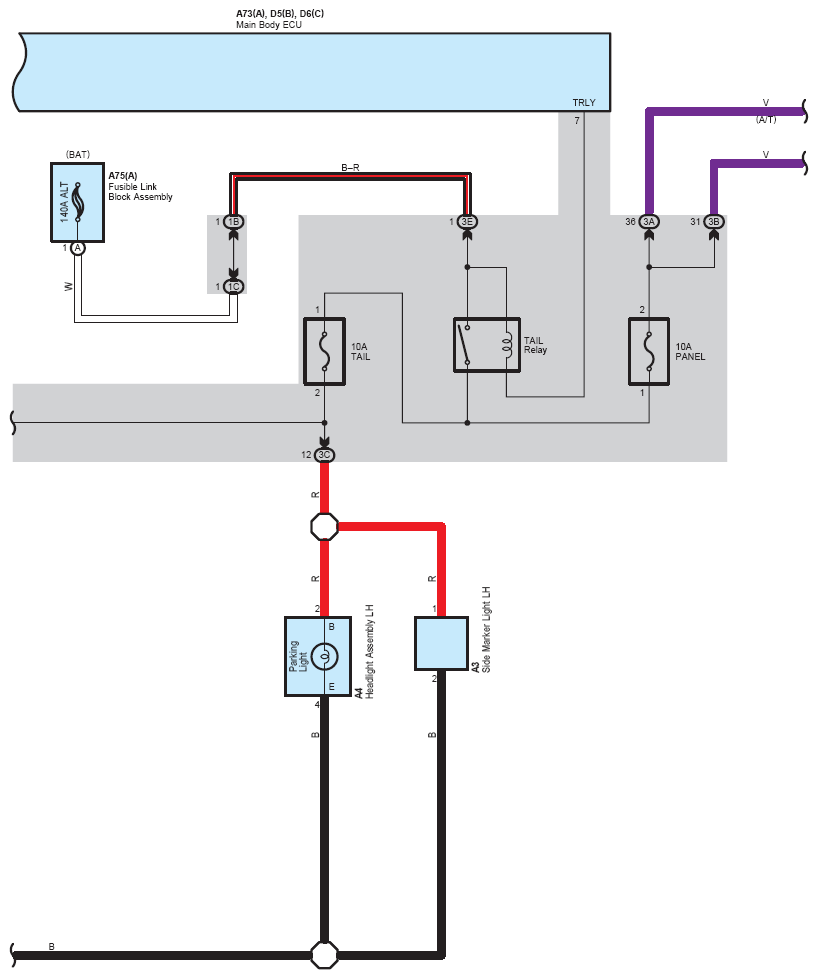

Fig 5: Illumination And Taillight - Wiring Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

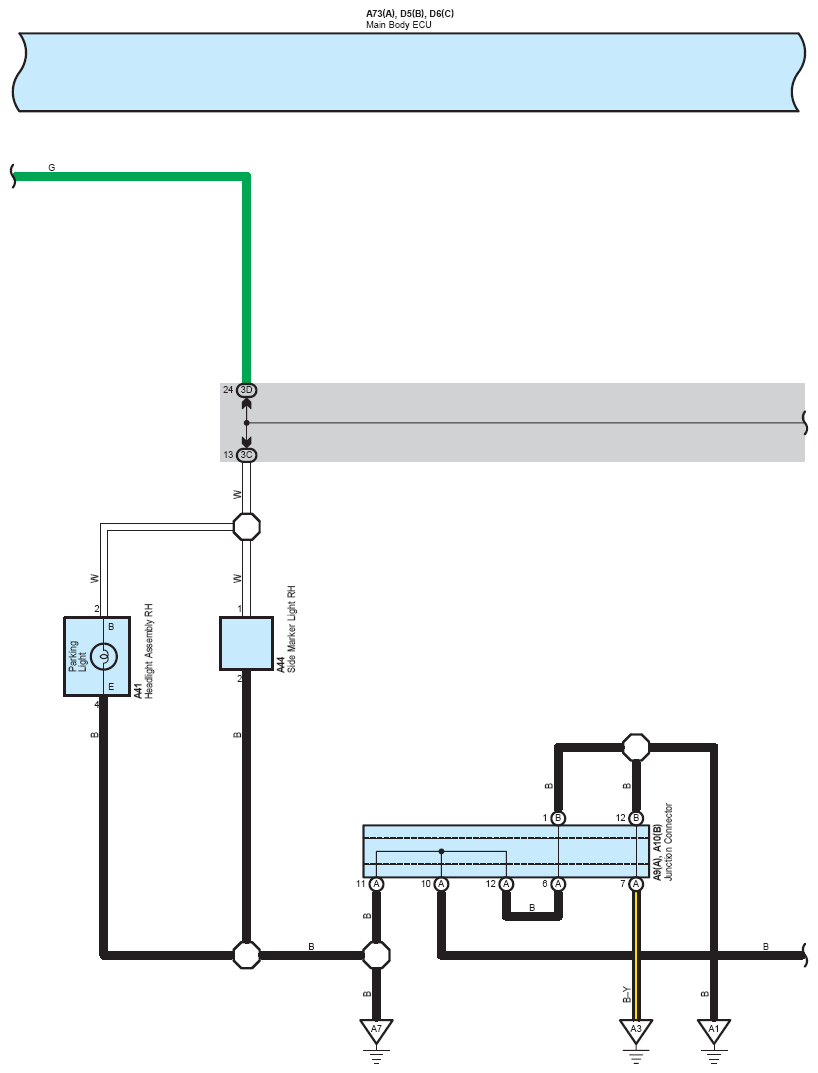

Fig 6: Illumination And Taillight - Wiring Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

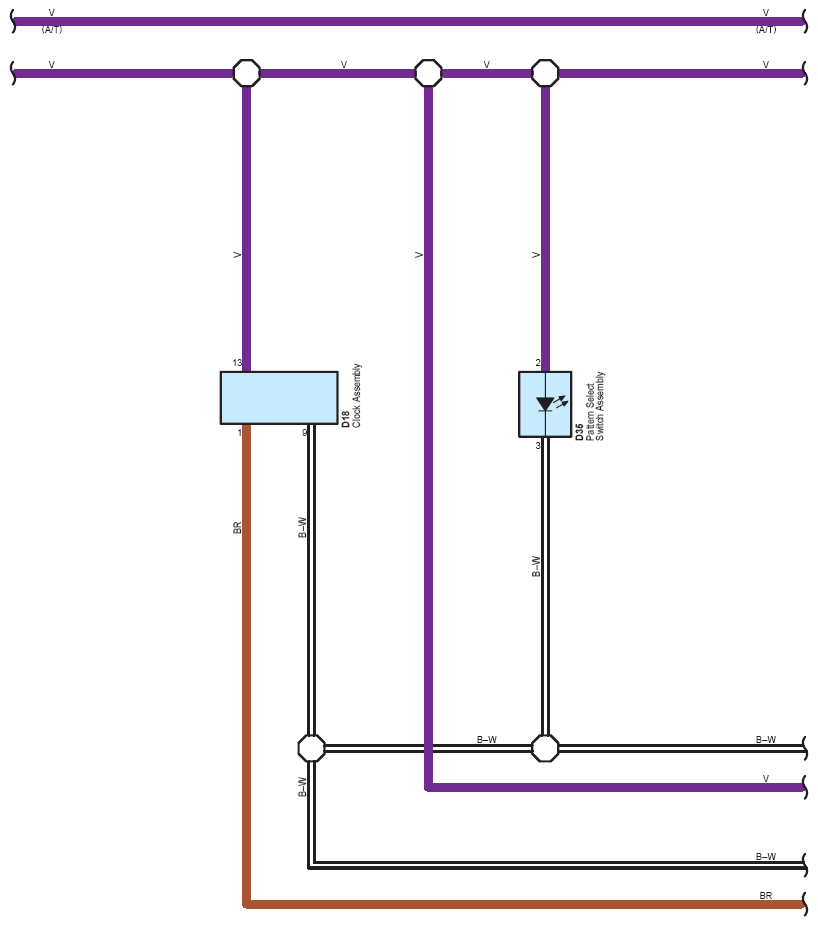

Fig 7: Illumination And Taillight - Wiring Diagram (7 Of 10)

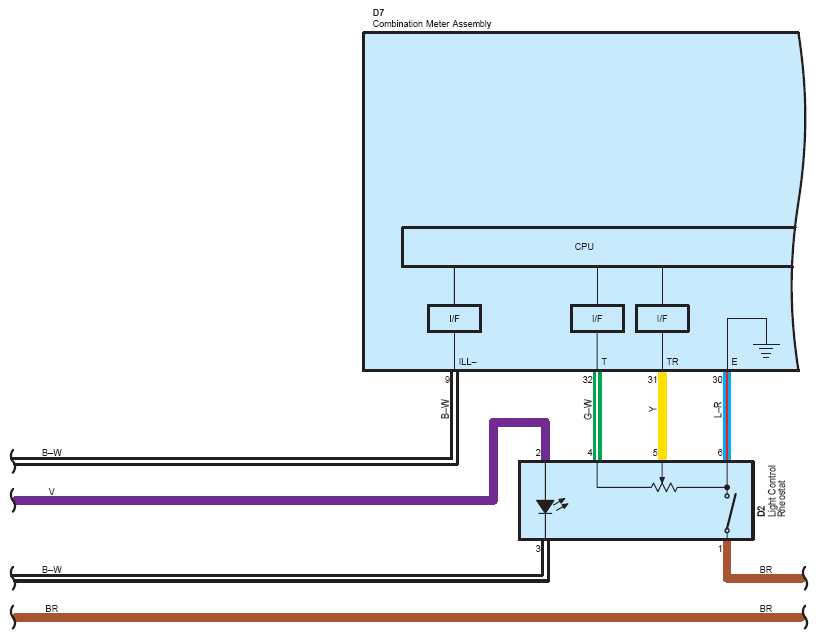

Fig 8: Illumination And Taillight - Wiring Diagram (8 Of 10)

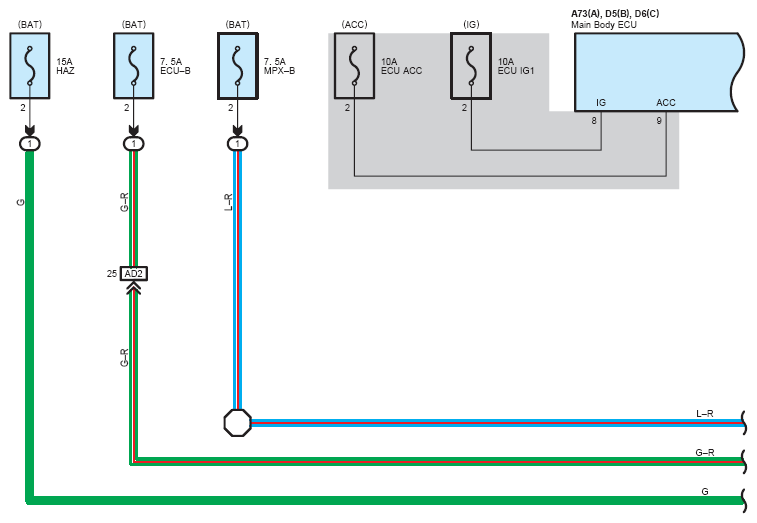

Fig 9: Illumination And Taillight - Wiring Diagram (9 Of 10)

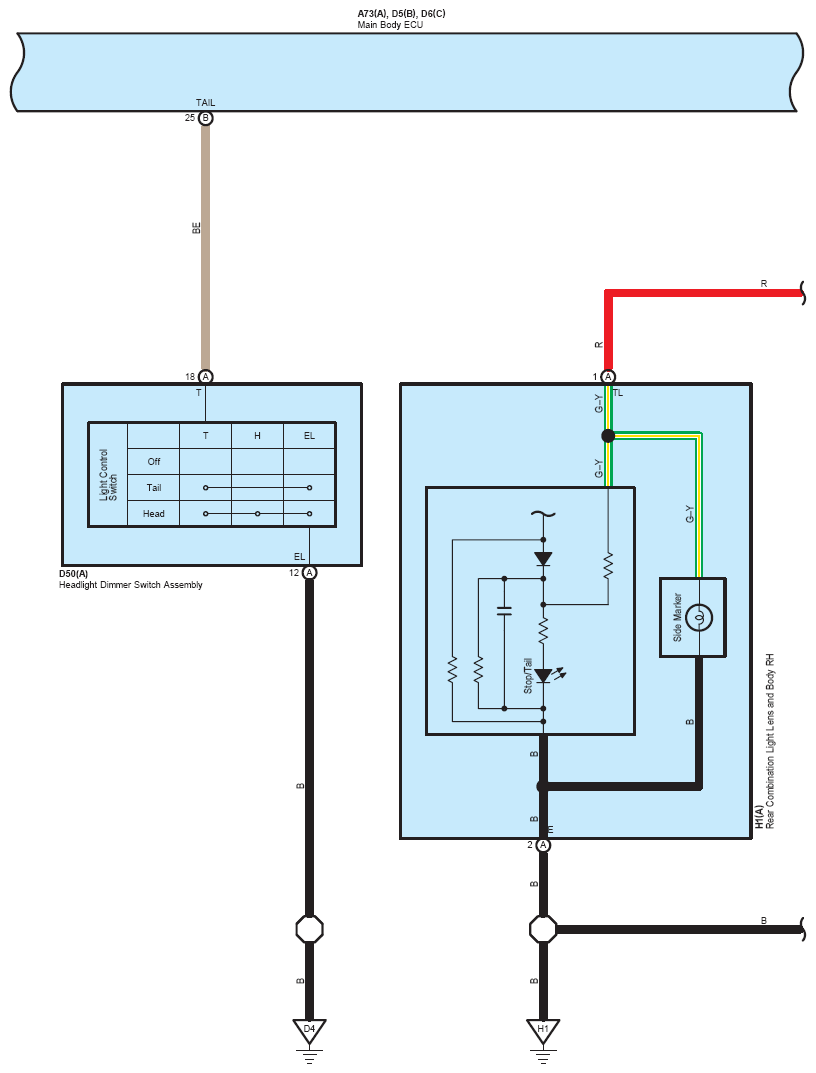

Fig 10: Illumination And Taillight - Wiring Diagram (10 Of 10)
