Tire Pressure Warning System: Notes

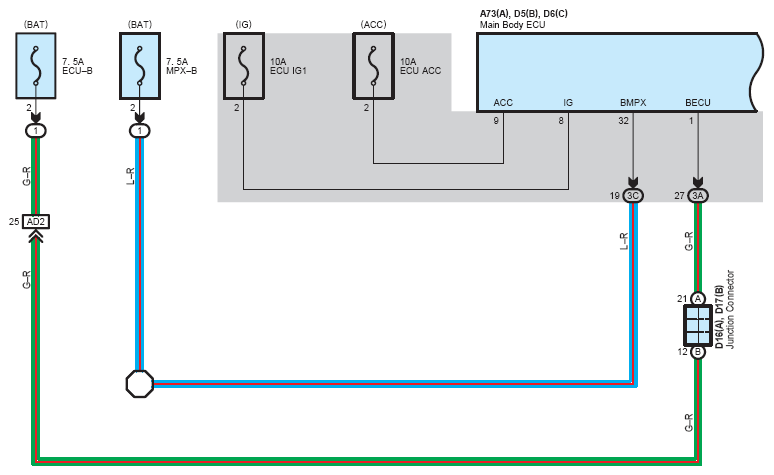

Fig 1: Tire Pressure Warning System - Wiring Diagram (1 Of 5)
G08774177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

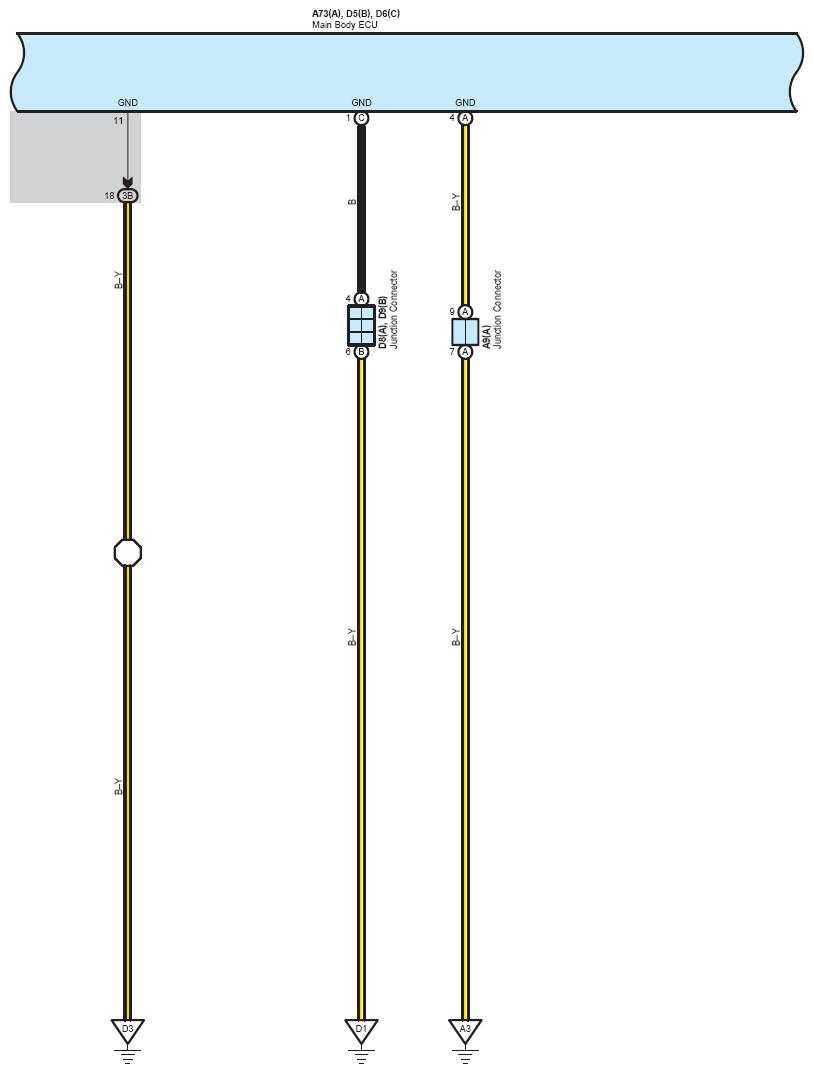

Fig 2: Tire Pressure Warning System - Wiring Diagram (2 Of 5)
G08774178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

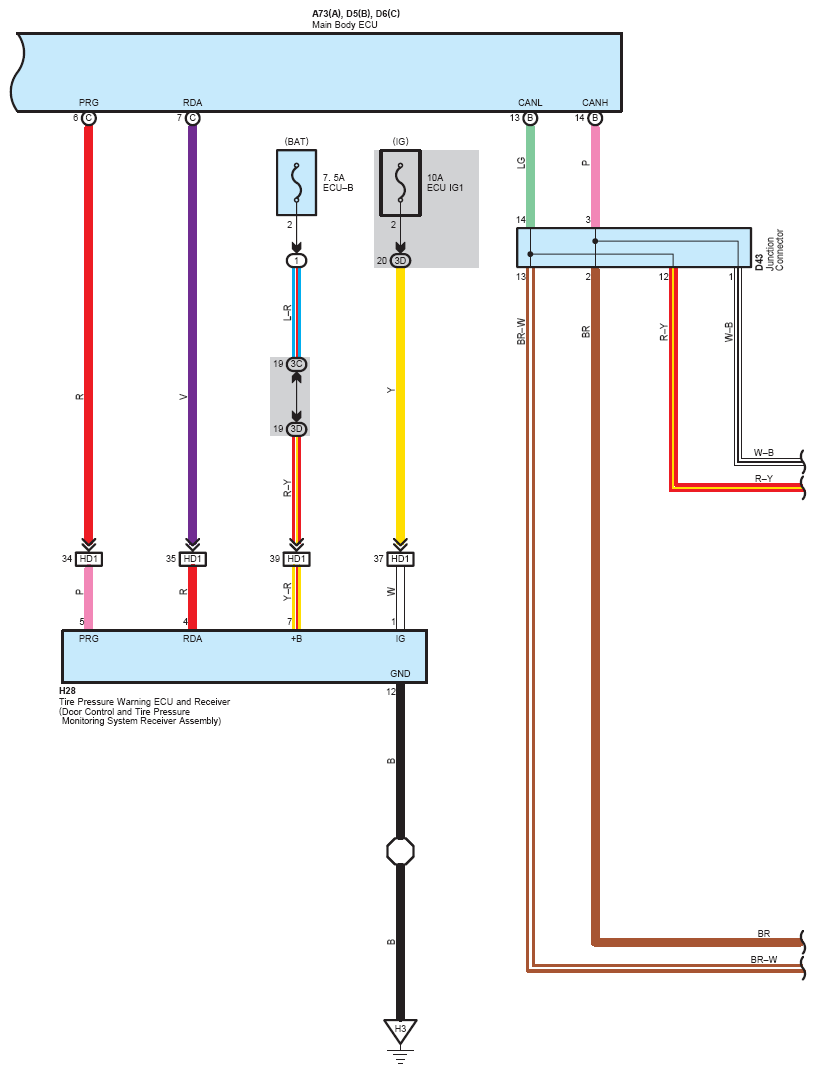

Fig 3: Tire Pressure Warning System - Wiring Diagram (3 Of 5)
G08774179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

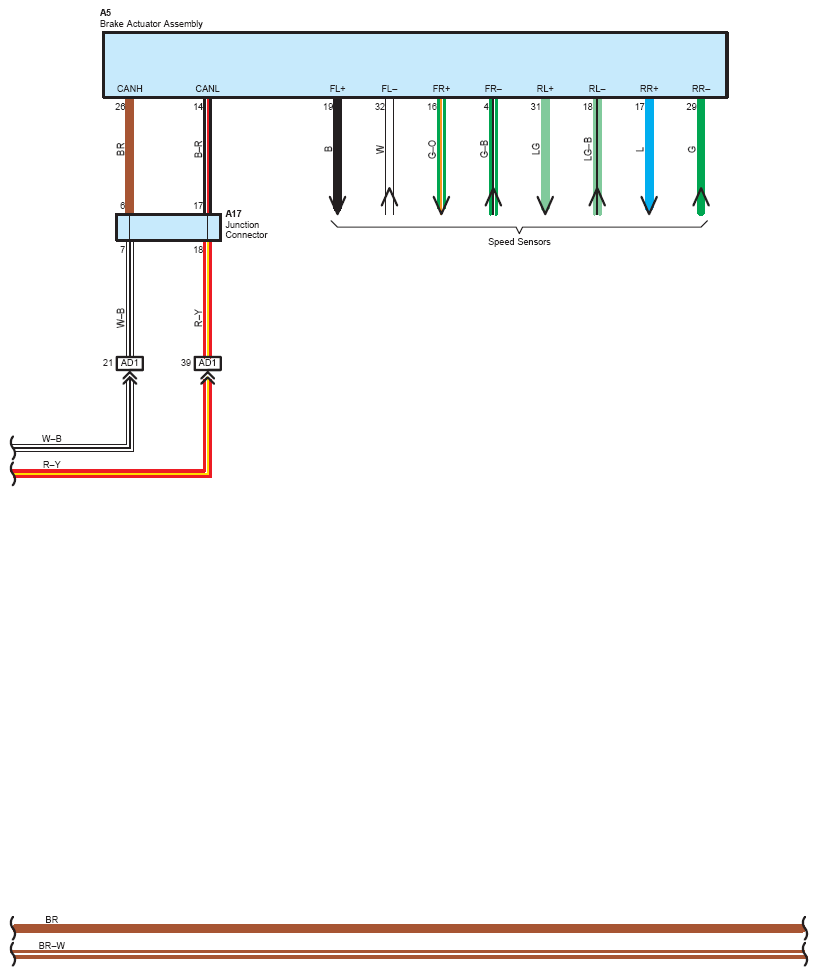

Fig 4: Tire Pressure Warning System - Wiring Diagram (4 Of 5)
G08774180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

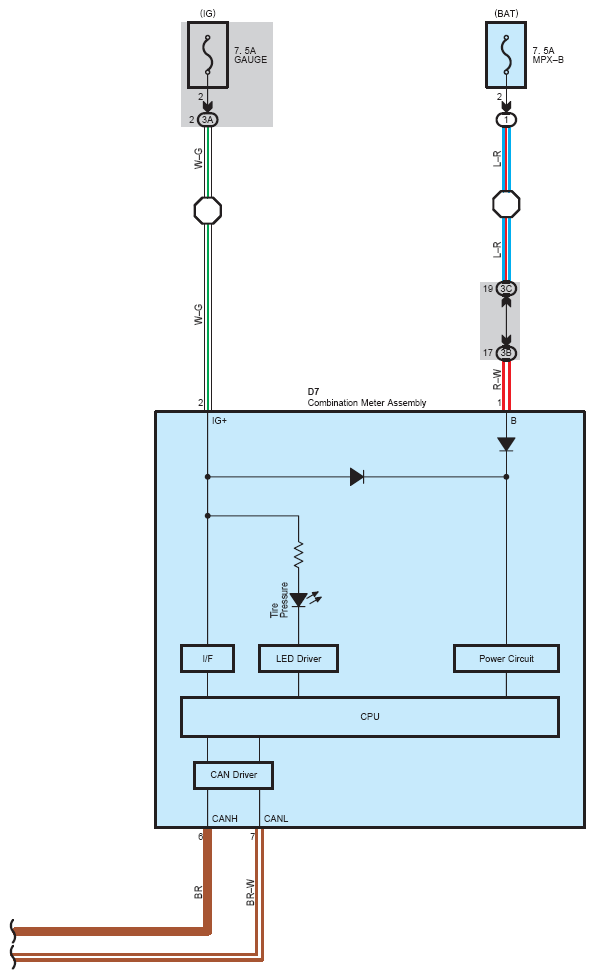

Fig 5: Tire Pressure Warning System - Wiring Diagram (5 Of 5)
G08774181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
