Section 13 (Plug-In Charge Control System (Diagnostics Introduction) (Electric))
›
Plug-In Charge Control System
›
Parts Location
›
Illustration
Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

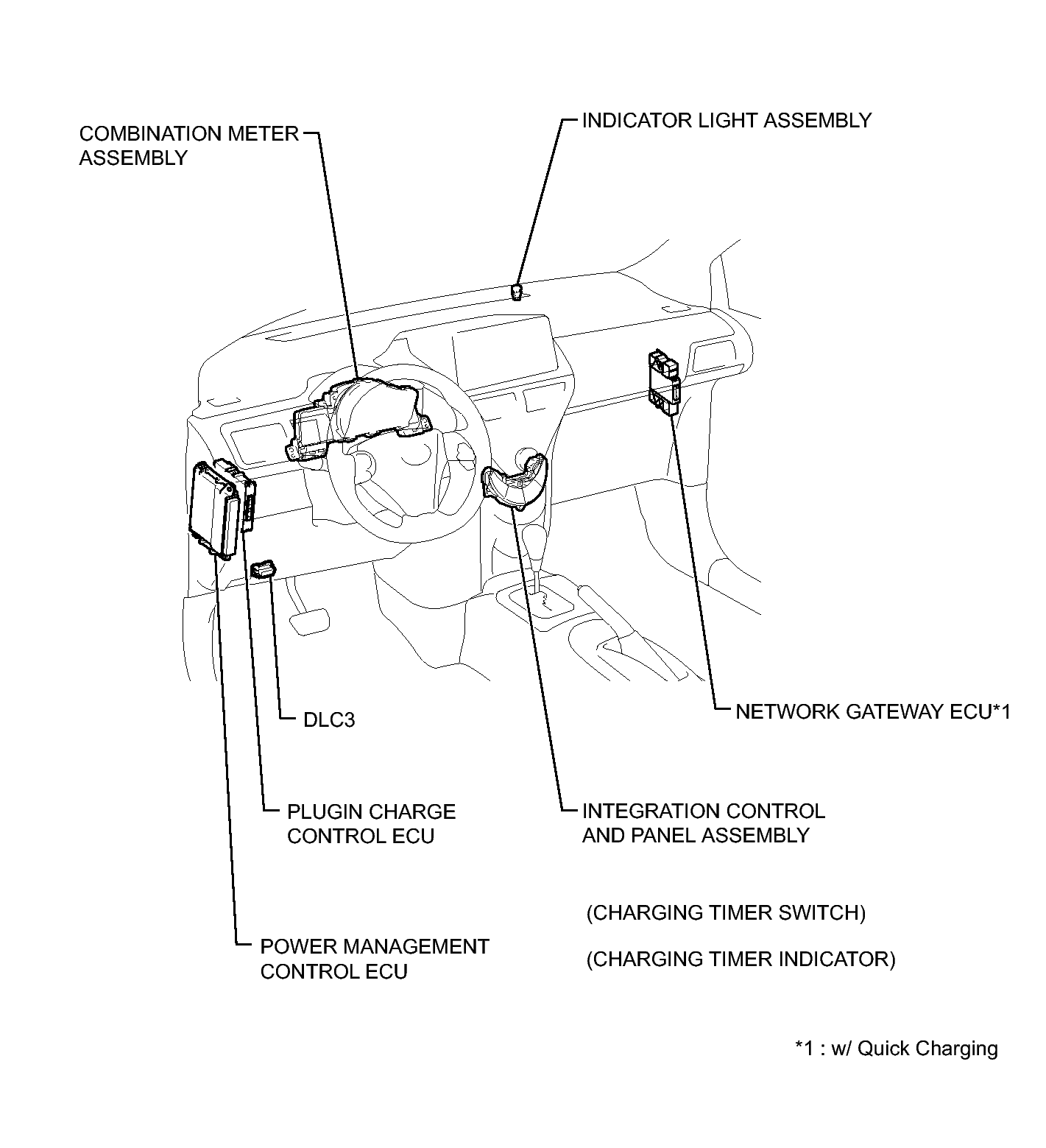

Fig 1: Identifying Plug-In Charge Control System Replacement Components Location (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

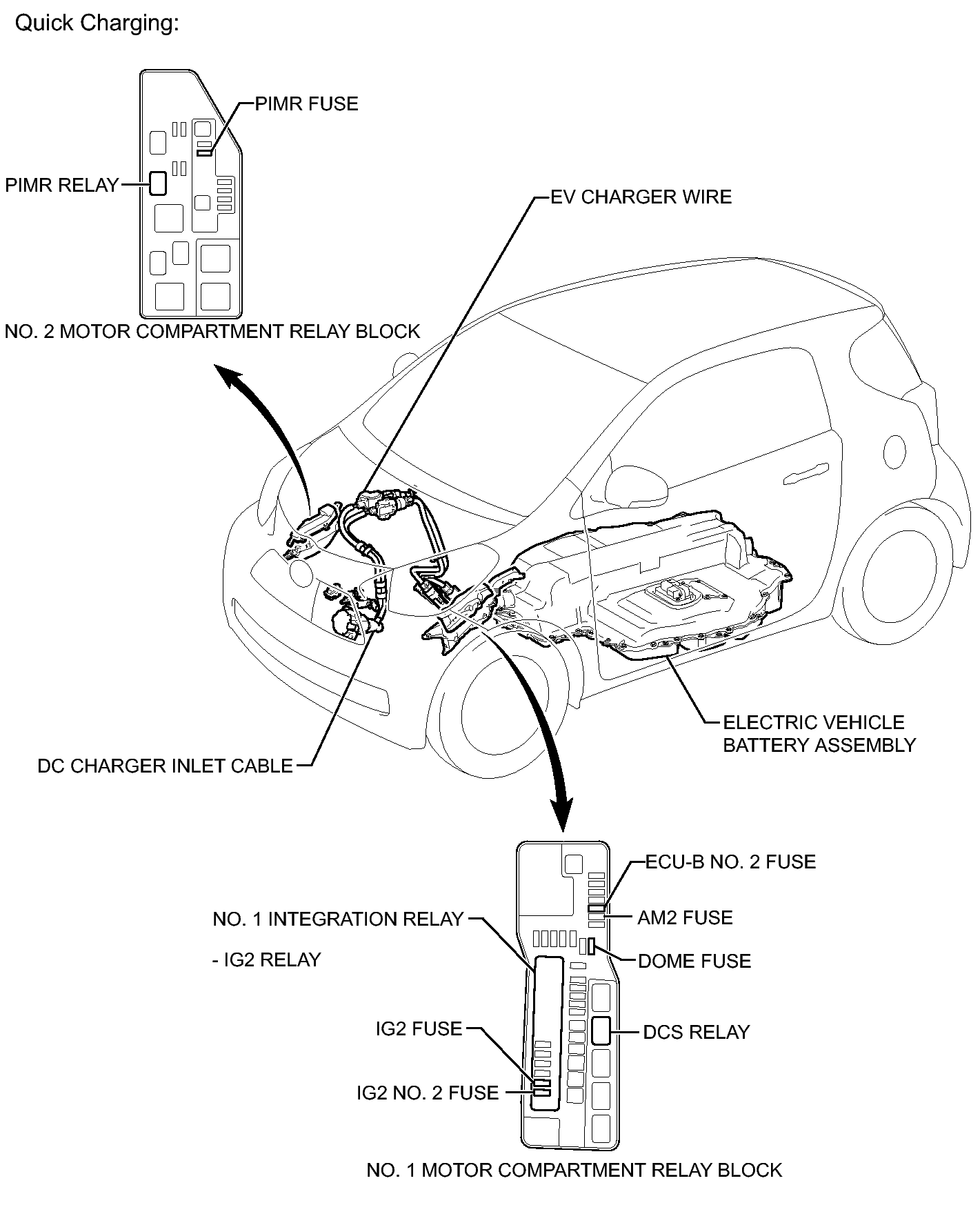

Fig 1: Identifying Plug-In Charge Control System Replacement Components Location (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

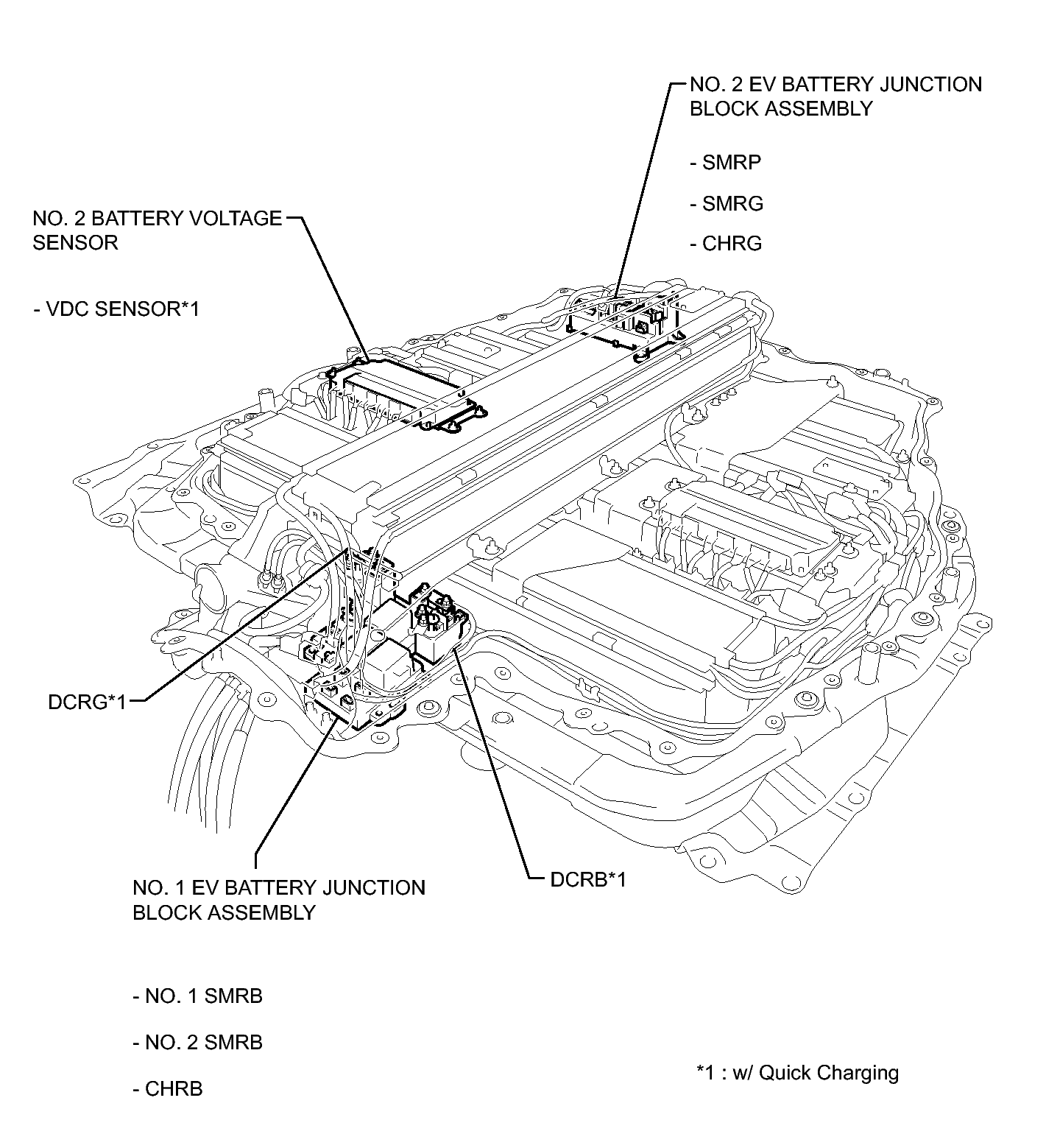

Fig 1: Identifying Plug-In Charge Control System Replacement Components Location (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

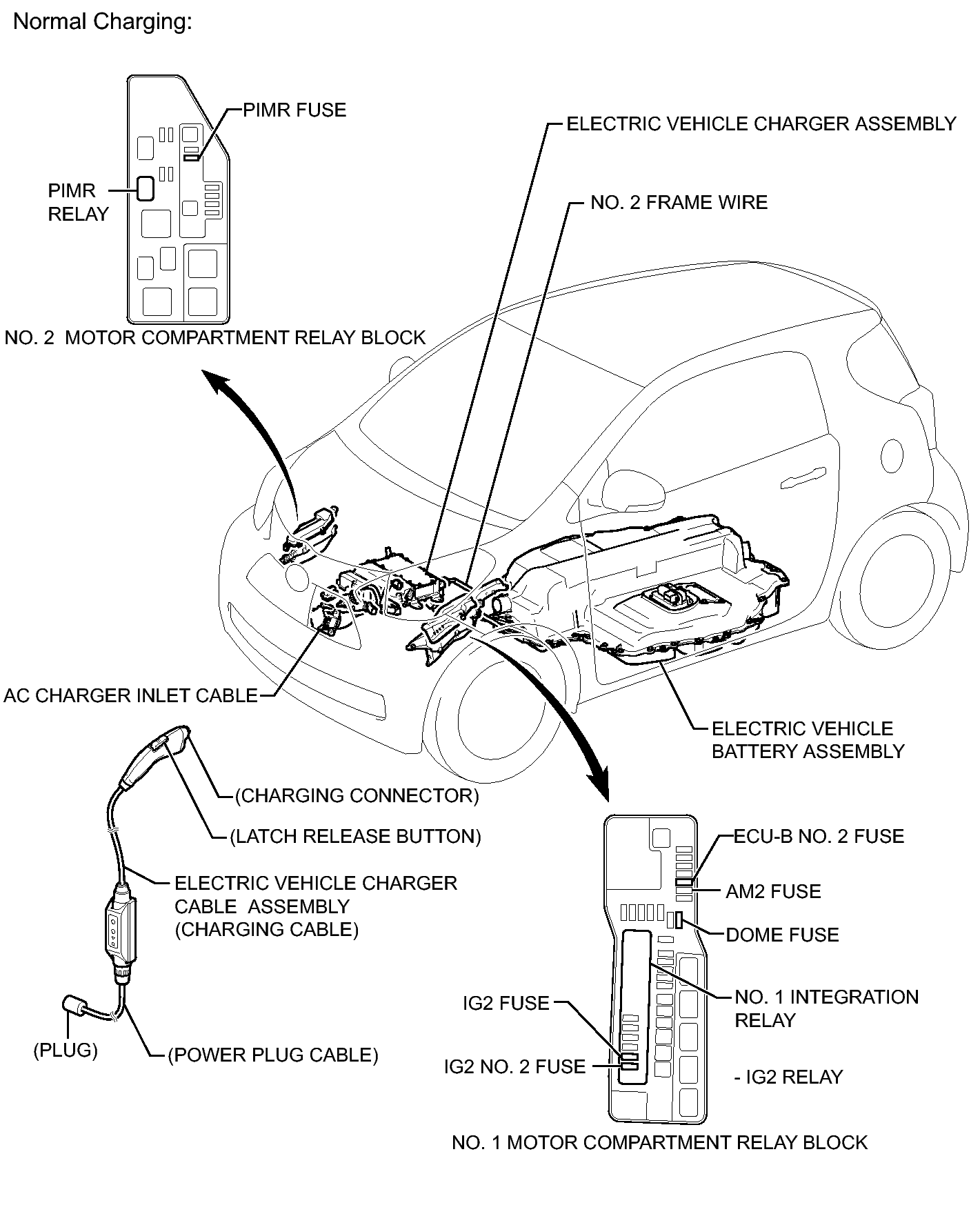

Fig 1: Identifying Plug-In Charge Control System Replacement Components Location (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
