Rear Wiper and Washer: Notes

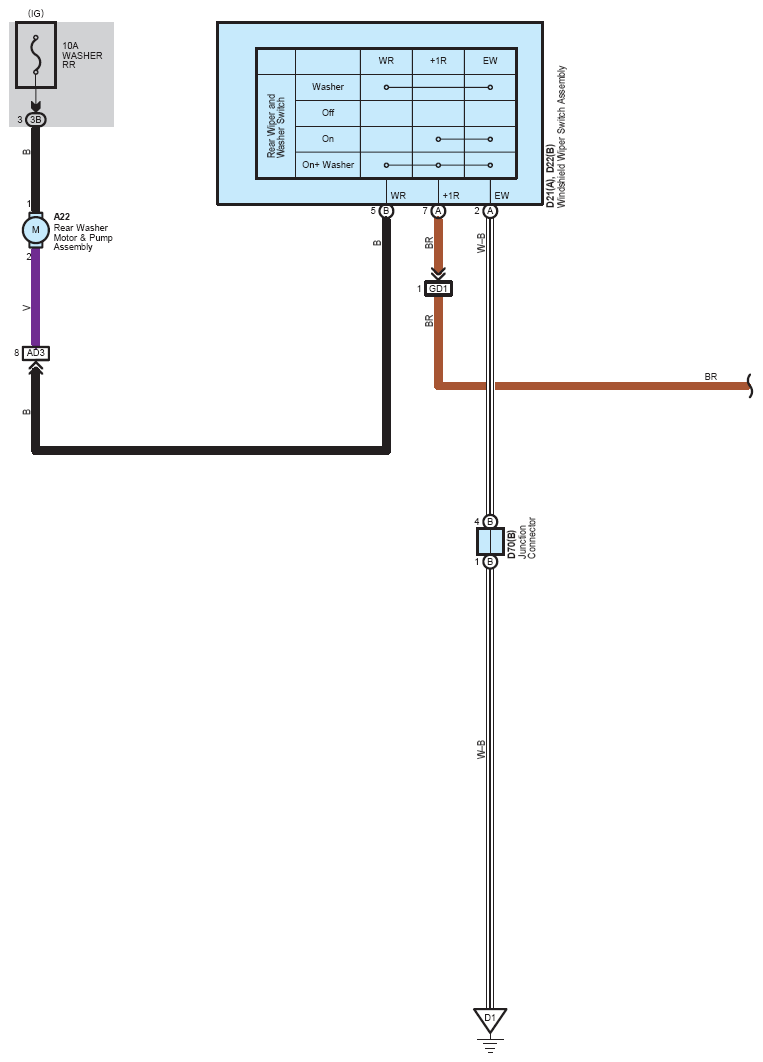

Fig 1: Rear Wiper And Washer - Wiring Diagram (1 Of 2)
G08774715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

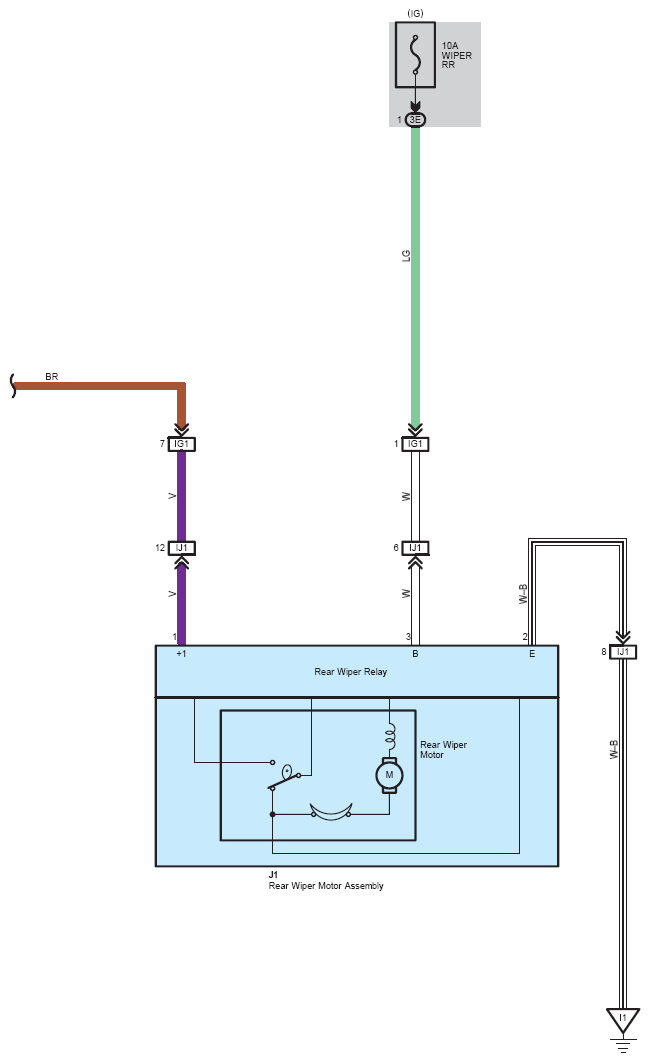

Fig 2: Rear Wiper And Washer - Wiring Diagram (2 Of 2)
G08774716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
