Remote Control Mirror: Notes

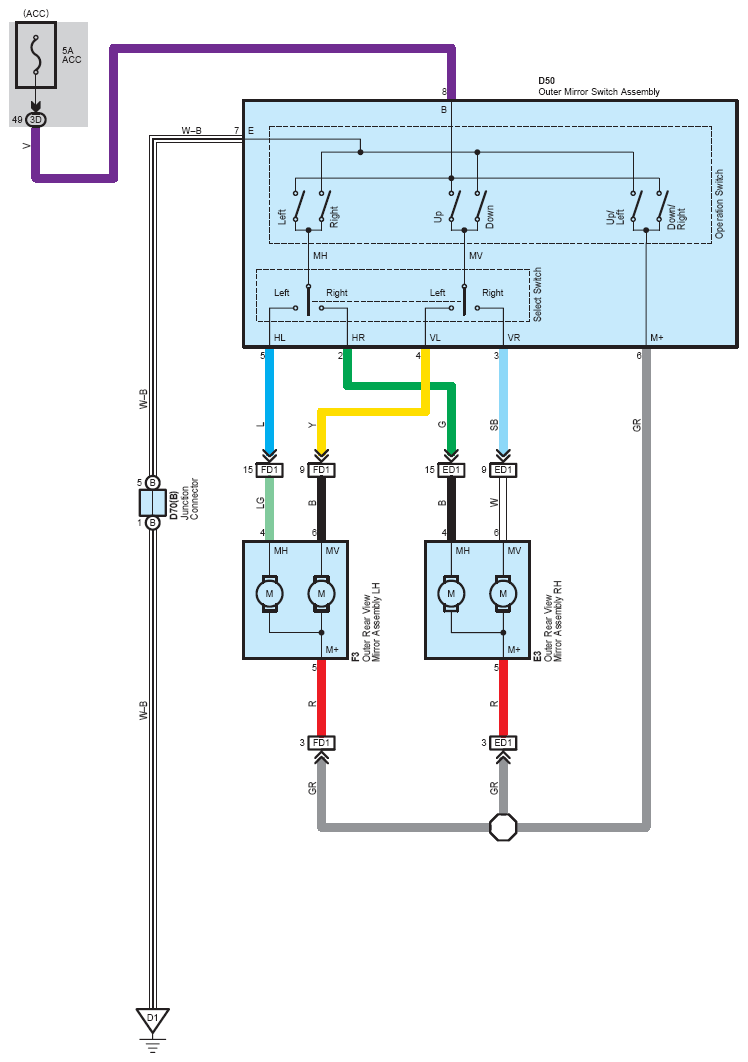

Fig 1: Remote Control Mirror - Wiring Diagram

G08774717

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
