Home › Scion › 2013 › iQ Base › Repair and Diagnosis › Electrical › Body Electrical › OEM System Circuits › Stop Light › Notes

Stop Light: Notes

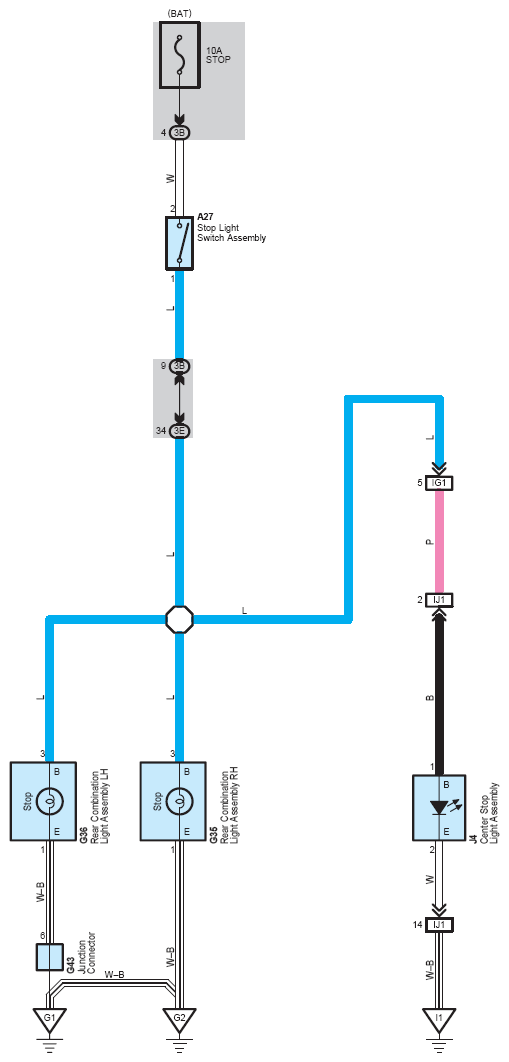

Fig 1: Stop Light - Wiring Diagram
G08774676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
