Engine Immobilizer System (w/o Smart Key System)
›
Notes
Engine Immobilizer System (w/o Smart Key System): Notes

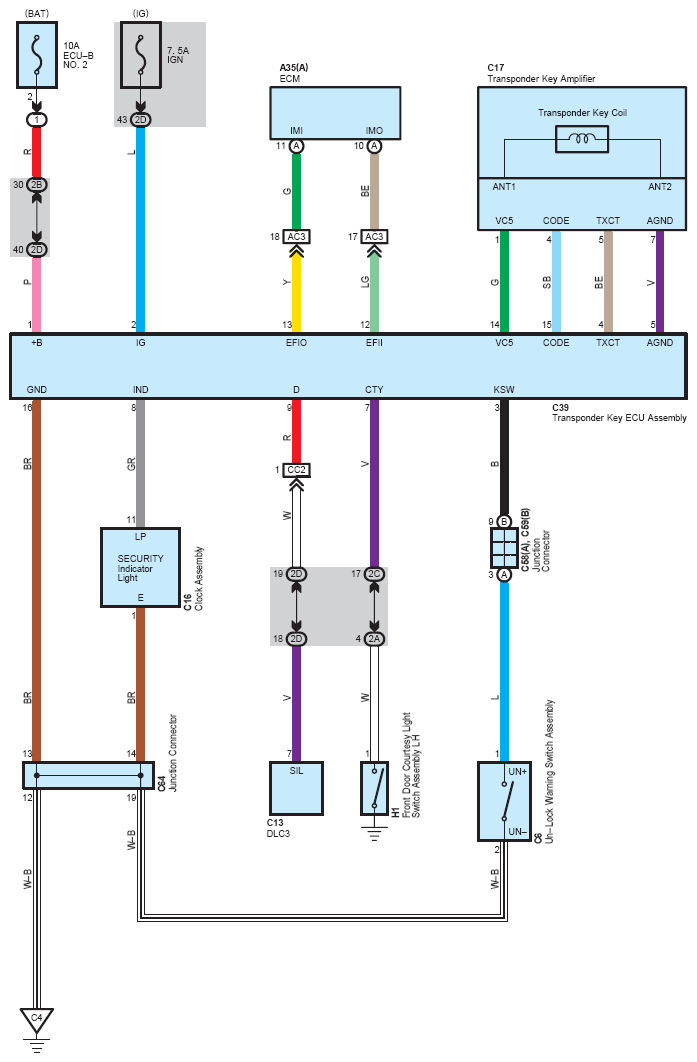

Fig 1: Engine Immobilizer System (W/O Smart Key System) - Wiring Diagram
