Front Wiper and Washer: Notes

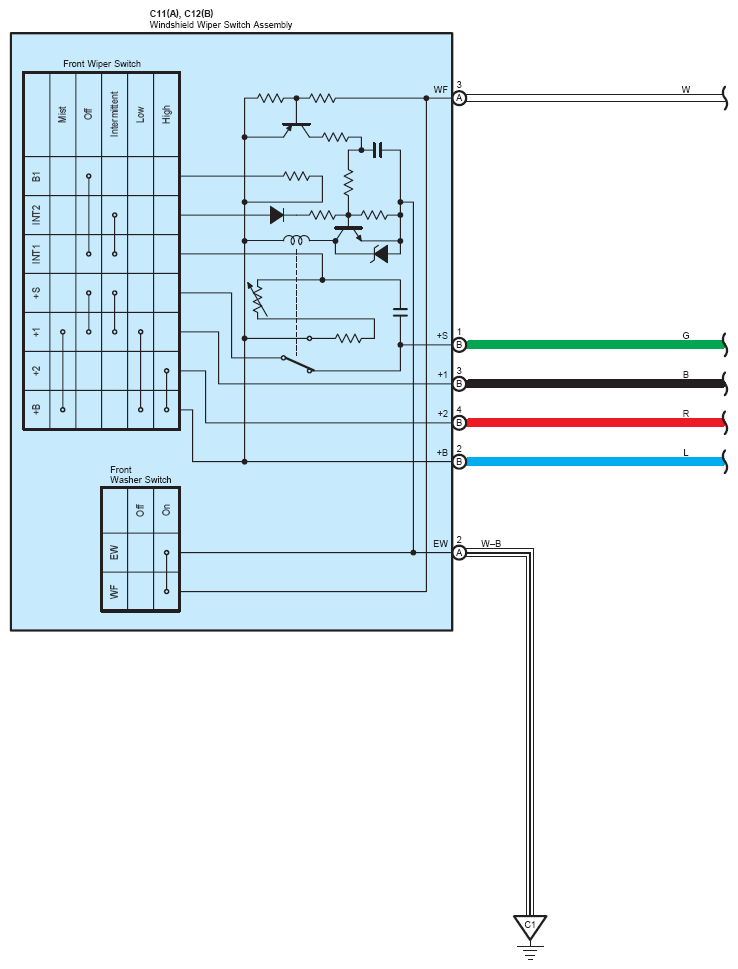

Fig 1: Front Wiper And Washer - Wiring Diagram (1 Of 2)
G08775159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

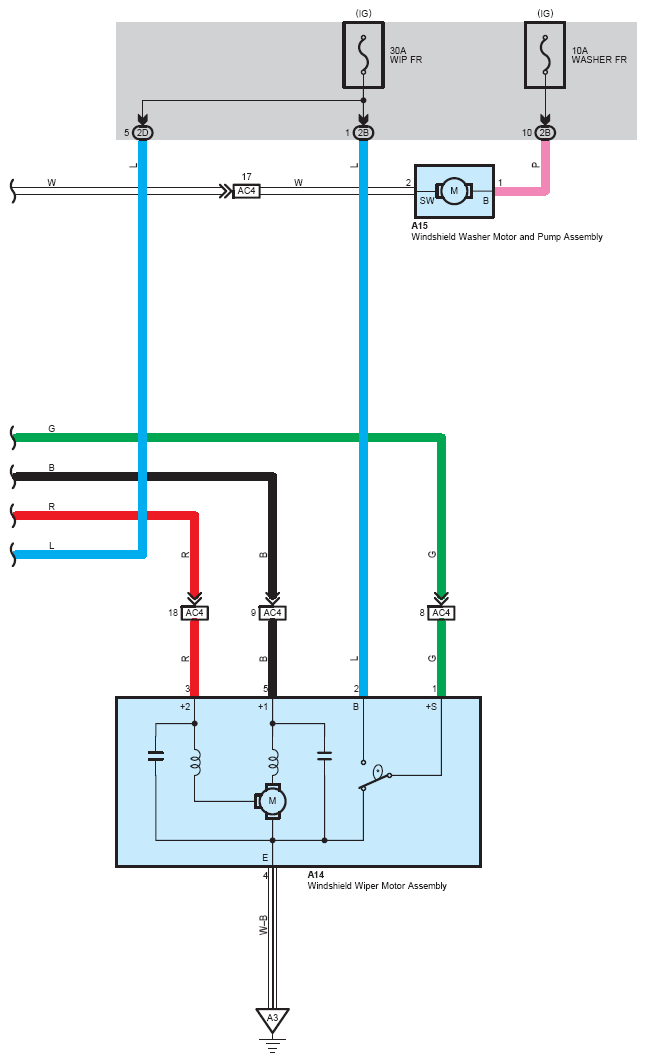

Fig 2: Front Wiper And Washer - Wiring Diagram (2 Of 2)
G08775160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
