Seat Heater: Notes

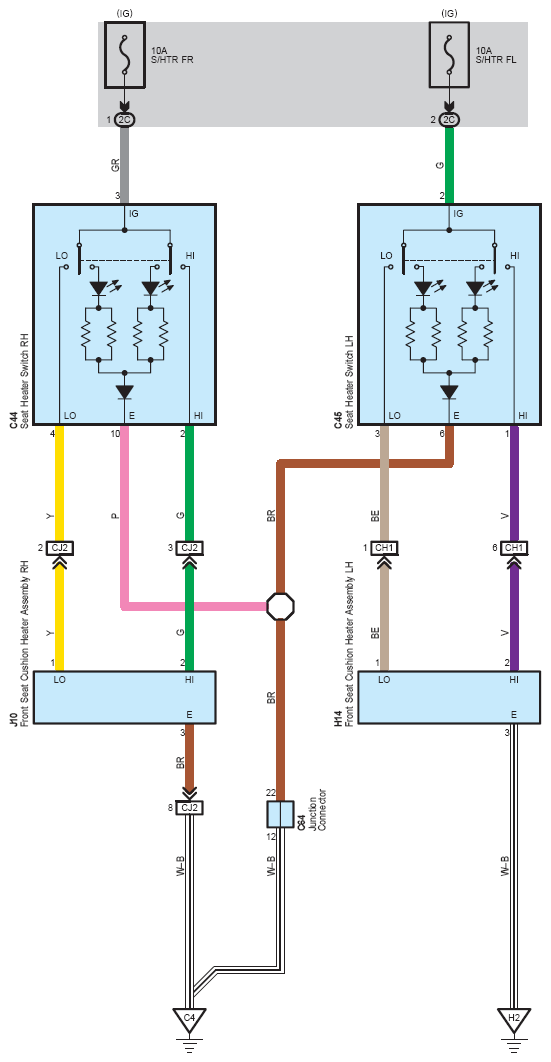

Fig 1: Seat Heater - Wiring Diagram
G08775166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
